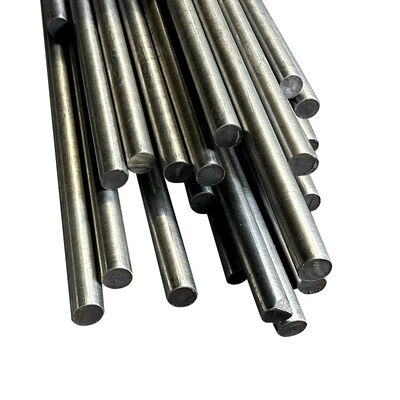

Aerospace-Grade Nimonic 90 Round Bar 15mm Diameter Nickel Alloy Round Bar for Turbine Blades

Vacuum-refined precipitation-hardened nickel-chromium-cobalt superalloy round bar (15mm diameter), engineered specifically for high-stress aerothermal environments, gas turbine rotor blades, and high-temperature structural fasteners.

The Nimonic 90 Nickel Alloy Round Bar 15mm combines a high nickel-chromium base with approximately 18% cobalt and balanced titanium-aluminum additions to form a stable gamma-prime (γ′) precipitation-strengthening matrix. In aerospace gas turbine assemblies and industrial turbomachinery, rotor blades and high-pressure turbine vanes operate in continuous thermo-mechanical fatigue environments where conventional stainless steels and basic nickel alloys suffer rapid grain boundary deformation and thermal oxidation.

Our centerless ground 15mm bars feature ultra-clean internal microstructures, zero centerline segregation, and uniform grain sizing. Available in fully solution-treated or aged tempers, DLX Nimonic 90 bars provide consistent forgeability, tight dimensional repeatability for multi-axis CNC machining, and long-term surface integrity in severe oxidizing and sulfidizing atmospheres.

• Superior High-Temperature Creep Strength: The high-volume fraction of coherent gamma-prime precipitate (Ni3(Ti,Al)) maintains dislocation pinning at operating temperatures exceeding 850°C, preventing dimensional deformation under continuous rotational loads.
• Cobalt-Matrix Thermal Stability: An optimized 15–21% Cobalt addition raises the gamma-prime solvus temperature and enhances lattice cohesion, ensuring structural stability under cyclical thermal shocks.
• High-Purity Double-Melt Processing: Refined through primary vacuum induction melting followed by secondary vacuum consumable remelting, minimizing non-metallic inclusions, microporosity, and trace deleterious elements.
• Corrosion & Combustion Gas Resistance: Generates a self-passivating, dense chromia-rich (Cr2O3) protective barrier that resists degradation from sulfurous flue gases, hot air, and oxidation.
• Consistent Multi-Axis Machinability: Precision cold-finished and straightness-inspected to guarantee chatter-free EDM wire cutting, deep-hole drilling, and profile milling for complex airfoil roots.

• Aerospace Propulsion Systems: High-pressure and intermediate-pressure turbine rotor blades, stator guide vanes, disc rim bolts, and afterburner structural rings.
• Industrial & Marine Gas Turbines: Heavy-duty power generation turbine blading, nozzle guide vanes, exhaust duct components, and combustion chamber hardware.
• High-Temperature Fasteners & Hardware: Extreme-duty aerospace studs, high-tensile hot bolts, turbine casing pins, and clamping collars subjected to thermal cycling.
• High-Performance Springs & Valves: Hot-working die springs, exhaust valve assemblies in high-output marine diesels, and turbocharger rotor shafts.
• Nuclear & Thermal Processing: Core reactor tie rods, heat-treatment furnace hearth fixtures, and high-stress thermocouple thermowells.

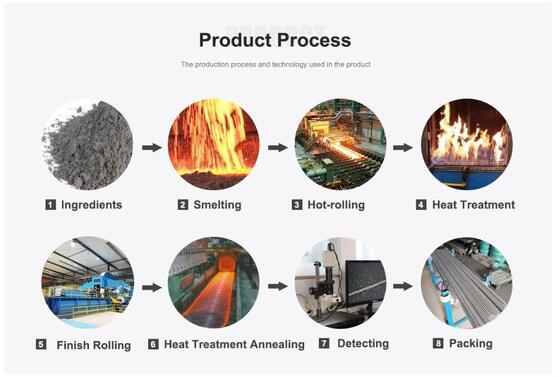

• 1,200 Tons Monthly Manufacturing Capacity: Changzhou DLX Alloy operates fully integrated vacuum melting, rapid-frequency induction forging, precision rolling, and continuous cold-drawing facilities with a steady 1,200 tons/month output.
• Comprehensive In-House Metallurgical Testing: Every batch of 15mm Nimonic 90 bars undergoes automated immersion ultrasonic non-destructive testing, optical emission spectrometry (OES), tensile-creep testing, and microstructural grain size verification.
• Full Batch Traceability & Mill Certification: Complete material tracking from virgin charge formulation to final centerless grinding, supplied with exhaustive chemical analysis, heat treatment reports, and dimensional inspection sheets.
• Custom Supply Flexibility: Available in standard straight lengths (1,000mm – 6,000mm) or customized pre-cut slugs, with tailored solution-annealed or fully precipitation-aged conditions based on specific blueprint machining requirements.

Q1: What delivery condition is recommended for machining 15mm Nimonic 90 round bars into turbine blades?

 A: For complex blade milling, contour turning, or drilling, we generally supply bars in the Solution-Treated condition (approx. 1080°C followed by air cooling). In this state, the alloy has lower hardness and superior chip-breaking characteristics. Once rough and semi-finish machining is complete, components can undergo precipitation hardening (aging at approx. 700°C–750°C) to achieve peak tensile and creep strength.

Q2: How does DLX ensure the internal structural integrity of 15mm round bars?

A: We implement 100% full-length ultrasonic immersion inspection and eddy-current testing on all precision-finished round bars to ensure zero subsurface micro-cracks, inclusions, or density irregularities.

Q3: Can DLX provide custom lengths and tighter diameter tolerances?

A: Yes. In addition to standard precision ground h8/h9 tolerances, DLX can customize centerless grinding down to h7/h6 tolerances upon request, as well as deliver precision cut-to-length billets (e.g., customized blade root slugs) with deburred ends.

Q4: What is the typical Minimum Order Quantity (MOQ) and lead time for 15mm Nimonic 90 bars?

A: We maintain flexible production schedules with an MOQ tailored to specific order requirements (typically starting at 5 kg for standard stock diameters or customized batch trial lots). Standard stocked batches ship within 3–7 business days, while custom melt-and-forge batches typically require 15–25 business days.
