Product Details
Place of Origin: China
Brand Name: DLX
Certification: ISO 9001
Model Number: Nimonic C-263
Payment & Shipping Terms
Minimum Order Quantity: 15

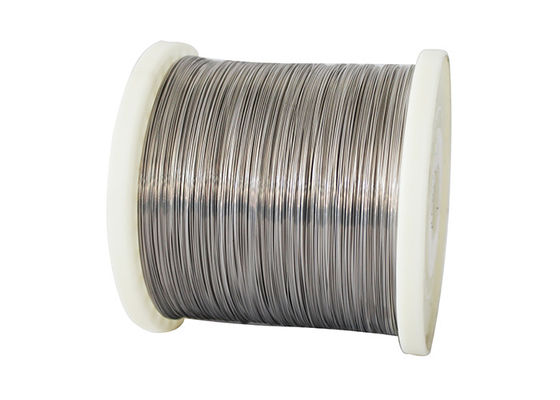

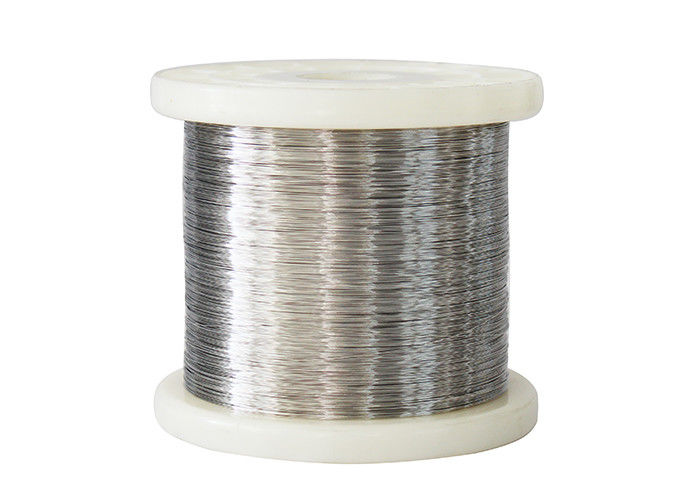

Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
Nimonic C-263 |
Material: |
Nickel Chromium |
Density: |
8.36g/cm³ |
Melting Point: |
1325 °C |
Coefficient Of Expansion: |
10.6 μm/m• °C (20 – 100 °C) |
Modulus Of Elasticity: |
222.5 KN/mm² |
Product Name: |
Nimonic C-263 |
Material: |
Nickel Chromium |
Density: |
8.36g/cm³ |
Melting Point: |
1325 °C |
Coefficient Of Expansion: |
10.6 μm/m• °C (20 – 100 °C) |
Modulus Of Elasticity: |
222.5 KN/mm² |
Nimonic C-263 is a nickel-chromium-cobalt-molybdenum alloy specially meant for use in high temperature and high strength applications. This alloy can be precipitation-hardened
Nimonic C-263 is also known as Nicrofer 5120 CoTi, Haynes 263, and Hastelloy C-263.
The chemical composition of Nimonic C-263 is given in the following table.
Element | Content (%) |
---|---|
Nickel, Ni | Bal |
Chromium, Cr | 19-21 |
Iron, Fe | ≤0.7 |
Cobalt, Co | 19-21 |
Titanium, Ti | 1.9-2.4 |
Aluminum, Al | ≤0.6 |
Manganese, Mn | ≤0.6 |
Silicon,Si | ≤0.4 |
Molybdenum,Mo | 5.6-6.1 |
Others | Remainder |
The following table discusses the physical properties of Nimonic C-263.
Properties | Metric | Imperial |
---|---|---|
Density | 8.36gm/cm3 | 0.302 lb/in3 |
The mechanical properties of Nimonic C-263 are tabulated below.
PROPERTIES | ||||
---|---|---|---|---|
Condition | Approx. tensile strength | Approx. operating temperature depending on load and environment | ||
N/mm² | ksi | °C | °F | |
Annealed | 800 – 1000 | 116 – 145 | up to 800 | up to 1500 |
Annealed + Aged | 1000 – 1200 | 145 – 174 | up to 800 | up to 1500 |
Spring Temper | 1200 – 1500 | 174 – 217 | up to 800 | up to 1500 |
Spring Temper + Annealed + Aged | 1000 – 1200 | 145 – 174 | up to 800 | up to 1500 |
