ISO 9001 Nimonic 90 Udimet 90 High Temperature Nickel Alloy

Name: ISO 9001 Nimonic 90 Udimet 90 High Temperature Nickel Alloy
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: Nimonic 90
Price: 149.30 USD
Availability: InStock

Brand Name:	DLX
Model Number:	Nimonic 90
MOQ:	15
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	300 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Product Name:

Nimonic 90

Material:

Nickel Chromium

Density:

8.18g/cm³

Melting Point:

1370°C

Coefficient Of Expansion:

12.7 μm/m °C (20 – 100°C)

Modulus Of Rigidity:

82.5 KN/mm²

Modulus Of Elasticity:

213 KN/mm² 227 / 240 KN/mm²

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

300 tons per month

Highlight:

ISO 9001 High Temperature Nickel Alloy

Nimonic 90 High Temperature Aluminum Alloys

Udimet 90 High Temperature Nickel Alloy

Product Description

ISO 9001 Nimonic 90 Udimet 90 High Temperature Nickel Alloy 0

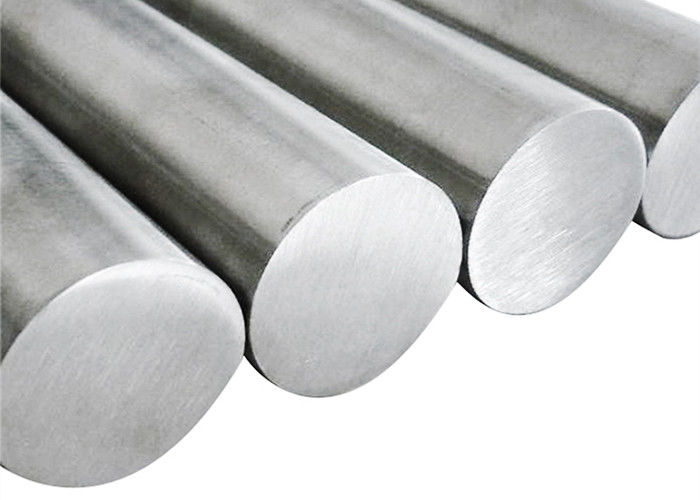

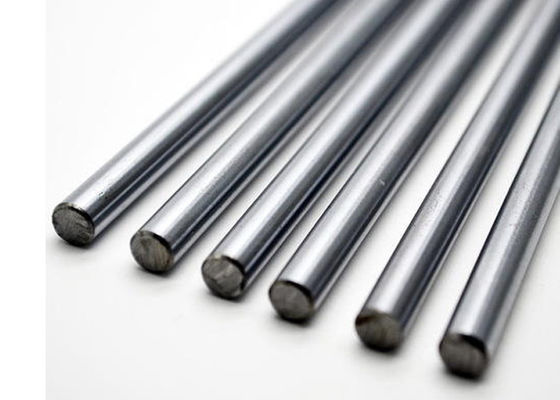

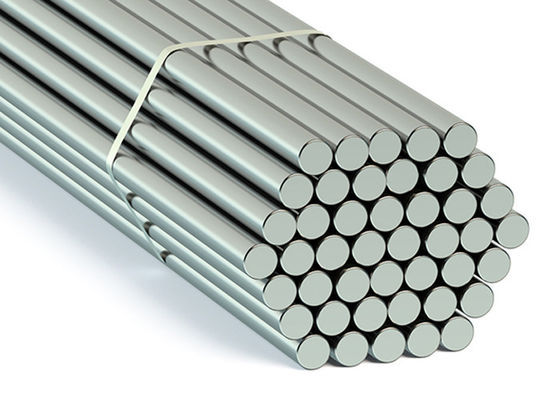

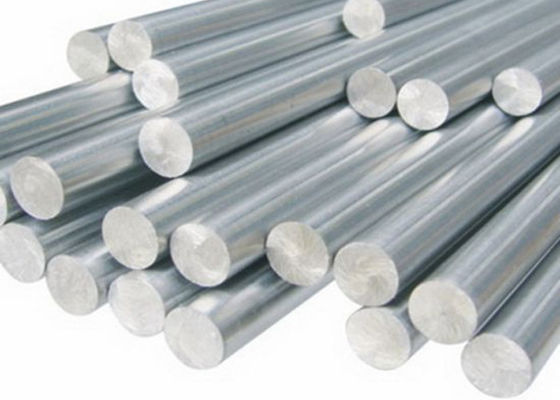

Nimonic 90 Rod High Temperature Nickel

Nimonic 90 Rod is developed by replacing 20% of Ni in Nimonic-80A with cobalt. The addition of cobalt increases the solid solubility temperature of γ′. It also increases the solubility of carbon in the matrix and therefore influences the characteristics of carbide precipitation. The carbide dissolution temperature is lowered to about 900°C. Cobalt is a γ′ stabilizer and therefore imparts better high temperature strength. Both MC type and M23C6 type carbides are present in this material. The physical metallurgy of Nimonic alloys is given in ref. and the hot ductility studies are in refs.

Nimonic 90 is also known as Superimphy 90, Pyromet 90, and Udimet 90.

Nimonic 90 Rod Chemical Composition

The chemical composition of Nimonic 90 rod is given in the following table.

Element	Content (%)
Nickel, Ni	Bal
Chromium, Cr	18-21
Iron, Fe	≤1.5
Cobalt, Co	15-21
Titanium, Ti	2-3
Aluminum, Al	1.0-2.0
Manganese, Mn	≤1
Silicon	≤1
Others	Remainder

Nimonic 90 Rod Physical Properties

The following table discusses the physical properties of Nimonic 90 Rod.

Properties	Metric	Imperial
Density	8.18 gm/cm3	0.296 lb/in3

Nimonic 90 Rod Mechanical Properties

The mechanical properties of Nimonic 90 Rod are tabulated below.

Properties
Condition	Approx. tensile strength		Approx. operating temperature depending on load^^ and environment
Condition	N/mm²	ksi	°C	°F
Annealed	800 – 1000	116 – 145	–	–
Annealed + Aged	1200 – 1400	174 – 203	up to 550	up to 1020
Spring Temper	1200 – 1500	175 – 218	–	–
Spring Temper + Aged	1500 – 1800	218 – 261	up to 350	up to 660
