Nimonic 80A 8020 Nimonic 75 High Temperature Nickel Alloy
Product Details:
| Place of Origin: | China |
| Brand Name: | DLX |
| Certification: | ISO 9001 |
| Model Number: | Nimonic 75 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 15 |
|---|---|
| Packaging Details: | Spool package with Carton box, Coil package with polybag |
| Delivery Time: | 5-21 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 tons per month |
|
Detail Information |
|||
| Product Name: | Nimonic 80A | Material: | Nickel Chromium |
|---|---|---|---|
| Density: | 8.37g/cm³ | Melting Point: | 1380°C |
| Coefficient Of Expansion: | 11.0 μm/m °C (20 – 100°C) | Annealed: | 700 – 800N/mm² |
| Spring Temper: | 1200 – 1500N/mm² | ||
| High Light: | Nimonic 80A High Temperature Nickel Alloy,Wire 8020 High Temperature Steel Alloys,Nimonic 75 High Temperature Nickel Alloy |
||
Product Description
- NIMONIC alloy 75 High Temperature Nickel Alloy

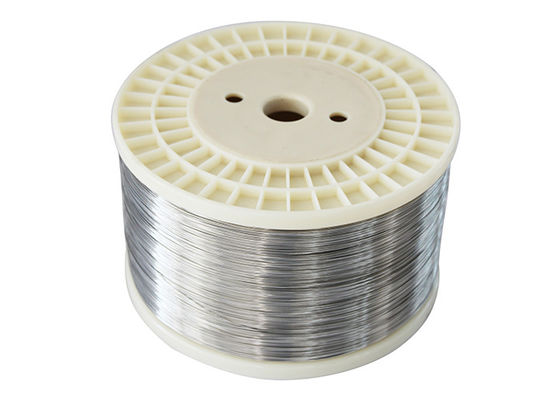

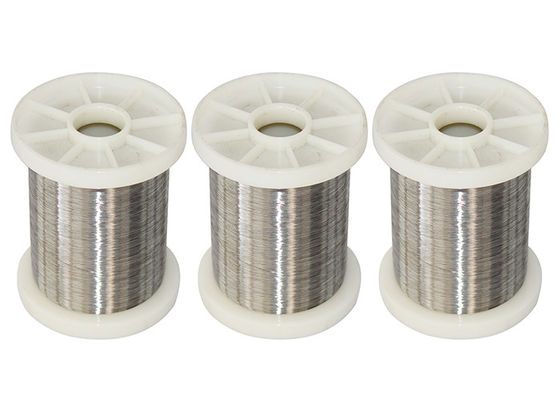

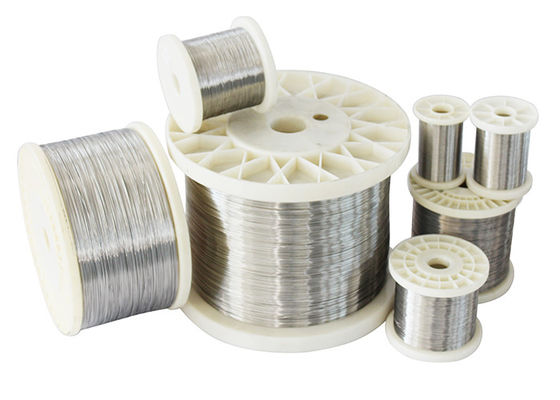

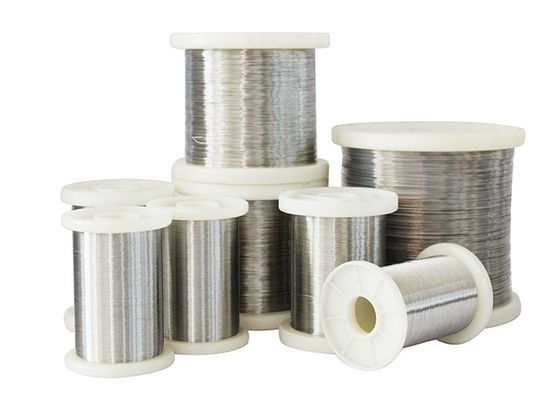

NIMONIC alloy 75 wire The NIMONIC alloy 75 is an 80/20 nickel-chromium alloy containing titanium and carbon as additives. This alloy was first introduced for use as turbine blades during the 1940s. It is readily fabricated and welded. This alloy exhibits good corrosion resistance, mechanical properties and heat resistance
-
Nimonic 75 Chemical Composition
The chemical composition of NIMONIC alloy 75 is given in the following table.
| Element | Content (%) |
|---|---|
| Nickel, Ni | Bal |
| Chromium, Cr | 19-21 |
| Iron, Fe | ≤5 |
| Cobalt, Co | ≤5 |
| Titanium, Ti | 0.2-0.5 |
| Aluminum, Al | ≤0.4 |
| Manganese,Mn | ≤1 |
| Others | Remainder |
-
Nimonic 75 Physical Properties
The following table discusses the physical properties of NIMONIC alloy 75.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.37 gm/cm3 | 0.302 lb/in3 |
-
Nimonic 75 Mechanical Properties
The mechanical properties of NIMONIC alloy 75 are tabulated below.
| Properties | ||||
|---|---|---|---|---|
| Condition | Approx. tensile strength | Approx. operating temperature depending on load** and environment | ||
| N/mm² | ksi | °C | °F | |
| Annealed | 700 – 800 | 102 – 116 | -200 to +1000 | -330 to +1830 |
| Spring Temper | 1200 – 1500 | 174 – 218 | -200 to +1000 | -330 to +1830 |
