Product Details:

Place of Origin: China
Brand Name: DLX
Certification: ISO 9001
Model Number: Nimonic 80A

Payment & Shipping Terms:

Minimum Order Quantity: 15
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Nimonic 80A Material: Nickel Chromium
Density: 8.19g/cm³ Melting Point: 1365°C
Coefficient Of Expansion: 12.7 μm/m °C (20 – 100°C) Modulus Of Rigidity: 85 KN/mm²
Modulus Of Elasticity: 222 KN/mm²
High Light:

780 MPA High Temperature Nickel Alloy

,

ISO 9001 Nickel Alloy

,

80A High Temperature Nickel Alloy

Product Description

780 MPA ISO 9001 Nimonic 80A High Temperature Nickel Alloy 0
780 MPA ISO 9001 Nimonic 80A High Temperature Nickel Alloy 1

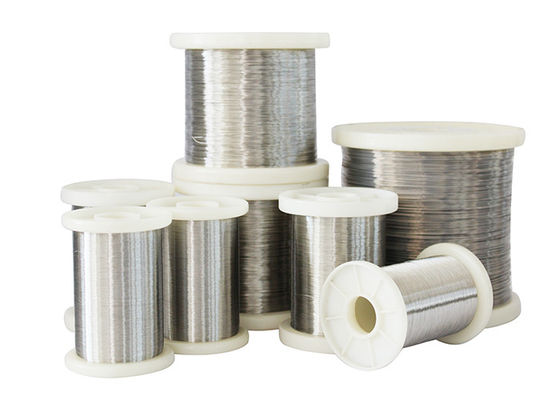

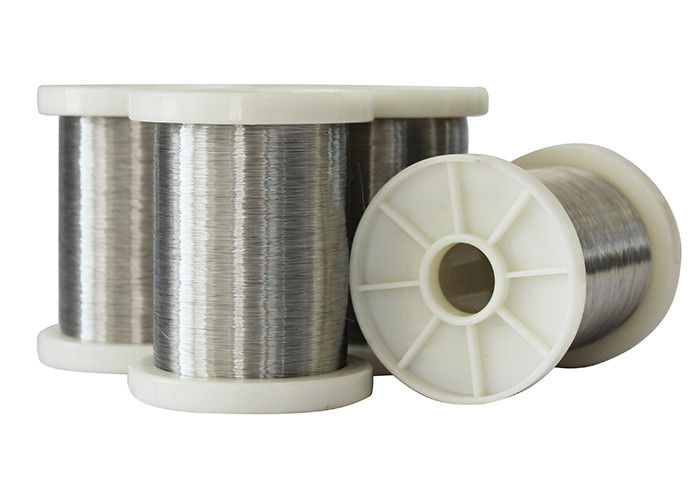

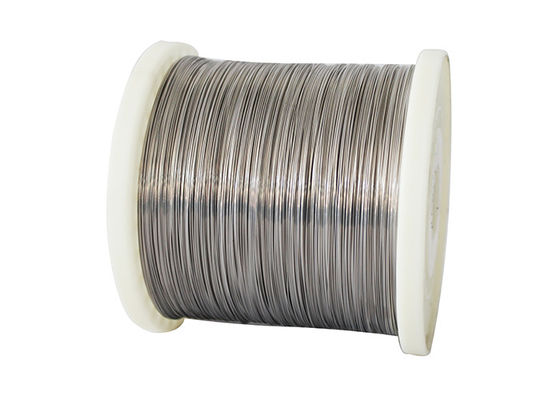

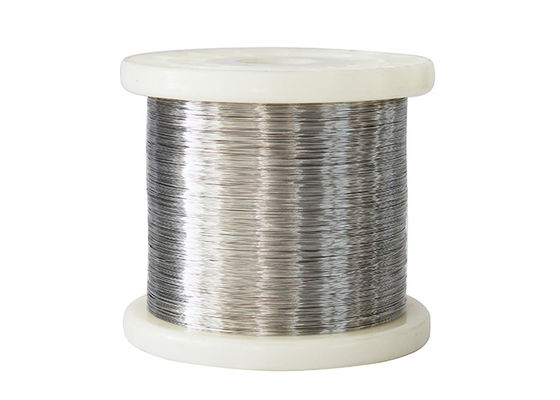

  • Nimonic 80A high temperature nickel alloy

NIMONIC alloy 80A wire is a wrought, age-hardened alloy that is strengthened by additives like titanium, aluminium and carbon. It is manufactured by high-frequency melting and casting in air. It is similar to NIMONIC alloy 75. It has good corrosion and oxidation resistance. The creep rupture and tensile properties are high at 815°C (1500°F).
















  • Nimonic 80A Chemical Composition

The chemical composition of NIMONIC alloy 80A is given in the following table.

Element Content (%)
Nickel, Ni 69
Chromium, Cr 18-21
Iron, Fe ≤3
Cobalt, Co ≤2
Titanium, Ti 1.8-2.7
Aluminum, Al 1.0-1.8
Others Remainder
  • Nimonic 80A Physical Properties

The following table discusses the physical properties of NIMONIC alloy 80A.

Properties Metric Imperial
Density 8.19 gm/cm3 0.296 lb/in3
  • Nimonic 80A Mechanical Properties

The mechanical properties of NIMONIC alloy 80A are tabulated below.

Properties Metric Imperial
Tensile strength(annealed) 1250 MPa 181 ksi
Yield strength(annealed) 780 MPa 113 ksi
Elongation at Break 30% 30%
