Product Details
Place of Origin: China
Brand Name: DLX
Certification: ISO 9001
Model Number: Nimonic 80A
Payment & Shipping Terms
Minimum Order Quantity: 15

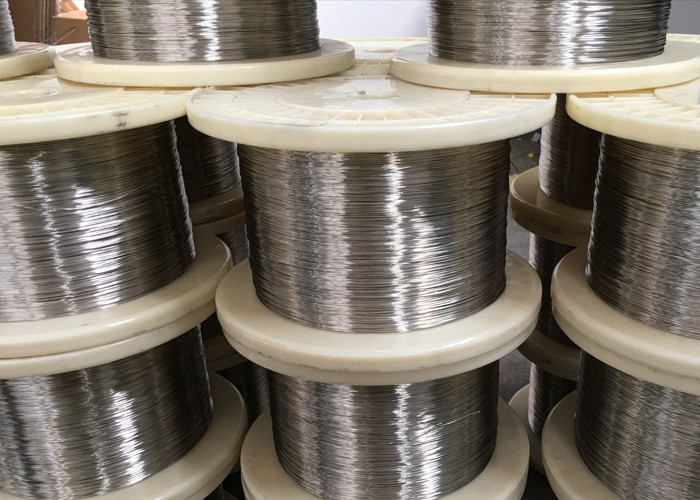

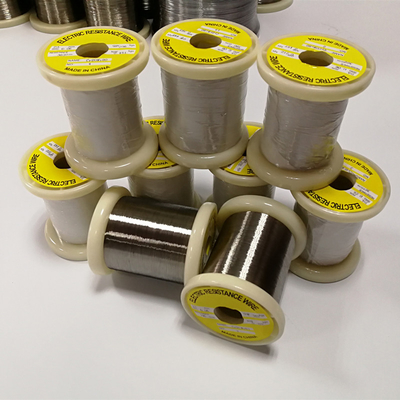

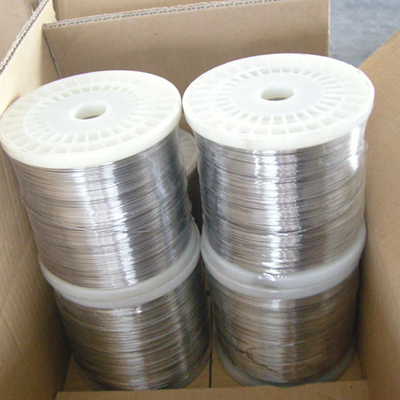

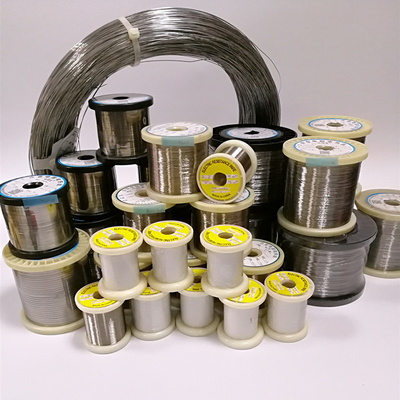

Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
Nimonic 80A |
Material: |
Nickel Chromium |
Density: |
8.19g/cm³ |
Melting Point: |
1365°C |
Coefficient Of Expansion: |
12.7 μm/m °C (20 – 100°C) |
Modulus Of Rigidity: |
85 KN/mm² |
Modulus Of Elasticity: |
222 KN/mm² |
Product Name: |
Nimonic 80A |
Material: |
Nickel Chromium |
Density: |
8.19g/cm³ |
Melting Point: |
1365°C |
Coefficient Of Expansion: |
12.7 μm/m °C (20 – 100°C) |
Modulus Of Rigidity: |
85 KN/mm² |
Modulus Of Elasticity: |
222 KN/mm² |
Nimonic 80A is a nickel-chromium alloy similar to NIMONIC alloy 75 but made precipitation hardenable by additions of aluminum and titanium. The alloy has good corrosion and oxidation resistance and high tensile and creep-rupture properties
at temperatures to 1500°F (815°C).
Usage: This alloy is used for turbing blades, discs, forgings, ring sections, hot-working tools and high-temperature springs.
The chemical composition of NIMONIC alloy 80A is given in the following table.
| Element | Content (%) |
|---|---|
| Nickel, Ni | 69 |
| Chromium, Cr | 18-21 |
| Iron, Fe | ≤3 |
| Cobalt, Co | ≤2 |
| Titanium, Ti | 1.8-2.7 |
| Aluminum, Al | 1.0-1.8 |
| Others | Remainder |
The following table discusses the physical properties of NIMONIC alloy 80A.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.19 gm/cm3 | 0.296 lb/in3 |
The mechanical properties of NIMONIC alloy 80A are tabulated below.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength(annealed) | 1250 MPa | 181 ksi |
| Yield strength(annealed) | 780 MPa | 113 ksi |
| Elongation at Break | 30% | 30% |
