Comprehensive Certifications MI Cable with 0~1100℃ Temperature Range and 2/4/6 Core Options for Industrial Environments

Name: Comprehensive Certifications MI Cable with 0~1100℃ Temperature Range and 2/4/6 Core Options for Industrial Environments
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: Mineral Insulated Cable
Price: 3.00 USD
Availability: InStock

Brand Name:	DLX
Model Number:	Mineral Insulated Cable
MOQ:	2kg
Price:	$3.00
Payment Terms:	L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	300 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Supply Ability:

300 tons per month

Highlight:

Comprehensive Certifications MI Cable

Industrial Environments MI Cable

MI Cable In Industrial Environments

Product Description

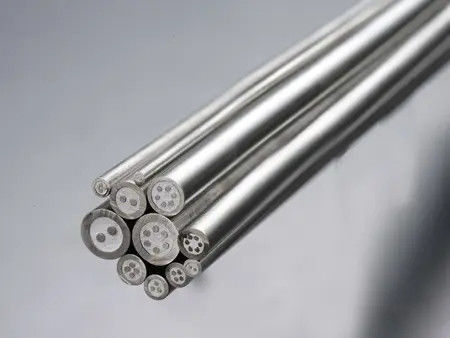

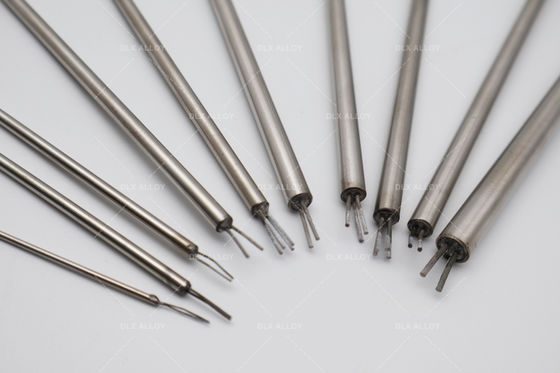

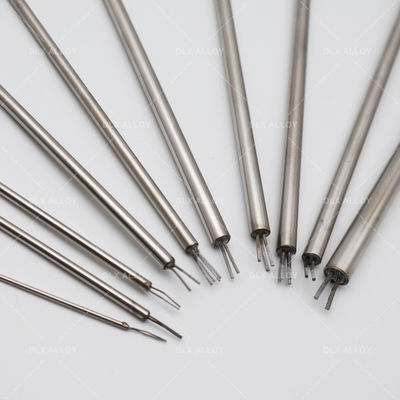

Comprehensive Certifications MI Cable In Industrial Environments

Key Specifications

Place of Origin	Jiangsu, China
Brand Name	dlx
Product name	MI Cable
Application	Temperature Measuring
Dia(mm)	0.25mm to 12.7mm
Customized support	OEM, ODM
Insulator	99.6% high purity MgO
Core	2,4,6
Temperature range	0~1100(℃)
Size	Custom Size

Packaging and Delivery

Selling Units:	Single item
Single package size:	25X25X12 cm
Single gross weight:	20.000 kg
Packing	Polyform+giftbox+export Carton
Delivery time	7-20 Days

Wire Component Specifications

Code	Wire Component of the thermocouple
+Positive leg	- Negative Leg
N	Ni-Cr-Si(NP)\| Ni-Si-magnesium (NN)
K	Ni-Cr(KP)\| Ni-Al(Si) (KN)
E	Ni-Cr(EP)\| Cu-Ni (EN)
J	Iron (JP)\| Cu-Ni (JN)
T	Copper (TP)\| Cu-Ni (TN)
B	Platinum Rhodium-30%\| Platinum Rhodium -6%
R	Platinum Rhodium-13%\| Platinum
S	Platinum Rhodium -10%\| Platinum

Material Specifications

Material	Type	Grade	Working temperature (deg)	Long Term	Short Term	Tolerance
NiCr-NiSi	K	1	-40~1100	-40~1300	±1.5 deg	GB/T 2614-1998
		2			±2.5 deg
NiCr-CuNi	E	1	-40~800	-40~900	±1.5 deg	GB/T 4993-1998
		2			±2.5 deg
Fe-Constantan	J	1	-40~600	-40~800	±1.5 deg	GB/T 4994-1998
		2			±2.5 deg
Cu-CuNi	T	1	-200~300	-200~400	±0.5 deg	GB/T 2903-1998

Dimensions and Lengths

Outer Sheath(mm)	core wire Dia.( mm)	Outer Sheath(mm)o core wire Dia.( mm)	Length(m)
Out Dia	Wall Thickness	K,N,E,J,T Types	S,R,B Types
0.5	0.05-0.10	0.08-0.12	...
1.0	0.10-0.20	0.15-0.20	...
1.5	0.15-0.25	0.23-0.30	...
1.6	0.16-0.26	0.26-0.36	...
2.0	0.25-0.35	0.40-0.50	0.25-.030
3.0	0.38-0.48	0.50-0.60	0.30-0.40
3.2	0.48-0.58	0.58-0.68	0.30-0.40
4.0	0.52-0.62	0.60-0.70	0.35-0.40
4.8	0.73-0.83	0.75-0.85	0.40-0.45
5.0	0.78-0.88	0.80-0.90	0.40-0.45
6.0	0.98-1.08	0.90-1.10	0.45-0.50
6.4	1..05-1.15	1.02-1.12	0.45-0.50
8.0	1.30-1.44	1.30-1.40	0.45-0.50
12.7	1.75-1.90	1.95-2.05	...

Frequently Asked Questions

Q: I have sent the RFQ, when can I expect a reply?

A: We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management or call us directly.

Q: How long is the delivery time?

A: It depends on the order quantity, usually it takes about 20-30 days.

Q: Do you accept OEM/ODM manufacturing?

A: Yes! We do accept OEM/ODM manufacturing. You could give us your samples or drawings.

Q: Can you send me your catalogue?

A: Yes, please contact us. We can share with our catalogue for you by email.

Q: How to control the products quality in your company?

A: With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.

Q: Can you provide detailed technical data and drawing?

A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.
