Product Details
Place of Origin: China
Brand Name: DLX
Model Number: Type S MI Thermocouple cable
Payment & Shipping Terms
Minimum Order Quantity: 500
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000 meters per month
Product Name: |
MI Thermocouple Wire |
Color: |
White, Red, Yellow And Etc |
Certificate: |
ISO9001 |
Grade: |
SP/NN, Extension Grade SPX/SNX |
Positive: |
Platinum Rhodium |
Negative: |
Platinum |
Product Name: |
MI Thermocouple Wire |
Color: |
White, Red, Yellow And Etc |
Certificate: |
ISO9001 |
Grade: |
SP/NN, Extension Grade SPX/SNX |
Positive: |
Platinum Rhodium |
Negative: |
Platinum |

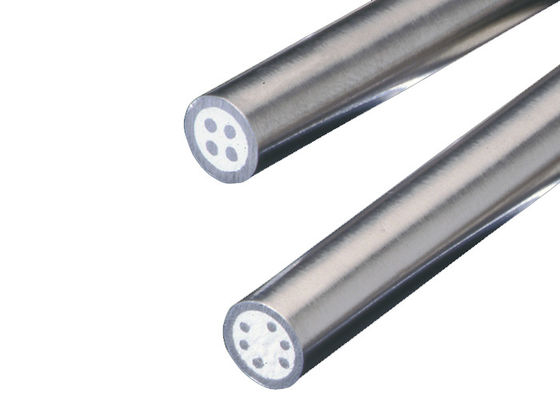

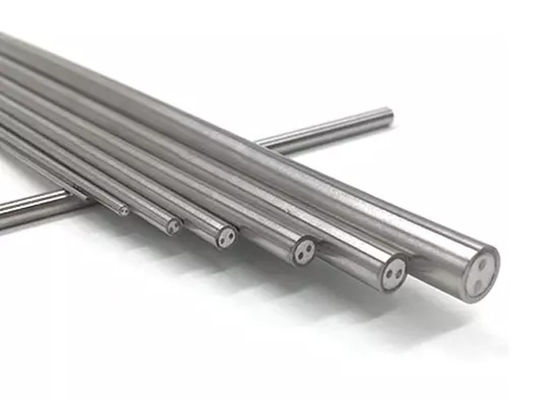

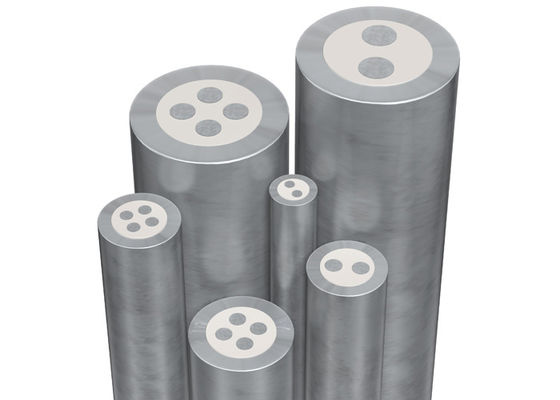

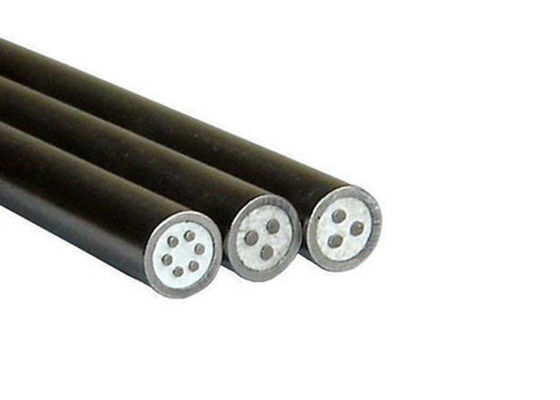

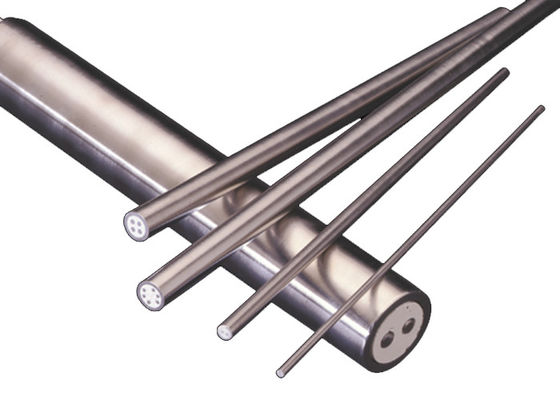

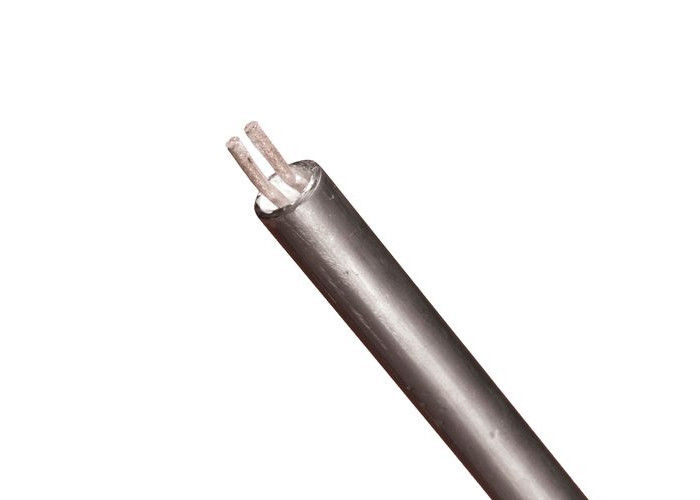

MI thermocouple cable is used to insulate thermocouple wires from one another and from the metal sheath that surrounds them. MI Cable has two (or four when duplex) thermocouple wires running down the middle of the tube. The tube is then filled with magnesium oxide powder and compacted to ensure the wires are properly insulated and separated. Mineral insulated cable helps to protect the thermocouple wire from corrosion and electrical interference MI themocouple cable.
Advantages:
1, improve the mechanical and physical properties of the measuring lines of thermocouple.
2, reduce the cost of measuring lines
Within certain range of temperature, a pair of insulating wires used in the applicable thermocouple which has the same feature is called compensation wire. When correctly connected with the applicable thermocouple, it will extend the reference end of thermocouple to a place away from heat or with constant temperature.
| Code | Wires component of the thermocouple | |
| +Positive leg | -Negative leg | |
| N | Ni-cr-si (NP) | Ni-si-magnesium (NN) |
| K | Ni-Cr (KP) | Ni-Al(Si) (KN) |
| E | Ni-Cr (EP) | Cu-Ni<constantan> (EN) |
| J | Iron (JP) | Cu-Ni<constantan> (JN) |
| T | Copper (TP) | Cu-Ni<constantan> (TN) |
| B | Platinum Rhodium-30% | Platinum Rhodium-6% |
| R | Platinum Rhodium-13% | Platinum |
| S | Platinum Rhodium-10% | Platinum |
| ASTM | ANSI | IEC | DIN | BS | NF | JIS | GOST |
| (American Society for Testing and Materials) E 230 | (American National Standard Institute) MC 96.1 | (European Standard by the International Electrotechnical Commission 584)-1/2/3 | (Deutsche Industrie Normen) EN 60584 -1/2 | (British Standards) 4937.1041, EN 60584 - 1/2 | (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 | (Japanese Industrial Standards) C 1602 - C 1610 | (Unification of the Russian Specifications) 3044 |
Dia(mm): 0.5 to 12.7 mm.
| Out Sheath(mm) | Core wire Dia.(mm) | Sheath Material | Length(m) | |||||
| Our Dia. | WallThickness | K,N,E,J,T type | S,R,B types | K,N types | E,J,T types | S,R type | B type | |
| 0.5 | 0.05-0.1 | 0.08-0.12 | --- |
SS304 SS321 SS316 SS310 INCL600 |
SS304 SS321 SS316 |
INCL600 INCL800 |
INCL600 INCL800 |
500 |
| 1 | 0.1-0.2 | 0.15-0.2 | --- | 300 | ||||
| 1.5 | 0.15-0.25 | 0.23-0.3 | --- | 200 | ||||
| 1.6 | 0.16-0.26 | 0.26-0.36 | --- | 200 | ||||
| 2 | 0.25-0.35 | 0.4-0.5 | 0.25-0.3 | 180 | ||||
| 3 | 0.38-0.48 | 0.5-0.6 | 0.30-0.4 | 80 | ||||
| 3.2 | 0.48-0.58 | 0.58-0.68 | 0.30-0.4 | 75 | ||||
| 4 | 0.52-0.62 | 0.6-0.7 | 0.35-0.4 | 70 | ||||
| 4.8 | 0.73-0.83 | 0.75-0.85 | 0.4-0.45 | 40 | ||||
| 5 | 0.78-0.88 | 0.80-0.90 | 0.4-0.45 | 40 | ||||
| 6 | 0.98-1.08 | 0.90-1.1 | 0.45-0.5 | 30 | ||||
| 6.4 | 1.05-1.15 | 1.02-1.12 | 0.45-0.5 | 30 | ||||
| 8 | 1.30-1.44 | 1.30-1.40 | 0.45-0.5 | 20 | ||||
| 12.7 | 1.75-1.90 | 1.92-2.05 | --- | 10 | ||||
| Product name | code | type | sheath material | out Dia.(mm) | Temperature |
| Ni Cr-Ni-Si | KK | K | SS304 | 0.5-1.0 | 400 |
| SS321 | 1.5-3.2 | 600 | |||
| SS316 | 4.0-8.0 | 800 | |||
| 0.5-1.0 | 500 | ||||
| SS310 | 1.5-3.2 | 800 | |||
| INCL600 | 4.0-6.4 | 900 | |||
| 8.0-12.7 | 1000 | ||||
| NICROBELL | 4.0-6.4 | 900 | |||
| 8.0-12.7 | 1200 | ||||
| Ni Cr Si-Ni Si | NK | N | SS304 | 0.5-1.0 | 400 |
| SS321 | 1.5-3.2 | 600 | |||
| SS316 | 4.0-8.0 | 800 | |||
| 0.5-1.0 | 500 | ||||
| SS310 | 1.5-3.2 | 800 | |||
| INCL600 | 4.0-6.4 | 900 | |||
| 8.0-12.7 | 1000 | ||||
| NICRPBELL | 4.0-6.4 | 900 | |||
| 8.0-12.7 | 1200 | ||||
| Ni Cr-Constantan | EK | E | SS304 | 0.5-1.0 | 400 |
| SS321 | 1.5-3.2 | 500 | |||
| SS316 | 4.0-8.0 | 800 | |||
| Fe-Constantan | JK | J | SS304 | 1.0 | 300 |
| SS321 | 1.5-3.2 | 500 | |||
| SS316 | 1.0-8.0 | 800 | |||
| Cu-Constantan | TK | T | SS304 | -200-100 | |
| SS321 | 100-200 | ||||
| SS316 | 100-350 |
