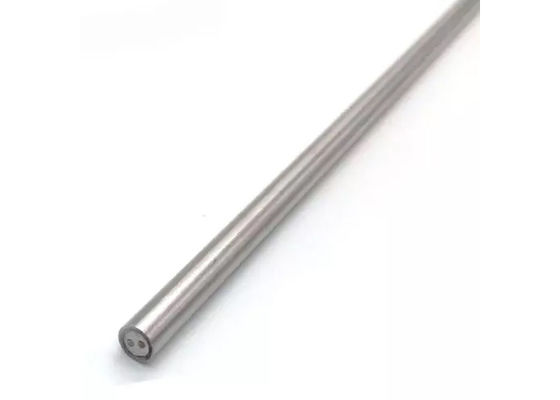

SS316 12.7mm TP TN Type T MI Mineral Insulated Cable thermocouple cable

SS316 12.7mm TP TN Type T MI Mineral Insulated Cable thermocouple cable

Brand Name:	DLX
Model Number:	Type T MI Thermocouple cable
MOQ:	50 meters
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	100000 meters per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

MI Thermocouple Wire

Color:

Bright

Certificate:

ISO9001

Grade:

TP/TN

Positive:

Copper

Negative:

Cu-Ni

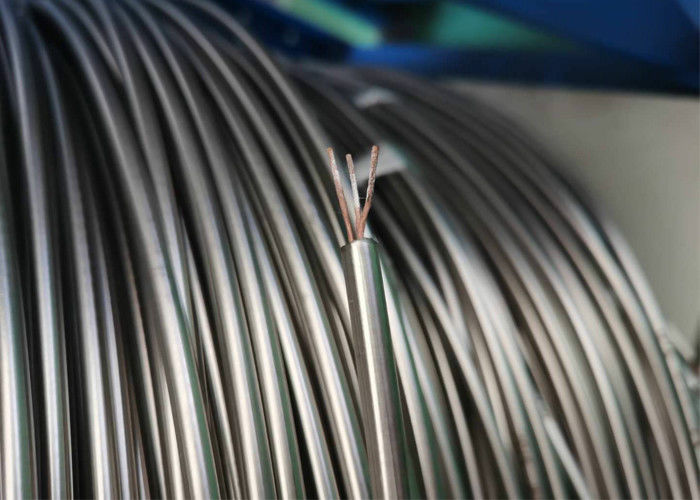

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

100000 meters per month

Highlight:

SS316 Mineral Insulated Cable

12.7mm Mineral Insulated Metal Sheathed

TP Mineral Insulated Cable

Product Description

SS316 12.7mm TP TN Type T MI Mineral Insulated Cable thermocouple cable 0

MI Thermocouple CABLE

Model:KK,KE,KJ,KT,KN

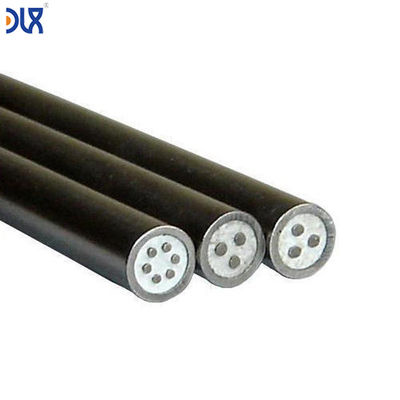

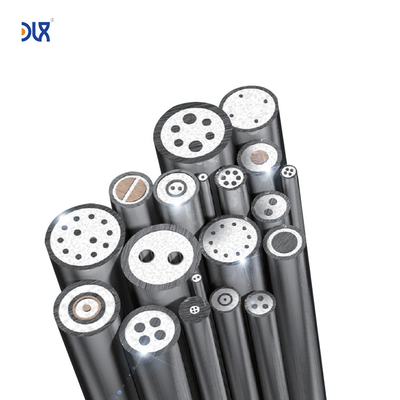

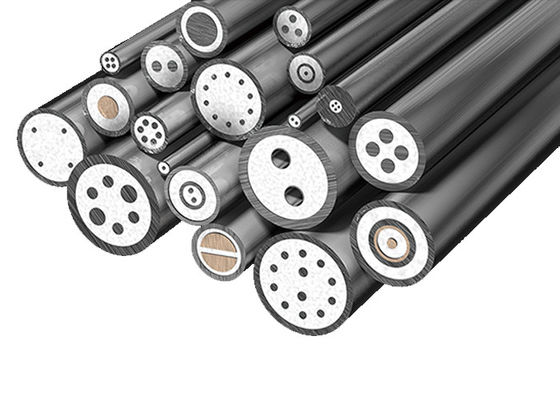

Mineral Insulated Thermocouple Cable

Specifications Model:KK,KE,KJ,KT,KN

Temperature range:500-1300

MI cable: OD 0.25 - 8.00
Sheath material: Inconel 600, SS316, SS304, SS321.
Mini coil length: Per client's request
Accuracy: Class I, II
Wire: Simplex & duplex

Feature

Conductor material: NiCr-NiSi, NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Core number: 2, 4 or 6 cores
Sheath material: SS321(SS304), SS316, SS310, INCL600
Insulator: 99.6% high purity MgO
Dia(mm): from 0.5mm to 12.7mm

Mineral Insulated Thermocouple Cable is inslulated by Mgo.MgO Insulated Cable is a good choice for high temperature probr fabrication,is widly applied in industry.Mineral insulated Thermocouple Cable is high temperature resistance,anti-corrosion,anti-oxidation,rapid heat reponse.

A mineral insulated thermocouple cable consists of two conductors (sometimes even four or six) of dissimilar metals. These conductors are joined on the side on which temperature should be measured (hot junction). When properly joined, a voltage is produced that can be read to determine temperature.

The dissimilar metals are insulated with high quality magnesium oxide and covered with a corrosion resistant sheath material, such as Inconel or Stainless steel. Mineral insulated thermocouples can provide stable temperature measurement readings

and are often used for high temperatures (up to 1250⁰C) in hazardous environments.

Thermocouple Wire

Code	Wires component of the thermocouple
	+Positive leg	-Negative leg
N	Ni-cr-si (NP)	Ni-si-magnesium (NN)
K	Ni-Cr (KP)	Ni-Al(Si) (KN)
E	Ni-Cr (EP)	Cu-Ni<constantan> (EN)
J	Iron (JP)	Cu-Ni<constantan> (JN)
T	Copper (TP)	Cu-Ni<constantan> (TN)
B	Platinum Rhodium-30%	Platinum Rhodium-6%
R	Platinum Rhodium-13%	Platinum
S	Platinum Rhodium-10%	Platinum

Standards

ASTM	ANSI	IEC	DIN	BS	NF	JIS	GOST
(American Society for Testing and Materials) E 230	(American National Standard Institute) MC 96.1	(European Standard by the International Electrotechnical Commission 584)-1/2/3	(Deutsche Industrie Normen) EN 60584 -1/2	(British Standards) 4937.1041, EN 60584 - 1/2	(Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324	(Japanese Industrial Standards) C 1602 - C 1610	(Unification of the Russian Specifications) 3044

Size range

Dia(mm): 0.5 to 12.7 mm.

Parameter

Out Sheath(mm)		Core wire Dia.(mm)		Sheath Material				Length(m)
Our Dia.	WallThickness	K,N,E,J,T type	S,R,B types	K,N types	E,J,T types	S,R type	B type	Length(m)
0.5	0.05-0.1	0.08-0.12	---	SS304 SS321 SS316 SS310 INCL600	SS304 SS321 SS316	INCL600 INCL800	INCL600 INCL800	500
1	0.1-0.2	0.15-0.2	---					300
1.5	0.15-0.25	0.23-0.3	---					200
1.6	0.16-0.26	0.26-0.36	---					200
2	0.25-0.35	0.4-0.5	0.25-0.3					180
3	0.38-0.48	0.5-0.6	0.30-0.4					80
3.2	0.48-0.58	0.58-0.68	0.30-0.4					75
4	0.52-0.62	0.6-0.7	0.35-0.4					70
4.8	0.73-0.83	0.75-0.85	0.4-0.45					40
5	0.78-0.88	0.80-0.90	0.4-0.45					40
6	0.98-1.08	0.90-1.1	0.45-0.5					30
6.4	1.05-1.15	1.02-1.12	0.45-0.5					30
8	1.30-1.44	1.30-1.40	0.45-0.5					20
12.7	1.75-1.90	1.92-2.05	---					10

Type and Sheath table

Product name	code	type	sheath material	out Dia.(mm)	Temperature
Ni Cr-Ni-Si	KK	K	SS304	0.5-1.0	400
			SS321	1.5-3.2	600
			SS316	4.0-8.0	800
				0.5-1.0	500
			SS310	1.5-3.2	800
			INCL600	4.0-6.4	900
				8.0-12.7	1000
			NICROBELL	4.0-6.4	900
				8.0-12.7	1200
Ni Cr Si-Ni Si	NK	N	SS304	0.5-1.0	400
			SS321	1.5-3.2	600
			SS316	4.0-8.0	800
				0.5-1.0	500
			SS310	1.5-3.2	800
			INCL600	4.0-6.4	900
				8.0-12.7	1000
			NICRPBELL	4.0-6.4	900
				8.0-12.7	1200
Ni Cr-Constantan	EK	E	SS304	0.5-1.0	400
			SS321	1.5-3.2	500
			SS316	4.0-8.0	800
Fe-Constantan	JK	J	SS304	1.0	300
			SS321	1.5-3.2	500
			SS316	1.0-8.0	800
Cu-Constantan	TK	T	SS304		-200-100
			SS321		100-200
			SS316		100-350
