E SS321 1.5mm 2 Cores MI EP thermocouple cable Mineral Insulated Heating Cable

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: Type E MI Thermocouple cable

Payment & Shipping Terms

Minimum Order Quantity: 500

Packaging Details: Spool package with Carton box, Coil package with polybag

Delivery Time: 7-12 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 30000 meters per month

Get Best Price
Contact Now
Specifications
Highlight:

SS321Mineral Insulated Heating Cable

,

1.5mm Mineral Insulated Copper Cable

,

EP Mineral Insulated Heating Cable

Product Name:
MI Thermocouple Wire
Color:
Bright
Certificate:
ISO9001
Grade:
EP/EN
Positive:
Ni-Cr
Negative:
Cu-Ni
Product Name:
MI Thermocouple Wire
Color:
Bright
Certificate:
ISO9001
Grade:
EP/EN
Positive:
Ni-Cr
Negative:
Cu-Ni
Description
E SS321 1.5mm 2 Cores MI EP thermocouple cable Mineral Insulated Heating Cable

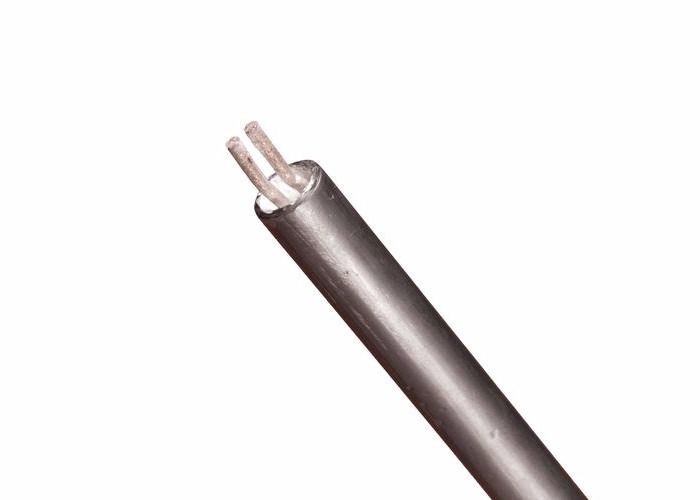

E SS321 1.5mm 2 Cores MI EP thermocouple cable Mineral Insulated Heating Cable 0

  • Type E MI Thermocouple CABLE



Within certain range of temperature, a pair of insulating wires used in the applicable thermocouple which has the same feature is called compensation wire. When correctly connected with the applicable thermocouple, it will extend the reference end of thermocouple to a place away from heat or with constant temperature.

Advantages:
1, improve the mechanical and physical properties of the measuring lines of thermocouple.
2, reduce the cost of measuring lines



Within certain range of temperature, a pair of insulating wires used in the applicable thermocouple which has the same feature is called compensation wire. When correctly connected with the applicable thermocouple, it will extend the reference end of thermocouple to a place away from heat or with constant temperature.






  • Thermocouple Wire
Code Wires component of the thermocouple
  +Positive leg -Negative leg
N Ni-cr-si (NP) Ni-si-magnesium (NN)
K Ni-Cr (KP) Ni-Al(Si) (KN)
E Ni-Cr (EP) Cu-Ni<constantan> (EN)
J Iron (JP) Cu-Ni<constantan> (JN)
T Copper (TP) Cu-Ni<constantan> (TN)
B Platinum Rhodium-30% Platinum Rhodium-6%
R Platinum Rhodium-13% Platinum
S Platinum Rhodium-10% Platinum



  • ​Standards
ASTM ANSI IEC DIN BS NF JIS GOST
(American Society for Testing and Materials) E 230 (American National Standard Institute) MC 96.1 (European Standard by the International Electrotechnical Commission 584)-1/2/3 (Deutsche Industrie Normen) EN 60584 -1/2 (British Standards) 4937.1041, EN 60584 - 1/2 (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 (Japanese Industrial Standards) C 1602 - C 1610 (Unification of the Russian Specifications) 3044






  • Size range

Dia(mm): 0.5 to 12.7 mm.



  • Parameter

Out Sheath(mm) Core wire Dia.(mm) Sheath Material  Length(m)
Our Dia. WallThickness K,N,E,J,T type S,R,B types K,N types E,J,T types S,R type B type
0.5 0.05-0.1 0.08-0.12 ---

SS304

SS321

SS316

SS310

INCL600

SS304

SS321

SS316

INCL600

INCL800

INCL600

INCL800

500
1 0.1-0.2 0.15-0.2 --- 300
1.5 0.15-0.25 0.23-0.3 --- 200
1.6 0.16-0.26 0.26-0.36 --- 200
2 0.25-0.35 0.4-0.5 0.25-0.3 180
3 0.38-0.48 0.5-0.6 0.30-0.4 80
3.2 0.48-0.58 0.58-0.68 0.30-0.4 75
4 0.52-0.62 0.6-0.7 0.35-0.4 70
4.8 0.73-0.83 0.75-0.85 0.4-0.45 40
5 0.78-0.88 0.80-0.90 0.4-0.45 40
6 0.98-1.08 0.90-1.1 0.45-0.5 30
6.4 1.05-1.15 1.02-1.12 0.45-0.5 30
8 1.30-1.44 1.30-1.40 0.45-0.5 20
12.7 1.75-1.90 1.92-2.05 --- 10



  • Type and Sheath table



Product name code type sheath material out Dia.(mm) Temperature
Ni Cr-Ni-Si KK K SS304 0.5-1.0 400
SS321 1.5-3.2 600
SS316 4.0-8.0 800
  0.5-1.0 500
SS310 1.5-3.2 800
INCL600 4.0-6.4 900
  8.0-12.7 1000
NICROBELL 4.0-6.4 900
  8.0-12.7 1200
Ni Cr Si-Ni Si NK N SS304 0.5-1.0 400
SS321 1.5-3.2 600
SS316 4.0-8.0 800
  0.5-1.0 500
SS310 1.5-3.2 800
INCL600 4.0-6.4 900
  8.0-12.7 1000
NICRPBELL 4.0-6.4 900
  8.0-12.7 1200
Ni Cr-Constantan EK E SS304 0.5-1.0 400
SS321 1.5-3.2 500
SS316 4.0-8.0 800
Fe-Constantan JK J SS304 1.0 300
SS321 1.5-3.2 500
SS316 1.0-8.0 800
Cu-Constantan TK T SS304   -200-100
SS321   100-200
SS316   100-350

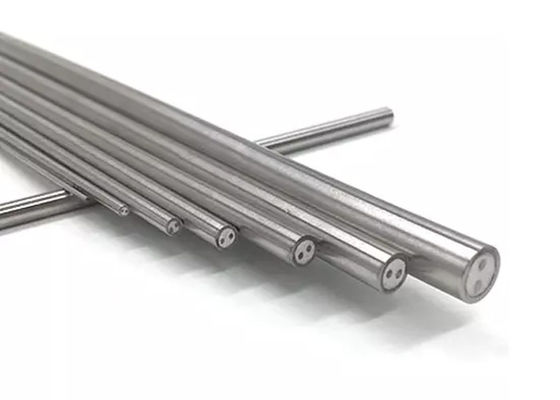

E SS321 1.5mm 2 Cores MI EP thermocouple cable Mineral Insulated Heating Cable 1

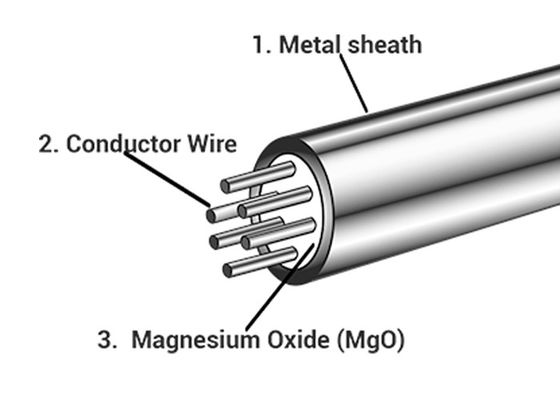

E SS321 1.5mm 2 Cores MI EP thermocouple cable Mineral Insulated Heating Cable 2

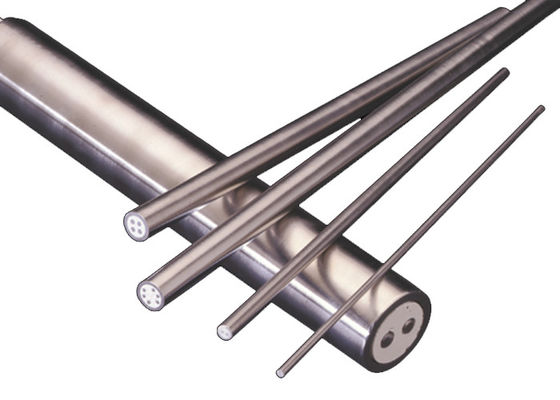

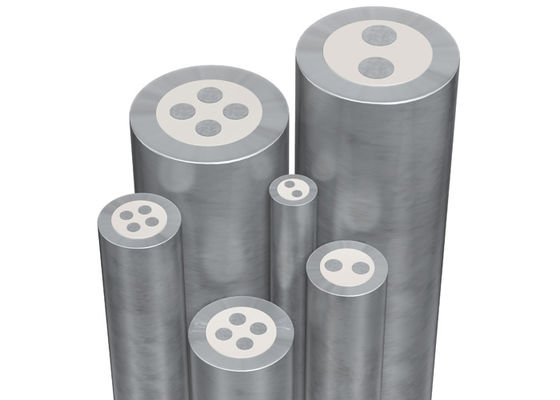

E SS321 1.5mm 2 Cores MI EP thermocouple cable Mineral Insulated Heating Cable 3E SS321 1.5mm 2 Cores MI EP thermocouple cable Mineral Insulated Heating Cable 4
