Type K Thermocouple MI Cable double insulated single core cable

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: Type K Thermocouple MI cable

Payment & Shipping Terms

Minimum Order Quantity: 10

Packaging Details: Spool package with Carton box, Coil package with polybag

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Type K MI Thermocouple Cable

,

Type K Thermocouple Extension Wire

Product Name:
MI Cable
Color:
White, Red, Yellow And Etc
Certificate:
ISO9001
Grade:
KP/KN, KPX/KNX
Positive:
Chromel
Negative:
Alumel
Product Name:
MI Cable
Color:
White, Red, Yellow And Etc
Certificate:
ISO9001
Grade:
KP/KN, KPX/KNX
Positive:
Chromel
Negative:
Alumel
Description

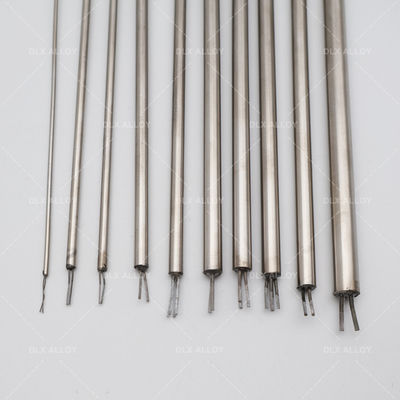

Type K Thermocouple MI Cable double insulated single core cable

Type K Thermocouple MI Cable double insulated single core cable 0


Type K Thermocouple MI Cable double insulated single core cable 1


  • Type S Thermocouple MI CABLE





MI thermocouple cable is used to insulate thermocouple wires from one another and from the metal sheath that surrounds them. MI Cable has two (or four when duplex) thermocouple wires running down the middle of the tube. The tube is then filled with magnesium oxide powder and compacted to ensure the wires are properly insulated and separated. Mineral insulated cable helps to protect the thermocouple wire from corrosion and electrical interference MI themocouple cable.


Advantages:
1, improve the mechanical and physical properties of the measuring lines of thermocouple.
2, reduce the cost of measuring lines



Within certain range of temperature, a pair of insulating wires used in the applicable thermocouple which has the same feature is called compensation wire. When correctly connected with the applicable thermocouple, it will extend the reference end of thermocouple to a place away from heat or with constant temperature.














  • Thermocouple Wire
Code Wires component of the thermocouple
  +Positive leg -Negative leg
N Ni-cr-si (NP) Ni-si-magnesium (NN)
K Ni-Cr (KP) Ni-Al(Si) (KN)
E Ni-Cr (EP) Cu-Ni<constantan> (EN)
J Iron (JP) Cu-Ni<constantan> (JN)
T Copper (TP) Cu-Ni<constantan> (TN)



  • ​Standards
ASTM ANSI IEC DIN BS NF JIS GOST
(American Society for Testing and Materials) E 230 (American National Standard Institute) MC 96.1 (European Standard by the International Electrotechnical Commission 584)-1/2/3 (Deutsche Industrie Normen) EN 60584 -1/2 (British Standards) 4937.1041, EN 60584 - 1/2 (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 (Japanese Industrial Standards) C 1602 - C 1610 (Unification of the Russian Specifications) 3044






  • Size range

Wire: 0.12 to 8.0 mm.
