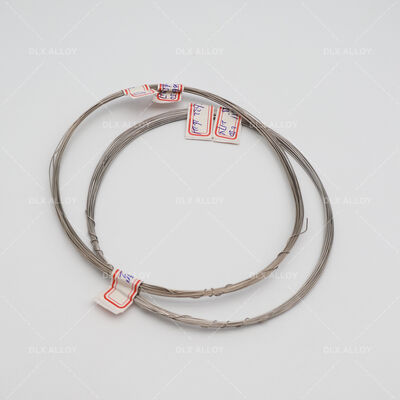

Ultra-Precision Thermocouple Wire Type T 0.2mm for Cryogenic Systems

Precision-drawn 0.2mm Type T thermocouple wire delivers industry-leading thermoelectric sensitivity and high thermal EMF repeatability across ultra-low and cryogenic temperature ranges (-200°C to +350°C). Composed of high-purity electrolytic copper (positive leg, TP) and a precision-melted copper-nickel constantan alloy (negative leg, TN), this fine-gauge sensor wire provides unmatched corrosion resistance in humid conditions and minimal thermal shunt error in micro-environment measurement.

Type T (Cu/CuNi) thermocouples are widely recognized as the premier calibration standard for sub-zero temperature environments. Our 0.2mm fine-diameter thermocouple wire is vacuum-melted and drawn using diamond dies to ensure uniform cross-sectional geometry, ultra-smooth surface finish, and tight resistance tolerances throughout continuous spool lengths.

Key architectural highlights include:

• Optimized Positive Leg (Copper): Ultra-pure oxygen-free copper delivering linear electrical conductivity and minimal thermal drift.
• Matched Negative Leg (Constantan): Controlled 55% Cu / 45% Ni metallurgy providing precise thermal EMF output across steep temperature gradients.
• Micro-Diameter Flexibility: 0.2mm (AWG 32) dimension allows rapid response times (<0.1s) and effortless integration into tight sensor probes, micro-sheaths, and laboratory assemblies.

Maintains ultra-tight EMF curve tracking down to -200°C without magnetic transition anomalies or baseline signal hysteresis, making it the most dependable sensor pair for deep refrigeration and liquid gas monitoring.

Unlike iron-bearing sensor wires, the pure copper positive conductor and high-nickel constantan negative conductor provide natural immunity against oxidation in damp, condensing, and refrigerated atmospheres.

The low thermal mass of 0.2mm diameter wire guarantees instant thermal equilibration, minimizing heat conduction losses and insertion errors in delicate biological and microfluidic applications.

Each heat is vacuum induction melted (VIM) with batch-level spectrometer verification to ensure continuous spools share identical calibration curves and zero internal composition banding.

• Ultra-low temperature freezers (-80°C / -150°C)
• Liquid nitrogen (LN2) storage dewars and transfer lines
• Superconducting equipment monitoring

• Vaccine storage temperature validation
• Lyophilization (freeze-drying) chamber monitoring
• Blood bank and cryogenic biological repository telemetry

• Environmental test chamber calibration
• Micro-electronic component thermal profiling
• High-precision calorimetry and differential thermal analysis

From vacuum induction melting and hot rolling to continuous precision wire drawing and strand annealing, DLX maintains full lifecycle quality oversight over every meter of thermocouple alloy produced.

Every master spool undergoes thermal EMF batch testing across low-temperature calibration baths (-196°C liquid nitrogen, ice point 0°C, and boiling point 100°C) to guarantee compliance with the tightest international Special Limits of Error.

With a monthly specialized alloy capacity exceeding 1,200 metric tons and advanced multi-die fine wire drawing equipment, DLX delivers custom spool quantities, rapid lead times, and stable batch-to-batch pricing for global sensor OEMs and instrumentation distributors.

We support specialized conductor requirements including customized spool dimensions (DIN80 to DIN200), specific resistance matching, dynamic order quantities, and protective vacuum barrier packaging.

A: Type T (Copper-Constantan) exhibits higher sensitivity (≈40–43 μV/°C), superior homogeneity, and no magnetic phase transitions at sub-zero temperatures. Unlike Type K, Type T does not suffer from short-range ordering drift or magnetic anomalies near -200°C, delivering significantly higher accuracy in cryogenic and condensing environments.

A: We supply Class 1 / Special Tolerance Grade wire with an allowable deviation of ±0.5°C or ±0.4% (whichever is greater) across the standard operating range, with cryogenic calibration verification down to -196°C upon request.

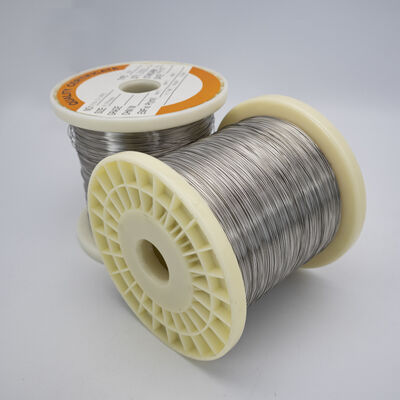

A: Fine 0.2mm wire is precision-wound on high-rigidity plastic spools (such as DIN100/DIN125) with tension-controlled traverse spooling, hermetically sealed in desiccant-packed moisture-proof bags, and enclosed in shock-absorbing export cartons.

A: Because 0.2mm thermocouple wire is tailored to specific OEM conductor and spooling requirements, we offer flexible, dynamic MOQ structures based on spool length and order volume. Standard batch orders typically dispatch within 7 to 15 business days.
