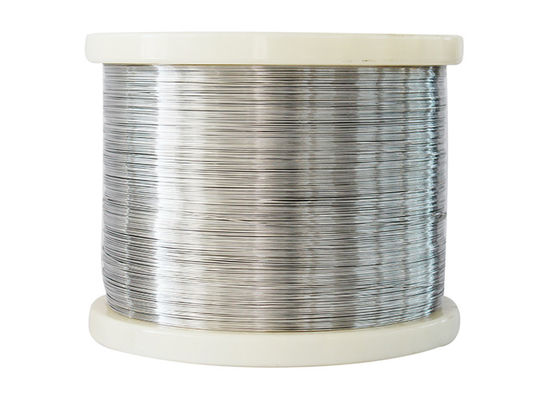

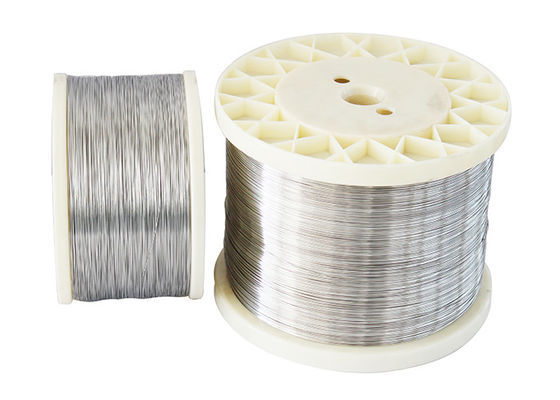

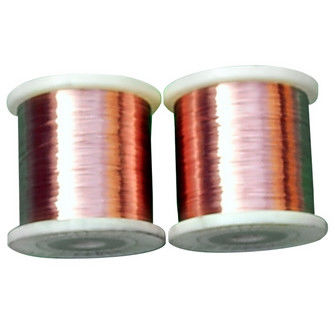

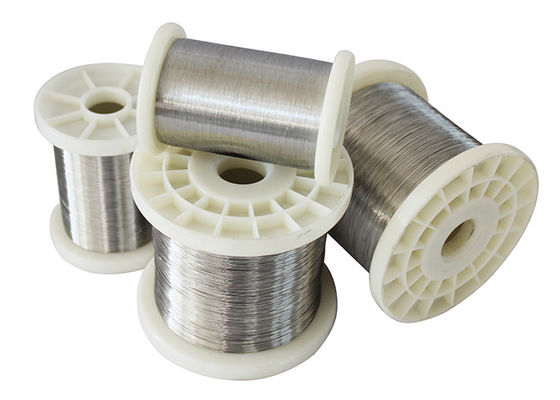

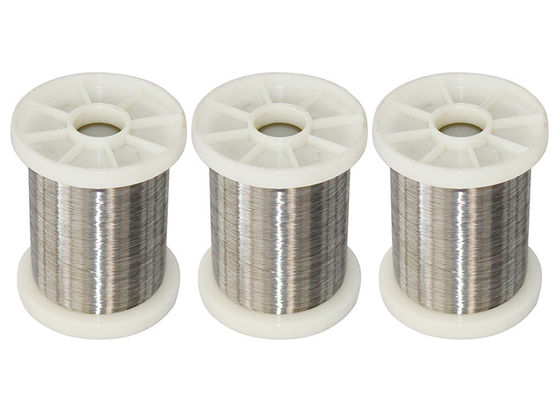

Type T TN TP 0.1mm Copper Constantan Thermocouple Bare Wire

Type T TN TP 0.1mm Copper Constantan Thermocouple Bare Wire

Product Details:

Place of Origin: China
Brand Name: DLX
Model Number: Type T Thermocouple Wire

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Thermocouple Bare Wire Color: Bright
Certificate: ISO9001 Temperature Range: -454 To 700F (-270 To 370C)
EMF Tolerance: +/- 1.0C Or +/- .75% Grade: IEC854-1/3
Positive: Copper Negative: Cu-Ni (constantan)
Special Limits Of Error: +/- 0.5C Or 0.4%
High Light:

TP Thermocouple Bare Wire

,

TN Bare Wire Thermocouple

,

0.1mm Thermocouple Bare Wire

Product Description

Type T TN TP 0.1mm Copper Constantan Thermocouple Bare Wire 0





  • Thermocouple Wire

The Type T is a very stable thermocouple and is often used in extremely low temperature applications such as cryogenics or ultra low freezers. It is found in other laboratory environments as well. The type T has excellent repeatability between –380F to 392F (–200C to 200C)..


The Type T thermocouple wire is composed of a copper (+) wire versus a nickel-45% copper (-) wire. The Type of thermocouple wire is frequently referred to as copper-constantan.

This type of thermocouple can be used in oxidizing, reducing, or inert atmospheres with a service temperature range between -200°C and 370°C (-330°F to 700°F).

The high temperature use of this thermocouple is also limited due to rapid oxidation of the copper element. The Type T thermocouple wire is one of the few thermocouples which have established limits of error for use in subzero and cryogenic applications. This is possible due to the Type T's superior corrosion resistance in moist environments.

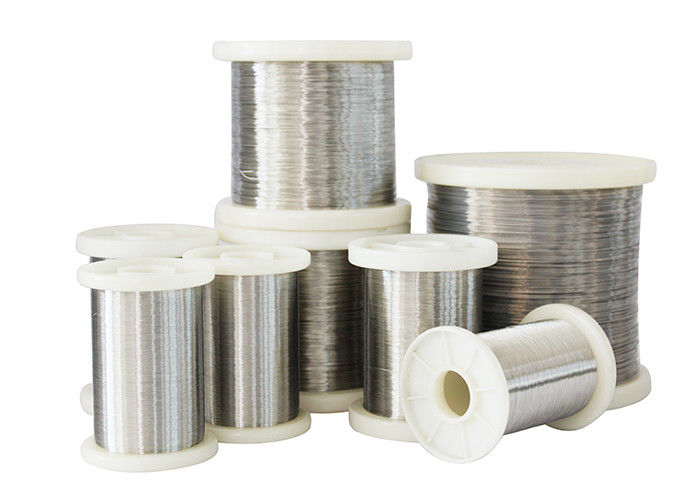

Type T TN TP 0.1mm Copper Constantan Thermocouple Bare Wire 1


Type T Accuracy (whichever is greater):

  • Standard: +/- 1.0C or +/- .75%
  • Special Limits of Error: +/- 0.5C or 0.4%

Type T Temperature Range:

  • Thermocouple grade wire, -454 to 700F (-270 to 370C)
  • Extension wire, 32 to 392F (0 to 200C)

Consideration for bare wire type T thermocouple applications:



  • Aerospace and Composites
  • Aluminum
  • Food and Pharmaceutical
  • Forgings
  • Glass, Ceramics, Clay Tiles, Bricks
  • Heat Treating
  • Petroleum, Downhole Oil & Gas
  • Sensor Manufacturing
  • Steel
  • Utilities Power Generation

  • Thermocouple Wire
Code Wires component of the thermocouple
  +Positive leg -Negative leg
N Ni-cr-si (NP) Ni-si-magnesium (NN)
K Ni-Cr (KP) Ni-Al(Si) (KN)
E Ni-Cr (EP) Cu-Ni<constantan> (EN)
J Iron (JP) Cu-Ni<constantan> (JN)
T Copper (TP) Cu-Ni<constantan> (TN)
B Platinum  Rhodium-30% Platinum Rhodium-6%
R Platinum Rhodium-13% Platinum
S Platinum Rhodium-10% Platinum



  • ​Standards
ASTM ANSI IEC DIN BS NF JIS GOST
(American Society for Testing and Materials) E 230 (American National Standard Institute) MC 96.1 (European Standard by the International Electrotechnical Commission 584)-1/2/3 (Deutsche Industrie Normen) EN 60584 -1/2 (British Standards) 4937.1041, EN 60584 - 1/2 (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 (Japanese Industrial Standards) C 1602 - C 1610 (Unification of the Russian Specifications) 3044






  • Size range

Wire: 0.1 to 8.0 mm.



  • Working temperature:



Diameter/mm Long time Working Short period Working
temperature/°C temperature/°C
0.2, 0.3 150 200
0.5, 0.8 200 250
1.0, 1.2 250 300
1.6, 2.0 300 350



Type T TN TP 0.1mm Copper Constantan Thermocouple Bare Wire 2Type T TN TP 0.1mm Copper Constantan Thermocouple Bare Wire 3
