Ultra-Fine Type E Thermocouple Wire 0.2mm for Precision Cryogenic Measurement

Engineered for mission-critical thermal monitoring, our 0.2mm High Sensitivity Type E Thermocouple Wire provides the highest thermoelectric EMF output among standard base-metal thermocouple alloys. Manufactured from balanced Chromel (Nickel-Chromium positive leg) and Constantan (Copper-Nickel negative leg) alloys, this fine-gauge wire ensures exceptional signal resolution, rapid thermal response, and long-term signal stability across temperature ranges from -200°C to +900°C.

The 0.2mm High Sensitivity Type E Thermocouple Wire is developed specifically for engineers and sensor manufacturers requiring maximum EMF output per degree Celsius (approximately 68 µV/°C at 0°C). This ultra-fine diameter ensures minimal heat sinking and rapid response times, making it ideal for micro-sensor assemblies, cryogenic research, laboratory instrumentation, and aerospace thermal profiling.

Produced through vacuum induction melting, precision multi-pass cold drawing, and continuous bright annealing, our Type E alloy pairs exhibit uniform metallurgical consistency, tight diameter tolerances, and clean surface finishes without surface oxidation or micro-cracking.

• Highest Thermoelectric Sensitivity (~68 µV/°C)
  Generates maximum EMF output among standard base-metal thermocouples, enabling sub-degree resolution and superior signal-to-noise ratio in precision sensor transmitters.

• Cryogenic to High-Temperature Stability (-200°C to +900°C)
  Delivers excellent linearity and chemical stability in cryogenic systems down to -200°C, with robust oxidation resistance up to +900°C.

• Ultra-Fine 0.20mm Gauge for Instant Thermal Response
  Low thermal mass profile ensures ultra-fast response times for micro-probes, semiconductor profiling, and compact sensor assemblies.

• Precision Diameter Tolerance & EMF Homogeneity
  Diamond-die cold drawing guarantees tight concentricity (±0.004 mm) and uniform thermoelectric consistency to prevent thermal drift.

• Non-Magnetic Alloy Pair for Low-Noise Signal Integrity
  Both Chromel (EP) and Constantan (EN) legs are non-magnetic, eliminating EMI noise in high-density industrial control and medical environments.

• Liquid nitrogen/helium storage temperature monitoring
• Superconducting system testing and biological sample cryo-freezers
• High-accuracy laboratory calorimeter sensors

• Flight test thermal sensors and boundary layer temperature probes
• Cabin environmental control systems (ECS)
• Satellite component thermal vacuum chamber profiling

• Wafer chuck thermal profiling tools
• Precision component burn-in and environmental test chambers
• Ultra-fast response micro-probes for electronic assembly lines

• Autoclave and sterilization validation temperature sensors
• Pharmaceutical lyophilization (freeze-drying) shelf probes
• Micro-fluidic diagnostic temperature feedback loops

As a premier Chinese manufacturer of precision resistance, heating, and thermocouple alloys, DLX operates an advanced production facility with a comprehensive smelting, hot rolling, cold drawing, and continuous bright annealing chain.

• Massive Production Scale: Backed by an integrated facility with a monthly capacity exceeding 1,200 metric tons, ensuring fast lead times and stable batch-to-batch continuity.
• Full-Traceability Quality Control: Every production spool is traceable to its original VIM (Vacuum Induction Melting) heat, accompanied by 100% continuous spark testing, laser micrometer diameter monitoring, and thermoelectric EMF calibration reports.
• Tailored Engineering Solutions: Offering customized spool sizes (DIN spools, coils), custom insulation coatings (PTFE, Kapton, Fiberglass), and paired duplex wire configurations engineered directly to client technical specifications.

Type E wire provides nearly 50% higher EMF output than Type K and significantly higher output than Type J, making it the preferred choice for applications requiring extreme sensitivity, sub-degree resolution, and low-temperature/cryogenic reliability. Additionally, Type E is non-magnetic, eliminating magnetic field interference common with Type J (Iron leg) or Type K (Alumel leg).

Type E wire excels in oxidizing and inert atmospheres. For vacuum or reducing environments, protective sheathing or ceramic insulation is recommended above 500°C to prevent selective oxidation of the negative leg alloy.

Each master coil is calibrated across multi-point temperature reference baths and tube furnaces against primary laboratory standards. Calibration test certificates detailing deviation curves and exact EMF output (in millivolts) are provided with every industrial shipment.

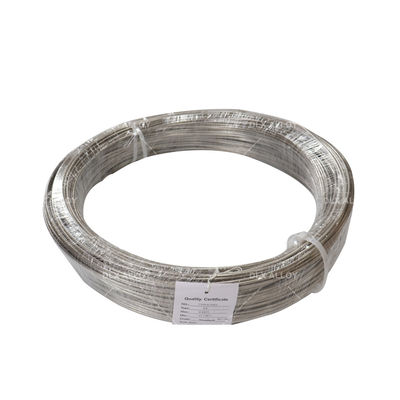

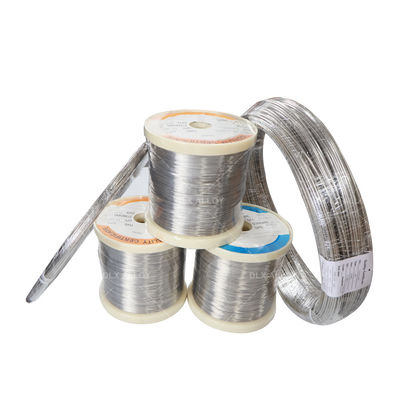

To prevent snagging, stretching, or surface scratching, 0.2mm wire is precision-level wound onto balanced plastic spools (such as DIN100 or DIN125), sealed in moisture-proof vacuum packaging, and reinforced within export-grade cartons or wooden crates.
