ISO9001 JP JN 1.2mm J Type Thermocouple Bare Wire

Brand Name:	DLX
Model Number:	Type J Thermocouple Wire
MOQ:	5
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	300 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Thermocouple Bare Wire

Color:

Bright

Certificate:

ISO9001

Temperature Range:

-346 To 1,400F (-210 To 760C)

EMF Tolerance:

+/- 2.2C Or +/- .75%

Grade:

IEC854-1/3

Positive:

Iron

Negative:

Cu-Ni

Special Limits Of Error:

+/- 1.1C Or 0.4%

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

300 tons per month

Highlight:

JN Thermocouple Bare Wire

1.2mm Thermocouple Extension Cable

J Type Thermocouple Bare Wire

Product Description

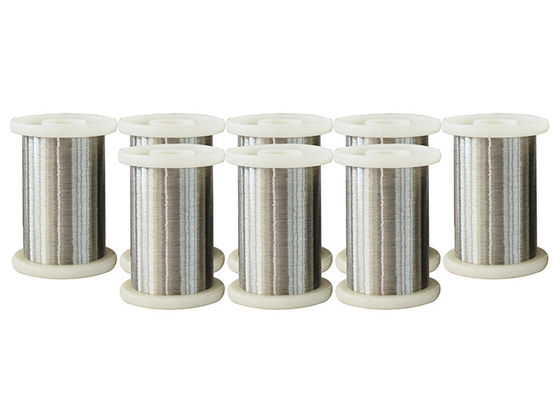

ISO9001 JP JN 1.2mm J Type Thermocouple Bare Wire 0

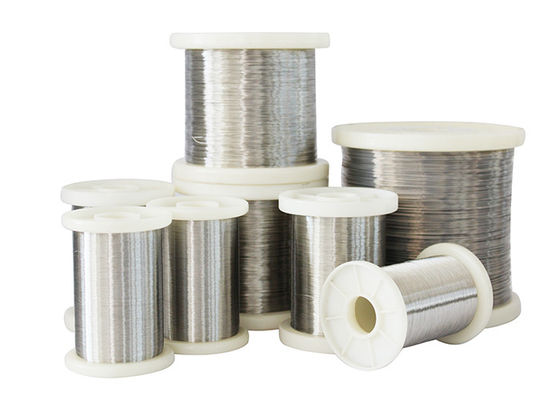

ISO9001 JP JN 1.2mm J Type Thermocouple Bare Wire 1

Thermocouple Wire

Fe- CuNi thermocouple (type J) is also named Iron-Constantan thermocouple.. It is used in vacuum, oxidizing, inert or reducing atmospheres. Iron element oxidizes rapidly at temperatures exceeding 538'C, and therefore heavier gauge wire is recommended for longer life at these temperatures.

Type J thermocouple has good resistance to oxidation and high EMF output against Platinum 67, with good temperature accuracy, sensitivity and stability. It is recommended for vacuum, oxidizing, reducing or inert atmospheres, but it can not be used in sulphurous atmosphere above 500ºC.

Type J Temperature Range:

Thermocouple grade wire, -346 to 1,400F (-210 to 760C)
Extension wire, 32 to 392F (0 to 200C)

Type J Accuracy (whichever is greater):

Standard: +/- 2.2C or +/- .75%
Special Limits of Error: +/- 1.1C or 0.4%

Consideration for bare wire type J thermocouple applications:

The Type J Is Well Suited To Oxidizing Atmospheres

Thermocouple Wire

Code	Wires component of the thermocouple
	+Positive leg	-Negative leg
N	Ni-cr-si (NP)	Ni-si-magnesium (NN)
K	Ni-Cr (KP)	Ni-Al(Si) (KN)
E	Ni-Cr (EP)	Cu-Ni<constantan> (EN)
J	Iron (JP)	Cu-Ni<constantan> (JN)
T	Copper (TP)	Cu-Ni<constantan> (TN)
B	Platinum Rhodium-30%	Platinum Rhodium-6%
R	Platinum Rhodium-13%	Platinum
S	Platinum Rhodium-10%	Platinum

Standards

ASTM	ANSI	IEC	DIN	BS	NF	JIS	GOST
(American Society for Testing and Materials) E 230	(American National Standard Institute) MC 96.1	(European Standard by the International Electrotechnical Commission 584)-1/2/3	(Deutsche Industrie Normen) EN 60584 -1/2	(British Standards) 4937.1041, EN 60584 - 1/2	(Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324	(Japanese Industrial Standards) C 1602 - C 1610	(Unification of the Russian Specifications) 3044

Size range

Wire: 0.1 to 8.0 mm.

Working temperature:

Diameter/mm	Long time Working	Short period Working
Diameter/mm	temperature/°C	temperature/°C
0.3,0.5	300	400
0.8,1.0,1.2	400	500
1.6,2.0	500	600
2.5,3.2	600	750

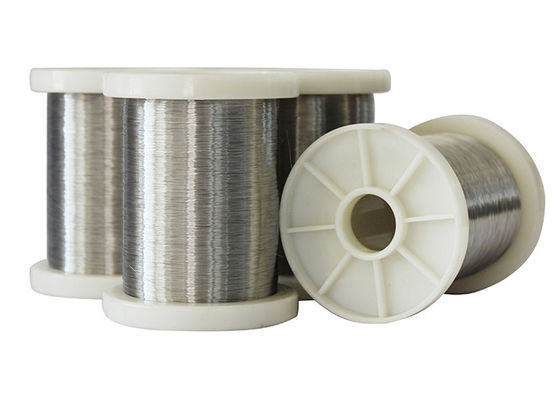

ISO9001 JP JN 1.2mm J Type Thermocouple Bare Wire 2
