Reliable 0.5mm Type J Thermocouple Wire Iron-Constantan for Plastic Injection Molding

Explore high-purity 0.5mm Type J (Iron-Constantan) thermocouple wire designed specifically for plastic injection molding nozzles, hot runners, and extrusion barrels. Exceptional thermoelectric stability and extended service life.

Maintaining tight thermal windows in plastic injection molding requires sensor conductors that resist drift under continuous thermal cycling and mechanical vibration. Our 0.5mm Type J Thermocouple Wire is manufactured through vacuum induction melting followed by multi-pass precision drawing and protective atmosphere continuous annealing.

• Calibrated Thermoelectric Homogeneity: Both the Iron and Constantan conductors undergo matched-spool calibration to guarantee uniform EMF linearity across the working temperature range.

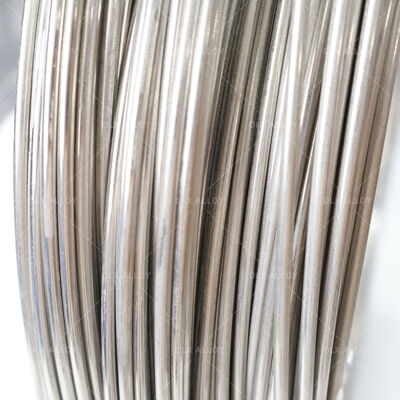

• Oxidation-Resistant Surface Quality: Mirror-drawn bright surface finish prevents surface scaling and premature degradation inside ceramic insulators or mineral-insulated sheath assemblies.
• Optimized for Reducing & Inert Atmospheres: Exceptional performance in vacuum, reducing, and inert environments typical of sealed sensor assemblies and hot runner systems.

The calibrated 0.5mm wire diameter delivers minimal thermal mass, enabling instantaneous temperature feedback to PID controllers in high-cycle injection molding cycles.

Every batch is matched and tested across the full thermal curve to ensure absolute repeatability between replacement thermocouple probes, eliminating recalibration downtime.

Uniform bright annealing ensures soft temper, allowing the wire to bend tightly around hot runner contours and nozzle bodies without micro-cracking or resistance shifts.

Unlike Type K wires which can suffer from selective oxidation ("green rot") in reducing environments, Type J Iron-Constantan conductors maintain robust chemical and thermoelectric integrity.

• Plastic Injection Molding Nozzles & Barrels: Provides localized temperature monitoring at heating zones to prevent plastic degradation, scorch marks, and uneven melt viscosity.
• Hot Runner Manifold Systems: Embedded thermocouple assemblies for multi-cavity precision molds demanding balanced thermal distribution.
• Plastic Extruders & Blow Molding Units: Long-term temperature tracking in continuous extrusion dies and feed throat cooling zones.
• Industrial Ovens & Packaging Equipment: Heat-sealing bars, vacuum thermoforming machinery, and curing tunnels operating below 750°C.

• Integrated Manufacturing Powerhouse: With a robust production capacity of 1,200 metric tons per month, we ensure reliable high-volume supply and short lead times for global sensor manufacturers.
• Full-Process Metallurgical Control: From vacuum induction melting (VIM) and precision hot/cold drawing to continuous bright annealing, every step is executed in-house.
• Rigorous EMF & Calibration Testing: 100% batch-tested for EMF gradient uniformity, dimensional roundness, and surface purity before dispatch.
• Tailored B2B Solutions: Custom spooling weights, customized dimensional tolerances, and duplex parallel/stranded conductor configurations available upon inquiry.

Type J (Iron-Constantan) offers a higher Seebeck coefficient (~50 to 55 µV/°C) within the typical plastics processing window (150°C to 400°C), providing superior sensitivity and noise resistance. Furthermore, it operates reliably in reducing and enclosed mold conditions without drifting.

In oxidizing environments, the pure Iron (JP) leg will oxidize rapidly at temperatures exceeding 550°C. For oxidizing atmospheres above 550°C, heavier gauge wires or protective ceramic/metallic sheaths are recommended.

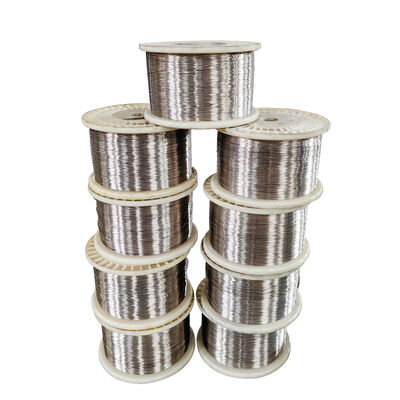

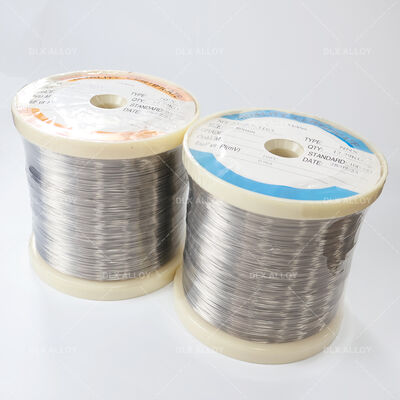

We supply 0.5mm Type J wire on precision DIN standard plastic spools (such as DIN 100, DIN 125, DIN 160, and DIN 200) with level layer winding to ensure smooth, tangle-free feeding on automatic coilers and stripping equipment.

Our standard MOQ starts flexibly at 5 kg per batch for standard specifications, supporting pilot sensor builds as well as continuous containerized volume orders.
