Precision 0.5mm Type K Thermocouple Wire for Industrial Furnaces

High-precision 0.5mm Type K thermocouple wire designed for accurate, repeatable temperature measurement in industrial heat-treating furnaces, kilns, and thermal processing equipment. Featuring high-purity positive (Chromel / KP) and negative (Alumel / KN) conductors, this wire guarantees Class 1 thermoelectric tolerance and long-term signal integrity under harsh oxidizing and inert furnace atmospheres.

The 0.5mm Type K thermocouple wire is the industry-benchmark temperature sensing conductor engineered for extreme thermal environments ranging from -200°C to +1260°C. Composed of a non-magnetic Nickel-Chromium positive leg (KP) and a magnetic Nickel-Alumel negative leg (KN), this wire exhibits a linear EMF-to-temperature characteristic with a sensitivity of approximately 41 µV/°C.

Manufactured using closed-loop vacuum induction melting and precision multi-die cold drawing, our 0.5mm diameter thermocouple conductors maintain uniform metallurgical structure, ultra-tight diameter tolerances (±0.008 mm), and consistent grain boundary stability. This ensures zero EMF deviation, superior mechanical ductility for flexible sensor fabrication, and high resistance to oxidation and sulfur corrosion in industrial vacuum, inert gas, and continuous atmospheric furnace systems.

• Class 1 Thermoelectric Precision: Tight control over trace elements and vacuum purification ensures high signal accuracy (±1.5°C or ±0.4%), minimizing calibration offsets in automated temperature regulation systems.
• Superior Oxidation and Scaling Resistance: Formulated with silicon and aluminum micro-alloying in the negative leg and stable chromium oxide film formation on the positive leg, preventing thermal fatigue and conductor degradation in oxidizing furnace atmospheres.
• Minimal EMF Drift in Thermal Cycling: Uniform recrystallized microstructure provides exceptional thermoelectric stability, eliminating signal fluctuations caused by temperature cycling and mechanical vibration.
• Optimized Cold-Forming Flexibility: Balanced annealing gives the 0.5mm wire high tensile strength combined with ≥20% elongation, allowing seamless welding, braiding, mineral-insulated cable assembly, and compact probe winding without embrittlement.
• Rigorous Lot-to-Lot Consistency: Each heat lot undergoes multi-point EMF calibration and spectroscopic verification to ensure zero variance across batch replacements.

• Industrial Heat Treatment Furnaces: Used in carburizing, annealing, hardening, and tempering furnace probe assemblies to maintain precise atmospheric temperature profiles.
• Metallurgical and Smelting Plants: Applied in molten metal holding furnaces, aluminum degassing stations, and foundry ladle preheaters.
• Ceramics and Glass Kilns: Installed in continuous tunnel kilns, shuttle kilns, and glass annealing lehrs requiring high-temperature durability up to 1200°C.
• Petrochemical and Chemical Processing: Integrated into flare stacks, cracking furnace sensor assemblies, and high-temperature catalytic reaction vessels.
• Sensor Manufacturing and OEM Instrumentation: Serves as the primary core wire for mineral insulated (MI) thermocouples, surface contact probes, and flexible ceramic bead insulated sensor harnesses.

• Integrated Full-Chain Production: From vacuum induction melting (VIM) and electro-slag remelting (ESR) to precision wire drawing and continuous bright annealing, every step is executed under strict in-house quality protocols.

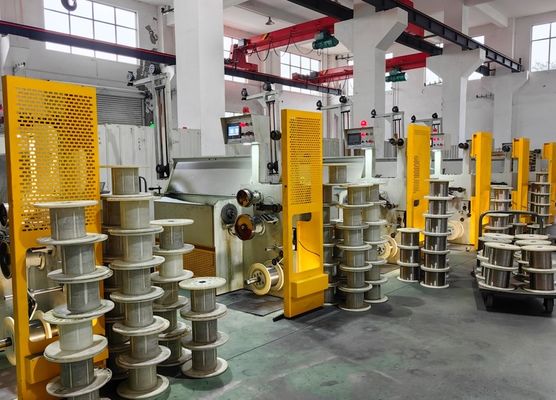

• Substantial Monthly Capacity: Operating high-speed multi-pass drawing lines and automated annealing furnaces with a reliable supply capacity of over 1,200 metric tons per month.
• 100% Thermal EMF & Dimensional Verification: Every master spool is calibrated against high-precision reference standards across multiple temperature benchmarks (200°C, 400°C, 800°C, 1000°C, 1200°C) with full traceability.

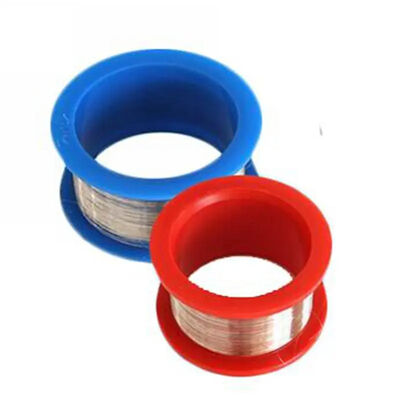

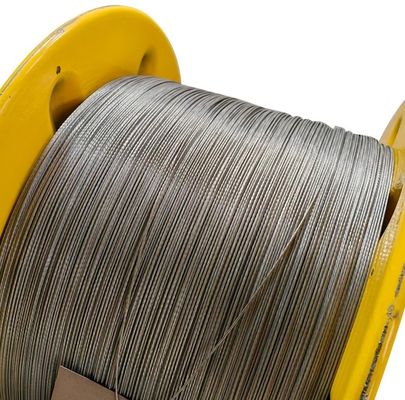

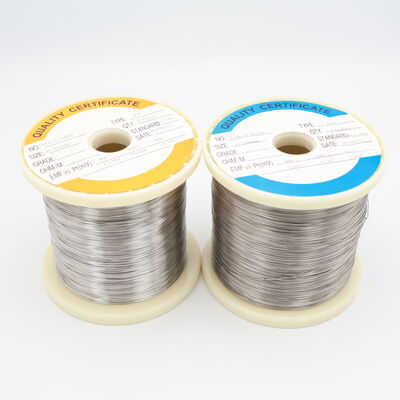

• Customized B2B Supply Capabilities: Flexible packaging options (precision spools, dynamic coil weights), custom diameter tolerances down to ±0.005 mm, and tailored alloy matching to satisfy specific OEM instrument requirements.

A1: The recommended maximum continuous operating temperature in oxidizing or clean inert furnace atmospheres is 1100°C. For short-term peak exposure, the wire can withstand up to 1260°C. For reducing, sulfidizing, or alternating oxidizing/reducing atmospheres, protective ceramic or metal sheathing is advised to prevent "green rot" selective oxidation.

A2: The positive leg (KP / Chromel) is non-magnetic, slightly stiffer, and typically has an oxidized or bright metallic finish. The negative leg (KN / Alumel) is noticeably magnetic and contains aluminum and manganese additions. A simple magnet test readily separates the two conductors.

A3: Our wire conforms strictly to Class 1 / Special Tolerance limits, offering an accuracy of ±1.5°C in the range of -40°C to 375°C, and ±0.4% of the measured temperature from 375°C to 1000°C, which is superior to standard commercial grades.

A4: Yes. The annealed wire possesses high weldability. Common junction welding techniques include tungsten inert gas (TIG) welding, laser welding, and capacitive discharge welding. A protective argon shield during welding is recommended to form a clean, oxide-free spherical junction bead.
