Biocompatible Pure Nickel Wire For Aerospace Applications
| Place of Origin | China |
|---|---|
| Brand Name | DLX |
| Model Number | pure nickel wire |
| Minimum Order Quantity | 2kg |
| Price | $20-$300/kg |

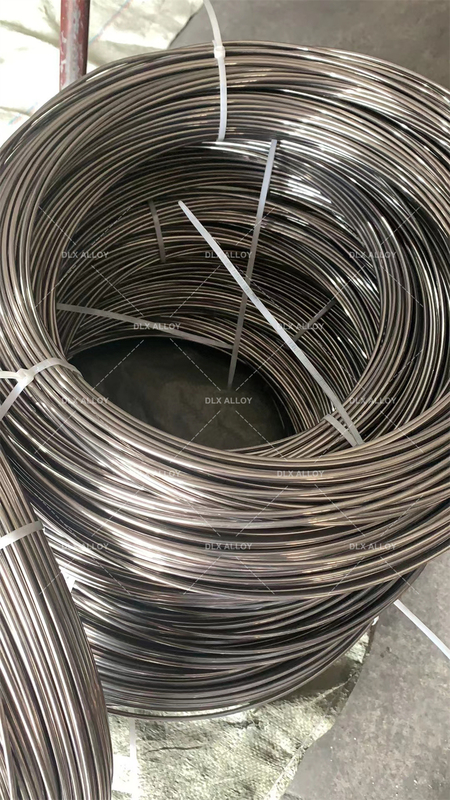

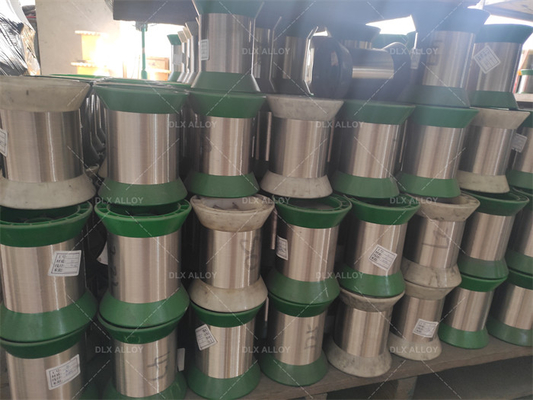

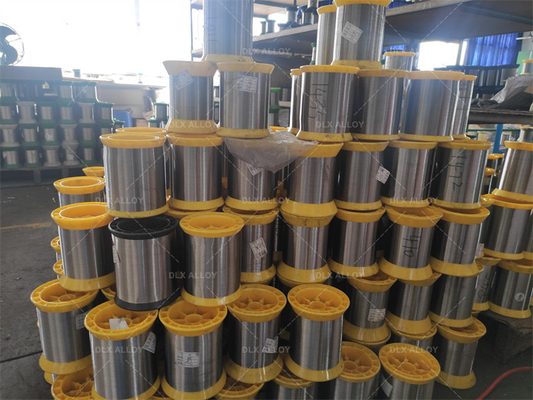

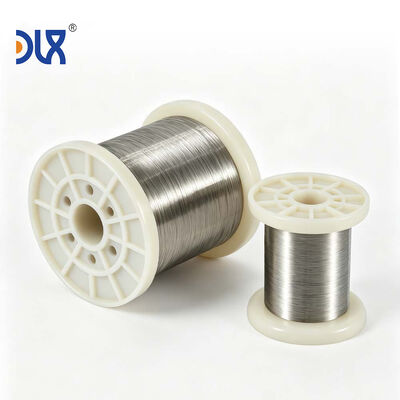

| Packaging Details | Spool package with Carton box, Coil package with polybag for pure nickel wire 0.025mm |
| Delivery Time | 5-21 days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pure Nickel Wire | Grade | 200 201 N4 N6 |
|---|---|---|---|
| Certificate | ISO9001 | Material | Ni |
| Elongation (≥ %) | 35 | Ni(min) | 99.6% |
| Application | Industry | Melting Point | 1435-1445℃ |
| M.O.Q | 1KG | Delivery | 7-25 Days |
| Shape | Wire | Size | 0.025-10mm |
| Highlight | Biocompatible Pure Nickel Wire,Aerospace Applications Nickel Wire,Aerospace Applications Pure Nickel Wire |
||
Product Description
Biocompatible Pure Nickel Wire For Aerospace Applications
- Pure nickel alloy
Experience unmatched versatility with our premium pure nickel wire, designed to meet the diverse needs of modern industries. From aerospace to electronics, our wire excels in various applications requiring high temperature resistance and electrical conductivity. Its flexibility and strength make it easy to work with, while its exceptional thermal stability ensures long-term durability and performance in even the most challenging conditions.
| Grade | Chemical Composition(%) | ||||||||
| Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe | |
| N4/201 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
| N6/200 | 99.5 | 0.1 | 0.1 | 0.05 | 0.1 | 0.1 | 0.005 | 0.002 | 0.1 |
- Physical Data
| Size Range | 0.025 to 8.0 mm |  |
| Density | 8.89g/cm3 | |
| Specific Heat | 0.109(456 J/kg.℃) | |
| Electrical Resistivity | 0.096×10-6ohm.m | |
| Melting Point | 1435-1446℃ | |
| Thermal Conductivity | 70.2 W/m-K | |
| Mean Coeff Thermal Expansion | 13.3×10-6m/m.℃ | |
| Tensile Strength | 462 Mpa | |
| Yield Strength | 148 Mpa | |
| Elongation | 47% |
- Production Process
1. Nickel ore extraction: Nickel is extracted from nickel ore through mining and processing.
2. Nickel refining: The extracted nickel is refined to remove impurities and achieve high purity.
3. Nickel melting: The refined nickel is melted in a furnace to form a molten nickel alloy.
4. Wire drawing: The molten nickel alloy is then drawn through a series of dies to reduce its diameter and form a continuous wire.
5. Annealing: The nickel wire is annealed to relieve internal stresses and improve its ductility.
6. Surface treatment: The nickel wire may undergo surface treatment processes such as cleaning, coating, or plating to enhance its properties or appearance.
7. Quality control: The final nickel wire product is inspected and tested to ensure it meets the required specifications before packaging and distribution.
