Type K Nickel Chromel Alumel KP KN Thermocouple Wire K Type Thermocouple

Place of Origin China
Brand Name DLX
Certification CE,ROHS
Model Number K type thermocouple wire
Minimum Order Quantity 5
Packaging Details Spool package with Carton box, Coil package with polybag for K type thermocouple wire
Delivery Time 5-21 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name K Type Thermocouple Bare Wire Color Bright
Certificate ISO9001 Temperature Range –454 To 2,300F (–270 To 1260C)
Grade IEC854-1/3 Positive Ni-Cr
Negative Ni-Al(Si) Special Limits Of Error ± 1.1C Or 0.4%
Standard ± 2.2C% Or ±.75% Maximum Continuous Temperature 1,100C.
Highlight

KN Thermocouple Wire

,

ISO9001 K Type Thermocouple Wire

,

KP Thermocouple Bare Wire

Leave a Message
Product Description

Type K Nickel Chromel Alumel KP KN Thermocouple Wire K Type Thermocouple 0

type k nickel chromel alumel KP KN thermocouple wire k type thermocouple price


  • K type thermocouple wire

There are multiple types and grades of thermocouple wire.Each type of thermocouple wire has a specific combination of metal alloys.This combination is what defines the type of thermocouple.Thermocouple grade wire is used to manufacture thermocouple probes.Thermocouple grade wire is normally used for the junction and inside the stem sheath.



Type K Temperature Range:

  • Thermocouple grade wire, –454 to 2,300F (–270 to 1260C)
  • Extension wire, 32 to 392F (0 to 200C)


Type K Accuracy (whichever is greater):

  • Standard: +/- 2.2C or +/- .75%
  • Special Limits of Error: +/- 1.1C or 0.4%


Consideration for bare wire type T thermocouple applications:



  • Aerospace and Composites
  • Aluminum
  • Food and Pharmaceutical
  • Forgings
  • Glass, Ceramics, Clay Tiles, Bricks
  • Heat Treating
  • Petroleum, Downhole Oil & Gas
  • Sensor Manufacturing
  • Steel
  • Utilities Power Generation

  • Thermocouple Wire
Code Wires component of the thermocouple
  +Positive leg -Negative leg
N Ni-cr-si (NP) Ni-si-magnesium (NN)
K Ni-Cr (KP) Ni-Al(Si) (KN)
E Ni-Cr (EP) Cu-Ni<constantan> (EN)
J Iron (JP) Cu-Ni<constantan> (JN)
T Copper (TP) Cu-Ni<constantan> (TN)
B Platinum  Rhodium-30% Platinum Rhodium-6%
R Platinum Rhodium-13% Platinum
S Platinum Rhodium-10% Platinum



  • ​Standards
ASTM ANSI IEC DIN BS NF JIS GOST
(American Society for Testing and Materials) E 230 (American National Standard Institute) MC 96.1 (European Standard by the International Electrotechnical Commission 584)-1/2/3 (Deutsche Industrie Normen) EN 60584 -1/2 (British Standards) 4937.1041, EN 60584 - 1/2 (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 (Japanese Industrial Standards) C 1602 - C 1610 (Unification of the Russian Specifications) 3044






  • Size range

Wire: 0.1 to 8.0 mm.



  • Working temperature:



Diameter/mm Long time Working Short period Working
temperature/°C temperature/°C
0.2, 0.3 150 200
0.5, 0.8 200 250
1.0, 1.2 250 300
1.6, 2.0 300 350

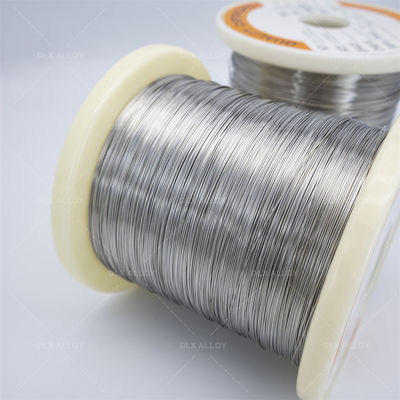

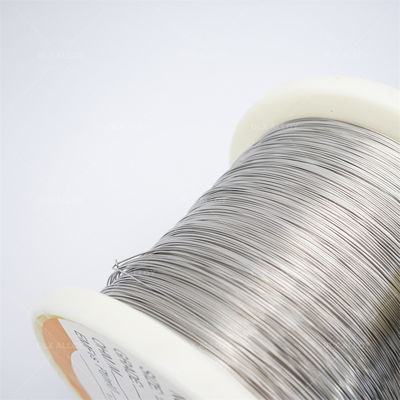

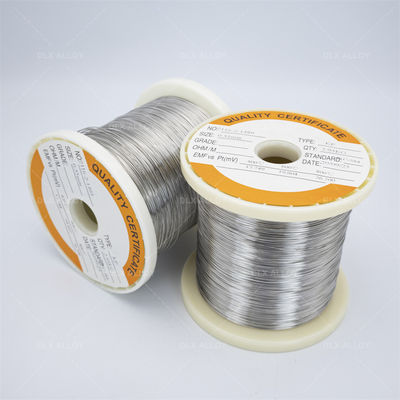

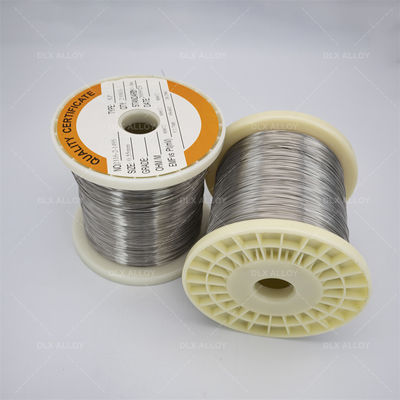

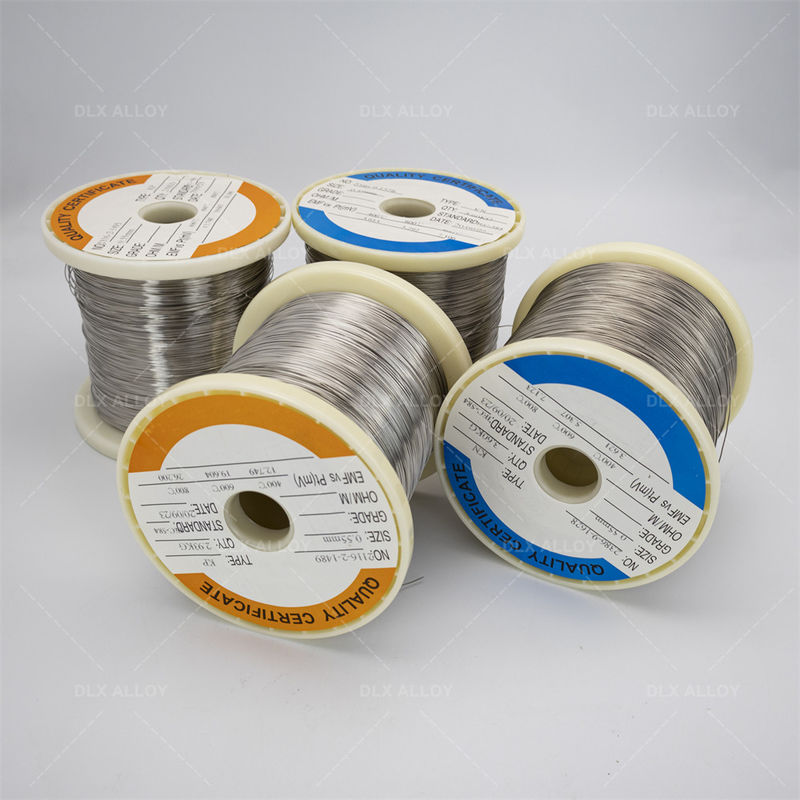

Type K Nickel Chromel Alumel KP KN Thermocouple Wire K Type Thermocouple 1Type K Nickel Chromel Alumel KP KN Thermocouple Wire K Type Thermocouple 2Type K Nickel Chromel Alumel KP KN Thermocouple Wire K Type Thermocouple 3

contact us:

email:sales7@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Product Available Size:
Wires: Diameter0.5~7.5mm

Rods:Diameter8.0~200mm
Strip:Thickness0.5~2.5mm, Width5~180mm
Plate: Customized
Tube: Customized



After sale service:
24 hours on alibaba for after sale service
Alibaba trade assurance
