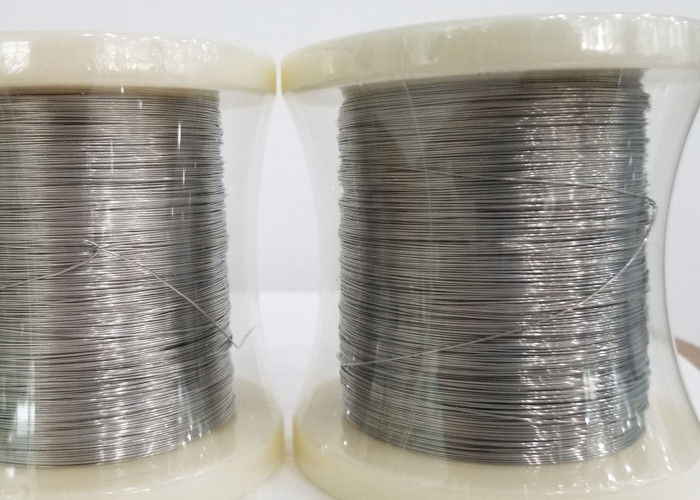

Platinum Rhodium Thermocouple Bare Wire S Type 0.5mm

Platinum Rhodium Thermocouple Bare Wire S Type 0.5mm

Platinum Rhodium Thermocouple Bare Wire S Type 0.5mm

Brand Name: DLX
Model Number: S type Thermocouple Wire
MOQ: 1
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
Thermocouple Bare Wire
Color:
Bright
Certificate:
ISO9001
Temperature Range:
-58 To 2700F (-50 To 1480C)
EMF Tolerance:
+/- 1.5C Or +/- .25%
Grade:
IEC854-1/3
Positive:
Platinum Rhodium
Negative:
Platinum
Special Limits Of Error:
+/- 0.6C Or 0.1%
Packaging Details:
Spool package with Carton box, Coil package with polybag for S type Thermocouple Wire
Supply Ability:
300 tons per month
Highlight:

S Type Thermocouple Bare Wire

,

0.5mm Platinum Thermocouple Wire

,

Platinum Thermocouple Bare Wire

Product Description

Platinum Rhodium Thermocouple Bare Wire S Type 0.5mm 0



0.5mm S type Platinum Rhodium Thermocouple Bare Wire




  • Thermocouple Wire

Factory directly supply Type K thermocouple bare wire

We offer 0.3mm/0.4mm/0.5mm B/R/S type Platinum Rhodium Thermocouple Bare Wire that can be availed in different sizes as per the requirements of the clients.
We offer Bare Thermocouple Wires that can be availed in different diameter and length as per the requirements of the clients. They are always supplied in pair and calibrated. The Platinum Rhodium Thermocouple Wires that we deal in are used in varied applications related to the measurement of high temperature.

1)Type B (Platinum / Rhodium)
Suited for high temperature measurements up to 1800 °C. Unusually type B thermocouples (due to the shape of their temperature /
voltage curve) give the same output at 0 °C and 42 °C. This makes them useless below 50 °C.

2)Type R (Platinum / Rhodium)
Suited for high temperature measurements up to 1600 °C. Low sensitivity (10 µV/ °C ) and high cost makes them unsuitable for
general purpose use.

3)Type S (Platinum / Rhodium)
Suited for high temperature measurements up to 1600 °C. Low sensitivity (10 µV/ °C ) and cost makes them unsuitable for general
purpose use. Due to its high stability type S is used as the standard of calibration for the melting point of gold (1064.43°C).
  • Thermocouple Wire
Code Wires component of the thermocouple
  +Positive leg -Negative leg
N Ni-cr-si (NP) Ni-si-magnesium (NN)
K Ni-Cr (KP) Ni-Al(Si) (KN)
E Ni-Cr (EP) Cu-Ni<constantan> (EN)
J Iron (JP) Cu-Ni<constantan> (JN)
T Copper (TP) Cu-Ni<constantan> (TN)
B Platinum  Rhodium-30% Platinum Rhodium-6%
R Platinum Rhodium-13% Platinum
S Platinum Rhodium-10% Platinum



  • ​Standards
ASTM ANSI IEC DIN BS NF JIS GOST
(American Society for Testing and Materials) E 230 (American National Standard Institute) MC 96.1 (European Standard by the International Electrotechnical Commission 584)-1/2/3 (Deutsche Industrie Normen) EN 60584 -1/2 (British Standards) 4937.1041, EN 60584 - 1/2 (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 (Japanese Industrial Standards) C 1602 - C 1610 (Unification of the Russian Specifications) 3044





  • Size range

Wire: 0.1 to 8.0 mm.



  • Working temperature:



Diameter/mm Type Long time Working Short period Working
temperature/°C temperature/°C
0.5 S 1300 1600
0.5 R 1300 1600
0.5 B 1600 1700





  • Chemical Composition
Conductor Name Polarity Code Pt% Rh%
Pt90Rh Positive SP 90 10
Pt Negative SN,RN 100 --
Pt87Rh Positive RP 87 13
Pt70Rh Positive BP 70 30
Pt94Rh Negative BN 94 6





Platinum Rhodium Thermocouple Bare Wire S Type 0.5mm 1
