AWS A5.14 ErNiCu 7 Monel 400 Monel 400 1.6mm welding wire

Product Details

Place of Origin: China Jiangsu

Brand Name: DLX

Certification: CE,ROHS

Model Number: ErNiCu 7

Payment & Shipping Terms

Minimum Order Quantity: 15

Packaging Details: Spool package with Carton box, Coil package with polybag

Delivery Time: 5-20 Days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 500 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

1.6mm Monel 400 welding wire

,

ErNiCu 7 Monel 400 welding wire

,

AWS A5.14 Monel 400 welding wire

Material:
Nickel,Copper. Ti
Elongation:
≥30 %
Density:
8.70 G/cm3
Tensile Strength Rm N/mm²:
75,000 PSI
Yieldstrength R P0. 2 N/mm²:
52,000 PSI
Melting Point:
1240-1280℃
Certificates:
AWS 5.14 Class ERNiCu-7
Grade:
ASME SFA 5.14 Class ERNiCu-7
Material:
Nickel,Copper. Ti
Elongation:
≥30 %
Density:
8.70 G/cm3
Tensile Strength Rm N/mm²:
75,000 PSI
Yieldstrength R P0. 2 N/mm²:
52,000 PSI
Melting Point:
1240-1280℃
Certificates:
AWS 5.14 Class ERNiCu-7
Grade:
ASME SFA 5.14 Class ERNiCu-7
Description

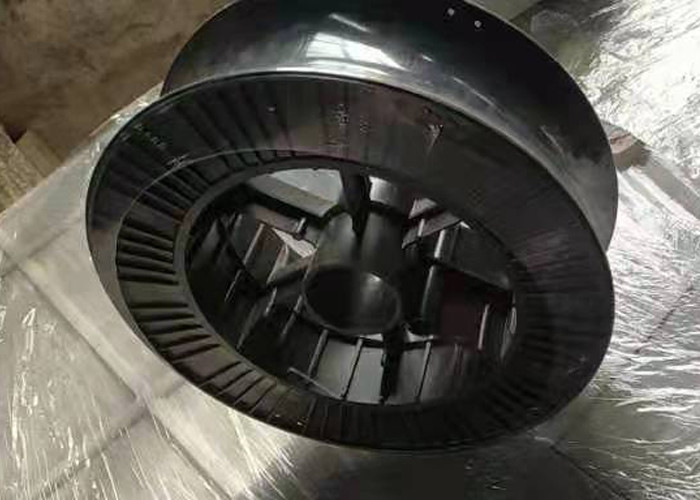

AWS A5.14 ErNiCu 7 Monel 400 Monel 400 1.6mm welding wire

AWS A5.14 ErNiCu 7 Monel 400 Monel 400 1.6mm welding wire 0





Nickel Based Welding Wire



DLX alloy produce nickel based welding wire. ERNiCu-7 is one of the nickel welding wire series. ERNiCu-7 is a nickel-based filler metal for welding. Cited properties are appropriate for the as-welded condition. ERNiCu-7 is the AWS designation for this material. N04060 is the UNS number.

It is used for joining base materials such as UNS number NO4400, NO4405 and NO5500. This alloy can be used for dissimilar welding applications using various nickel-copper alloys to nickel 200 and to copper-nickel alloys. This can be used for MIG overlay on steel after a first layer with nickel 208.


Weling series:
ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCr-7,ERNiCu-7,ERNi-1, ER70S-6.

Standard: Conforms to Certification AWS A5.14 ASME SFA A5.14

Size: 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM

Form: MIG(15kgs/spool), TIG(5kgs/box),Strip




Chemical Properties of ErNiCu-7





Item C Mn Fe P S Si Cu Ni Co Al Ti Cr Nb+Ta Mo V W Rest
ERNiCu-7 0.15 4 2.5 0.02 0.015 1.25 rest 62-69 N/A 1.25 1.5-3 N/A N/A N/A N/A N/A ≤0.50





Weling series:
ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCr-7,ERNiCu-7,ERNi-1, ER70S-6.

Standard: Conforms to Certification AWS A5.14 ASME SFA A5.14

Size: 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM

Form: MIG(15kgs/spool), TIG(5kgs/box),Strip

Nickel Welding Wire    Nickel Welding Wire    Nickel Welding Wire   Nickel Welding Wire


  • Size we could offer



MIG (15kg/spool), Size
    0.8 1.2 2.4 3.2mm
TIG (5kg/box),Strip





CHANGZHOU DLX ALLOY COMPANY was establish in 2016,our factory established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate.Our factory is becoming a high-tech company,We are professional in researching and producing special alloy material.The production process include melting,drawing,heat treatment,finishing and testing.We offer super alloy,welding wire,corrosion resistance alloy,precision alloy,FeCrAl alloy,NiCr alloy,CuNi alloy,in the form of wire,strip,ribbon,bar,tube,plate and etc.The administrative principle of our company is "intensifying inner supervision, complying with technical process and quality control, continuously adopting new technology to ensure the product quality". We employ some senior engineers to instruct technology, apply new technology and research new products. Our operation principle is "Quality first, Customer first". All the staff of our company would like to provide high quality and reasonably priced products for clients at home and abroad, and to make your products more competitive.
