ASME SFA A5.14 ERNiCr-3 3.2mm MIG Nickel Welding Wire with High Tensile Strength and Elevated Temperature Resistance

Name: ASME SFA A5.14 ERNiCr-3 3.2mm MIG Nickel Welding Wire with High Tensile Strength and Elevated Temperature Resistance
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: ErNiCr-3
Price: 37.00 USD
Availability: InStock

Brand Name:	DLX
Model Number:	ErNiCr-3
MOQ:	15
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	300 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Nickel

Elongation:

≥22 %

Density:

8.20 G/cm3

Tensile Strength Rm N/mm²:

≥600

Yieldstrength R P0. 2 N/mm²:

≥360

Melting Point:

1320-1370℃

Certificates:

AWS A5.14/A5.14M:2009

Packaging Details:

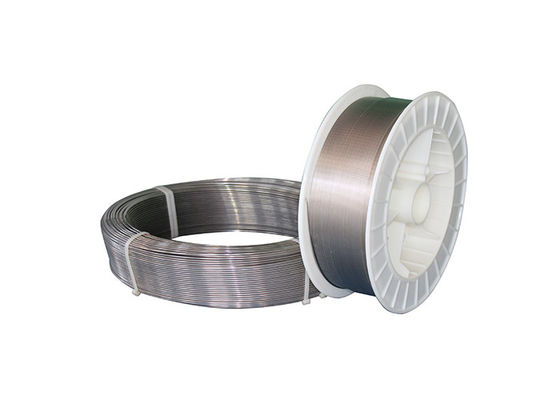

Spool package with Carton box, Coil package with polybag

Supply Ability:

300 tons per month

Highlight:

ASME SFA A5.14 Nickel Welding Wire

ErNiCr 3 Nickel Chromium Iron Alloy

3.2mm Mig Nickel Welding Wire

Product Description

ASME SFA A5.14 ErNiCr 3 3.2mm Mig Nickel Welding Wire

Nickel Based Welding Wire

ERNiCr-3 has a nominal composition (wt.-%) of 72 Ni, 20 Cr, 3 Mn, 2.5 Nb + Ta. This filler metal is used for welding nickel-chromium-iron alloys (ASTM B 163, B 166, B 167, and B 168 having UNS Number N06600) to itself and for the clad side of joints in steel clad with nickel-chromium-iron alloy.

Applications

This wire can be used for:

Surfacing steel with nickel-chromium-iron weld metal
Dissimilar welding of nickel-base alloys
Joining steel to stainless steel or nickel-base alloys using GTAW, GMAW, SAW, and PAW processes

Key Features

High strength and good corrosion resistance
Resists oxidation and delivers creep-rupture strength at elevated temperatures
Ideal for desalination plants - resists pitting corrosion and stress-corrosion cracking in chloride environments
Suitable for cryogenic to elevated temperature applications
Common uses include piping, furnace equipment, and petrochemical/power generation plants

Welding Series

ERNiCrMo-3, ERNiCrMo-4, ERNiCrMo-13, ERNiCrFe-3, ERNiCrFe-7, ERNiCr-3, ERNiCr-7, ERNiCu-7, ERNi-1, ER70S-6.

Specifications

Standard: Conforms to Certification AWS A5.14 ASME SFA A5.14

Available Sizes: 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM

Form: MIG (15kgs/spool), TIG (5kgs/box), Strip

Chemical Properties of ErNiCr-3

Chemical	C	Mn	Fe	P	S	Si	Ti	Ni	Cu	Cr	Nb+Ta	Other
Composition Wt.%	≤0.10	2.5~3.5	≤3.0	≤0.03	≤0.015	≤0.5	≤0.75	≥67	≤0.5	18~22	2~3	≤0.5

Available Sizes

Type	Packaging	Available Sizes (mm)
MIG	15kg/spool	0.8, 1.2, 2.4, 3.2
TIG	5kg/box, Strip	0.8, 1.2, 2.4, 3.2
