ASME SFA A5.14 Certified ERNiCrMo-13 Nickel Welding Wire 1.6mm Diameter for Alloy 59 Matching in MIG and TIG Forms

Name: ASME SFA A5.14 Certified ERNiCrMo-13 Nickel Welding Wire 1.6mm Diameter for Alloy 59 Matching in MIG and TIG Forms
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: ERNiCrMo-13
Price: 37.00 USD
Availability: InStock

Brand Name:	DLX
Model Number:	ERNiCrMo-13
MOQ:	15
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	300 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Ni, Mo, Cr

Elongation:

≥22 %

Density:

8.60 G/cm3

Tensile Strength Rm N/mm²:

≥600

Yieldstrength R P0. 2 N/mm²:

≥360

Melting Point:

1310-1360℃

Certificates:

AWS A5.14 / ASME SFA A5.14

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

300 tons per month

Highlight:

ASME SFA A5.14 Nickel Welding Wire

ERNiCrMo 13 Aluminum Chromium Alloy

1.6mm Nickel Welding Wire

Product Description

ASME SFA A5.14 ERNiCrMo 13 1.6mm Nickel Welding Wire

Nickel Based Welding Wire

The nickel alloy welding wire ERNiCrMo-13 is a nickel-chromium-molybdenum alloy with extra low carbon and silicon contents. It offers excellent corrosion resistance, high mechanical strength, and superior thermal stability.

Due to its low silicon and carbon contents and absence of tungsten, Pinnacle Alloys ERNiCrMo-13 resists grain-boundary precipitation during hot forming and welding. This makes it ideal for welding in chemical processing facilities for both oxidizing and reducing media, with exceptional weldability and minimal hot cracking sensitivity.

Key Features

Matches nickel base alloy commonly known as alloy 59
High molybdenum content similar to alloys C276
Enhanced performance in oxidizing media with 23% chromium
Provides tough Nb-free weld metal for dissimilar welds
Suitable for superaustenitic and superduplex stainless steel applications

Available Nickel Alloy Welding Wire Series

ERNiCrMo-3, ERNiCrMo-4, ERNiCrMo-13, ERNiCrFe-3, ERNiCrFe-7, ERNiCr-3, ERNiCr-7, ERNiCu-7, ERNi-1, ER70S-6

Product Specifications

Standard	Conforms to Certification AWS A5.14 ASME SFA A5.14
Available Sizes	0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM

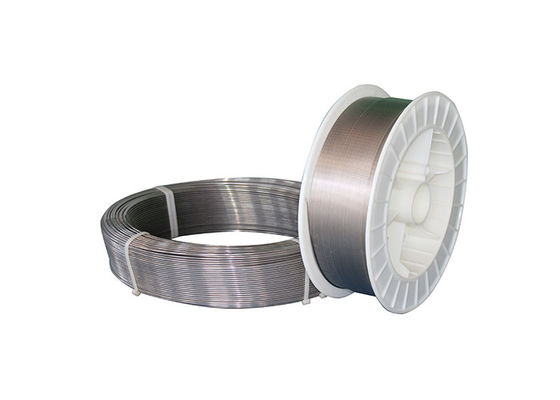

Form	MIG (15kgs/spool), TIG (5kgs/box), Strip

Chemical Properties of ERNiCrMo-13

C	Mn	Si	Fe	S	P	Cu	Al	Co	Ni	Cr	Mo
max 0.01	max 0.5	max 0.5	max 1.5	max 0.01	max 0.015	max 0.5	0.1-0.4	max 0.3	Balance	22-24	15.0-16.5

Available Packaging Options

MIG	15kg/spool	Available in 0.8mm, 1.2mm, 2.4mm, 3.2mm
TIG	5kg/box	Available in strip form
