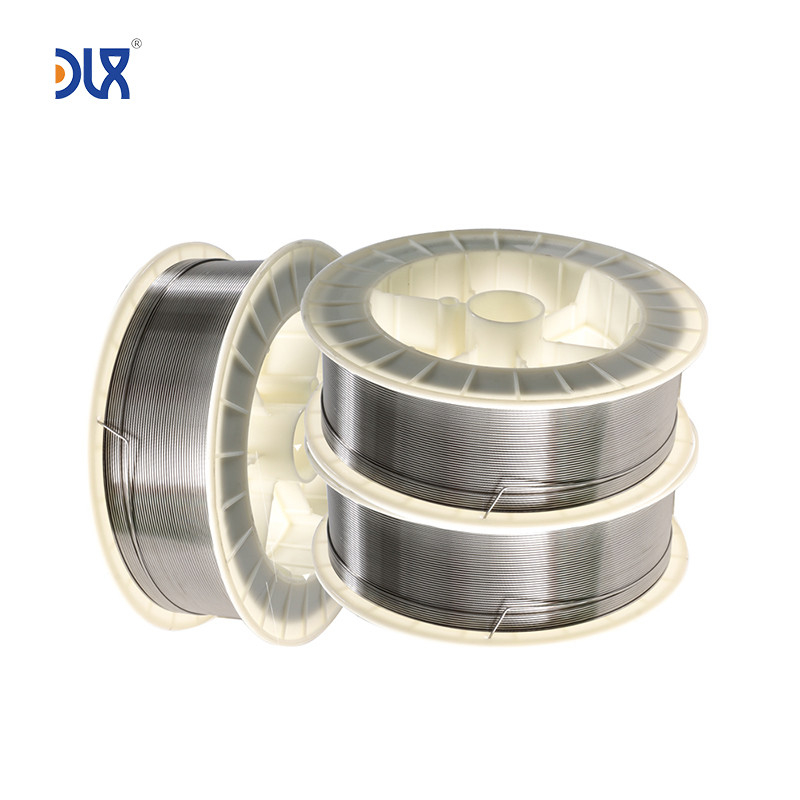

1.20mm 1.60mm Nickel Alloy ERNiCrMo-3 ERNiCrMo-4 nickel Welding Wire

Name: 1.20mm 1.60mm Nickel Alloy ERNiCrMo-3 ERNiCrMo-4 nickel Welding Wire
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: ERNiCrMo-3
Price: 37.00 USD
Availability: InStock

Brand Name:	DLX
Model Number:	ERNiCrMo-3
MOQ:	15
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	300 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Ni, Mo, Cr

Elongation:

≥30%

Density:

8.40 G/cm3

Tensile Strength Rm N/mm²:

114,000 Psi

Yieldstrength R P0. 2 N/mm²:

66,000 Psi

Certificates:

AWS A5.14 ASME SFA 5.14

Packaging Details:

Spool package with Carton box, Coil package with polybag for ERNiCrMo-3

Supply Ability:

300 tons per month

Highlight:

1.60mm Nickel Alloy Welding Wire

ERNiCrMo-3 Welding Wire

ASME Nickel Alloy Welding Wire

Product Description

1.20mm 1.60mm Nickel Alloy ERNiCrMo-3 ERNiCrMo-4 nickel Welding Wire 0

1.20mm 1.60mm Nickel alloy ERNiCrMo-3 Welding Wire

Nickel Alloy MIG Welding Wire Inconel 625 Wire price per kg

Inconel 625 welding wire ERNiCrMo-3 material is suitable for the welding of nickel based alloys such as Inconel 625 and Incoloy 825, but also for dissimilar welds, e. G. Between stainless and nickel-based alloys and mild steel.

Standard: AWS A5.14 EN18274 ,ASME II, SFA-5.14, ERNiCr-3

Size:0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM

Form:MIG(15kg/spool), TIG(5kg/box)

Applications:used for welding the INCONEL ALLOY 600/825/25-6MO, and other stainless steel with Mo by the way of gas metal arc welding,tungstun-inert-gas arc welding.

Weling series:ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCr-7,ERNiCu-7,ERNi-1

Nickel welding wire Nickel welding wire Nickel welding wire Nickel welding wire Nickel welding wire

Chemical Properties of Nickel welding wire ERNiCrMo-3

el Welding Wire Nickel W

ErNiCrMo-3 Deposited Chemical Composition % (Typical)
C = 0.09	Si = 0.12	Ni = Balance
Mn = 0.05	Cr = 21.9	Nb/Ta = 3.65
Fe = 0.62	Mo = 8.70

elding Wire Nickel Welding Wire Nickel Welding Wire

Size we could offer

MIG	(15kg/spool),	Size
		0.8 1.2 2.4 3.2mm
TIG	(5kg/box),Strip	0.8 1.2 2.4 3.2mm

Application

ERNiCrMo-3 (NA625) is used primarily for gas tungsten and gas metal arc and matching composition base metals. It is also used for welding Inconel 601 and Incoloy 800. It can be used to weld dissimilar metal combinations such as steel, stainless steel, Inconel and Incoloy alloys.

Deposited All Weld Metal Properties % (AW)
Tensile Strength	114,000 psi
Yield Strength	66,000 psi
Elongation	35%

1.20mm 1.60mm Nickel Alloy ERNiCrMo-3 ERNiCrMo-4 nickel Welding Wire 1
