8mm Bare Wire Thermocouple

Name: 8mm Bare Wire Thermocouple
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: Type N Thermocouple Wire
Price: 149.30 USD
Availability: InStock

Brand Name:	DLX
Model Number:	Type N Thermocouple Wire
MOQ:	5
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	300 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Thermocouple Bare Wire

Color:

Bright

Certificate:

ISO9001

Temperature Range:

-270 To 1,260C

EMF Tolerance:

+/- 2.2C Or +/- .75%

Grade:

IEC854-1/3

Positive:

Nicrosil

Negative:

Nisil

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

300 tons per month

Highlight:

Type N Bare Wire Thermocouple

NP Bare Thermocouple

8mm Bare Wire Thermocouple

Product Description

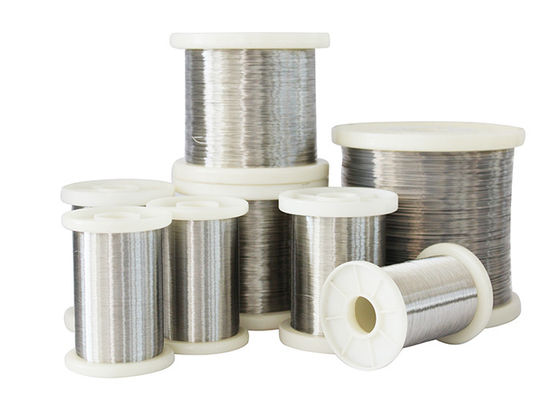

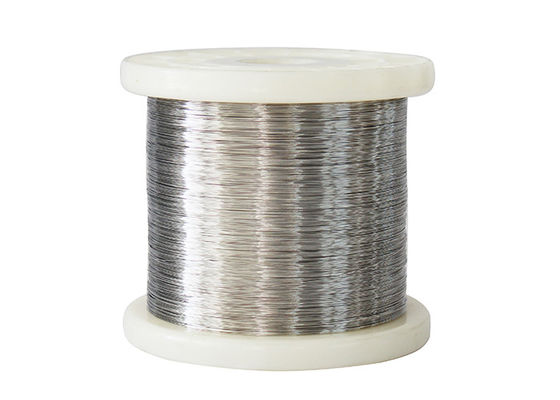

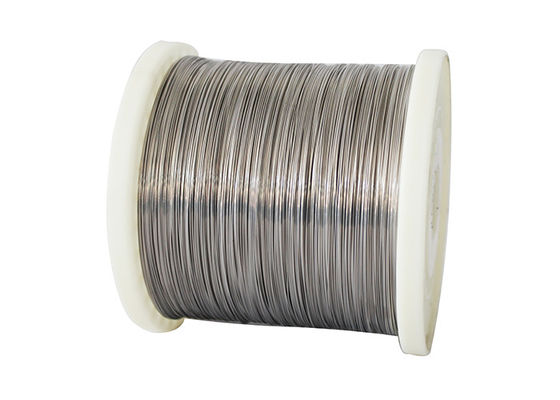

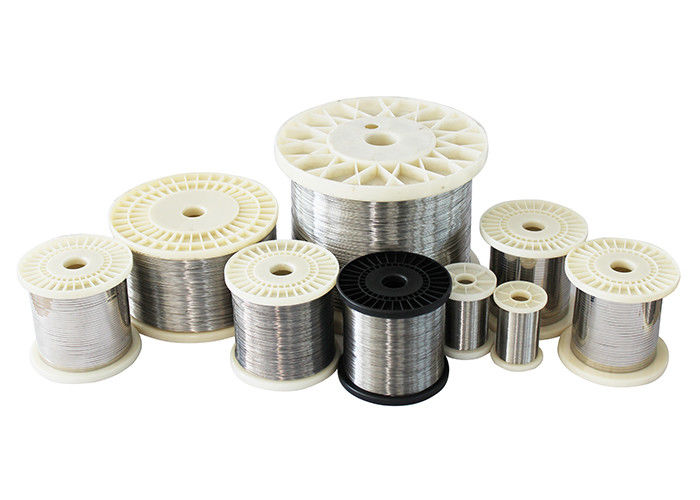

8mm Bare Wire Thermocouple 0

8mm Bare Wire Thermocouple 1

Thermocouple Wire

Type N Thermocouple (Nicrosil / Nisil): The Type N shares the same accuracy and temperature limits as the Type K. The type N is slightly more expensive. The type N has better repeatability between 572F to 932F (300C to 500C) compared to the type K.

Type N Temperature Range:

Maximum continuous operating temperature: up to 2,300F (1,260C)
Short term use: 2,336F (1,280C)
Thermocouple grade wire, -454 to 2300F (-270 to 1,260C)
Extension wire, 32 to 392F (0 to 200C)

Type N Accuracy (whichever is greater):

Standard: +/- 2.2C or +/- .75%
Special Limits of Error: +/- 1.1C or 0.4%

Consideration for bare wire type E thermocouple applications:

The type N holds up better to oxidation at high temperatures when compared to the type K.

Thermocouple Wire

Code	Wires component of the thermocouple
	+Positive leg	-Negative leg
N	Ni-cr-si (NP)	Ni-si-magnesium (NN)
K	Ni-Cr (KP)	Ni-Al(Si) (KN)
E	Ni-Cr (EP)	Cu-Ni<constantan> (EN)
J	Iron (JP)	Cu-Ni<constantan> (JN)
T	Copper (TP)	Cu-Ni<constantan> (TN)

Standards

ASTM	ANSI	IEC	DIN	BS	NF	JIS	GOST
(American Society for Testing and Materials) E 230	(American National Standard Institute) MC 96.1	(European Standard by the International Electrotechnical Commission 584)-1/2/3	(Deutsche Industrie Normen) EN 60584 -1/2	(British Standards) 4937.1041, EN 60584 - 1/2	(Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324	(Japanese Industrial Standards) C 1602 - C 1610	(Unification of the Russian Specifications) 3044

Size range

Wire: 0.12 to 8.0 mm.
