TP Thermocouple Bare Wire

TP Thermocouple Bare Wire

Product Details:

Place of Origin: China
Brand Name: DLX
Model Number: Type K Thermocouple Wire

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Thermocouple Bare Wire Color: Bright
Certificate: ISO9001 Temperature Range: 0~1200C, Up To 1200C
EMF Tolerance: +/-1.5°C Or +/-0.4% T Grade: KP/KN, Extension Grade KPX/KNX
Positive: Chromel Negative: Alumel
High Light:

TP Thermocouple Bare Wire

,

Type K Thermocouple Wire

,

0.12mm Thermocouple Bare Wire

Product Description

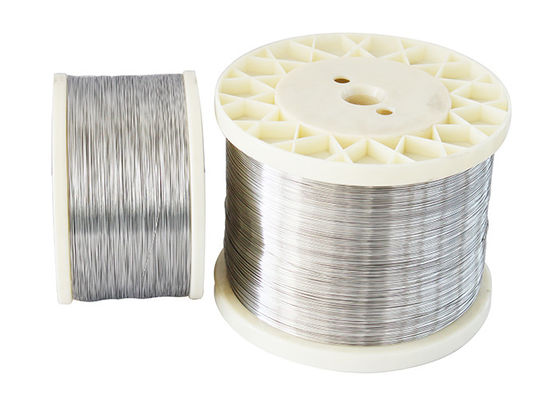

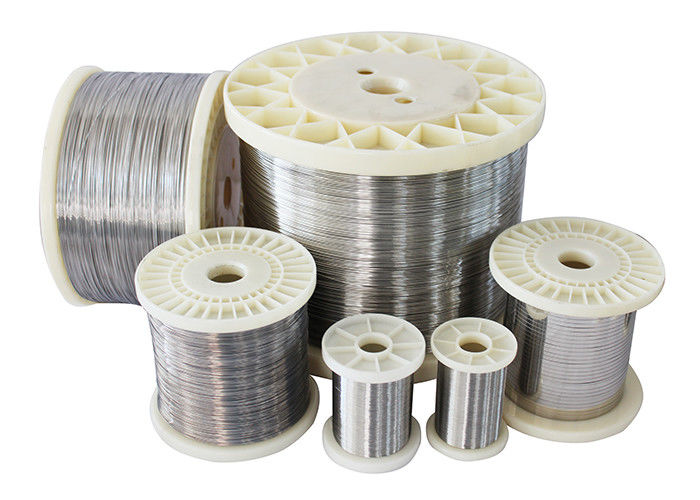

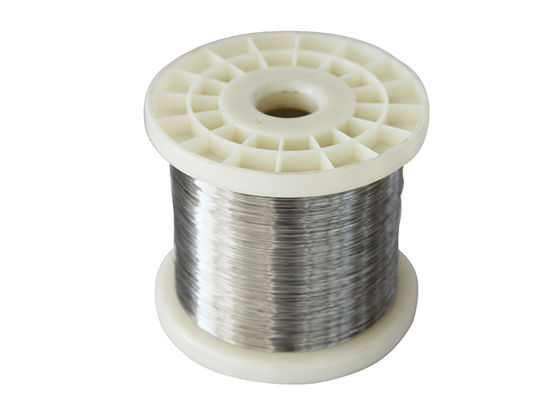

TP Thermocouple Bare Wire 0


TP Thermocouple Bare Wire 1


  • Thermocouple Wire

Type K Thermocouple (Nickel-Chromium / Nickel-Alumel): The type K is the most common type of thermocouple. It’s inexpensive, accurate, reliable, and has a wide temperature range. The type K is commonly found in nuclear applications because of its relative radiation hardness. Maximum continuous temperature is around 1,100C.














  • Thermocouple Wire
Code Wires component of the thermocouple
  +Positive leg -Negative leg
N Ni-cr-si (NP) Ni-si-magnesium (NN)
K Ni-Cr (KP) Ni-Al(Si) (KN)
E Ni-Cr (EP) Cu-Ni<constantan> (EN)
J Iron (JP) Cu-Ni<constantan> (JN)
T Copper (TP) Cu-Ni<constantan> (TN)



  • ​Standards
ASTM ANSI IEC DIN BS NF JIS GOST
(American Society for Testing and Materials) E 230 (American National Standard Institute) MC 96.1 (European Standard by the International Electrotechnical Commission 584)-1/2/3 (Deutsche Industrie Normen) EN 60584 -1/2 (British Standards) 4937.1041, EN 60584 - 1/2 (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 (Japanese Industrial Standards) C 1602 - C 1610 (Unification of the Russian Specifications) 3044






  • Size range

Wire: 0.12 to 8.0 mm.
