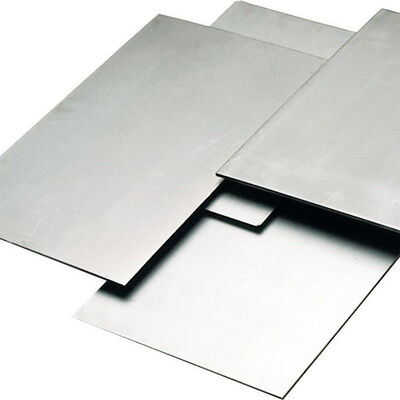

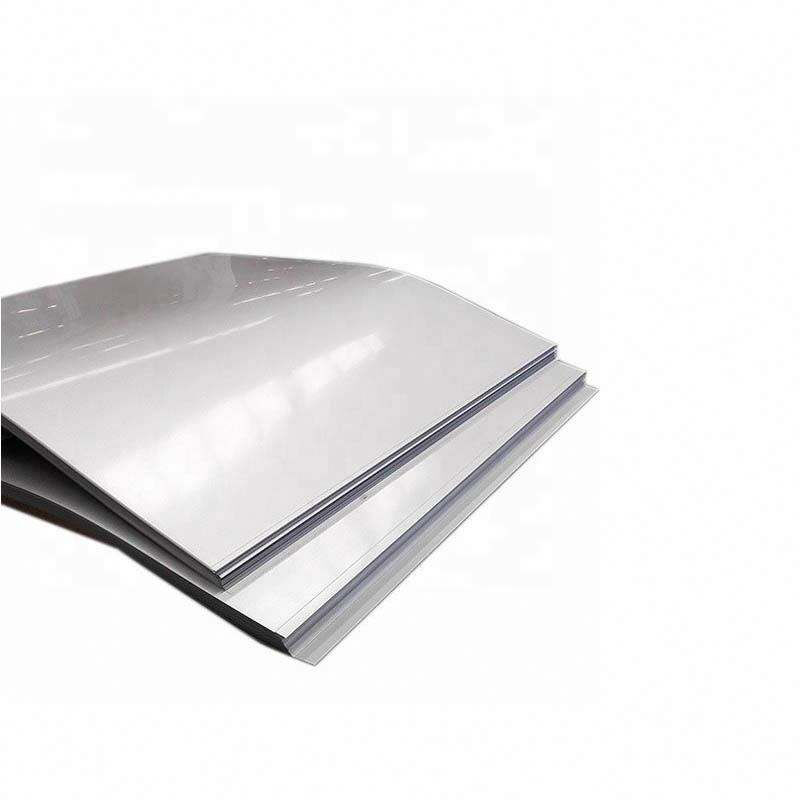

Ultra Smooth Nickel Alloy Plate Hastelloy C22 6mm for Pharmaceutical Reactors

In high-purity pharmaceutical synthesis and chemical processing, vessel material reliability directly determines product purity and operational uptime. Our 6mm Ultra Smooth Industrial Plate in Hastelloy C22 represents the pinnacle of nickel-based corrosion engineering.

By combining balanced additions of chromium (22%), molybdenum (13%), tungsten (3%), and controlled iron with ultra-low carbon and silicon chemistry, this alloy plate prevents the formation of grain-boundary precipitates in the weld heat-affected zone (HAZ). The ultra-smooth cold-rolled and precision-pickled surface topography reduces drug residue adhesion, minimizes biofilm build-up, and ensures rapid passivation during sanitization routines. Whether utilized as internal reactor linings, clad plates, baffle plates, or primary vessel shell walls, this plate maintains dimensional stability and chemical inertness under extreme cyclic thermal and pressure loads.

• Universal Chemical Resistance: Resists both oxidizing and reducing media, including wet chlorine, nitric acid mixtures, formic/acetic acids, and ferric/cupric chlorides.
• Weld Zone Corrosion Immunity: Ultra-low carbon and silicon contents resist the formation of intermetallic phases during TIG, MIG, and Plasma welding, allowing direct service in the as-welded state.
• Anti-Pitting Factor (PREN ≥ 45): Drastically outperforms standard stainless steels and basic nickel alloys in high-chloride pharmaceutical slurries.

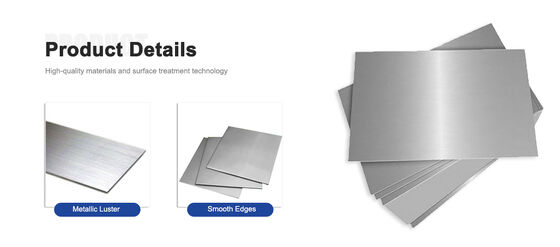

• Ultra Smooth Surface Topography: Specially processed plate surface prevents material fouling and accelerates automated Cleaning-In-Place (CIP) sequences.

1. Active Pharmaceutical Ingredient (API) Reactors: Primary shell and head material for synthesizing complex organic compounds, halogenated intermediates, and acid-catalyzed drug formulas.
2. Crystallizers & Centrifuge Baskets: Handles corrosive mother liquors containing high concentrations of chlorides, bromides, and organic solvents.
3. High-Purity Agitators, Impellers & Baffles: Resists dynamic erosion-corrosion and vortex-induced cavitation in aggressive mixing vessels.
4. Condensers, Reboilers & Heat Exchangers: Tubesheet and baffle plates exposed to mixed acidic vapors and fluctuating condensation cycles.
5. Sterile Process Vessels & Fermenters: Sanitary tanks requiring frequent passivation, steam sterilization (SIP), and zero metal ion leaching into biological media.

• 1,200 Tons Monthly Capacity: Scalable manufacturing infrastructure ensuring rapid lead times for large-scale pharmaceutical and chemical vessel fabrication projects.
• Integrated Vacuum Melting & Hot Rolling: Utilizing advanced VIM (Vacuum Induction Melting) + ESR (Electroslag Remelting) refining to achieve near-zero gaseous impurities and micro-clean grain structures.
• Tight Dimension & Flatness Control: Proprietary leveling and surface-finishing lines ensure strict thickness tolerances (±0.05 mm) and laser-flat plates ready for immediate CNC laser cutting and beveling.

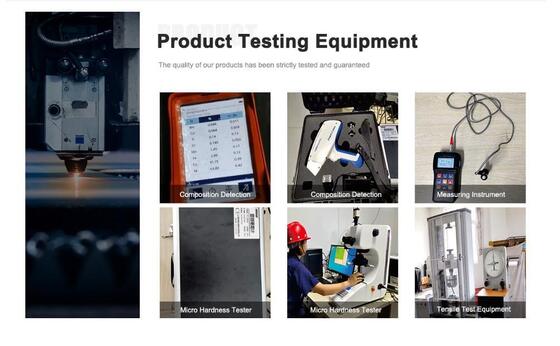

• Full Traceability & Non-Destructive Testing: Every single plate undergoes 100% ultrasonic flaw detection, PMI chemical verification, eddy current testing, and hydrostatic validation with full heat trace records.
• Tailored Engineering Solutions: Flexible supply across custom lengths, widths up to 2000mm, cut-to-size shapes, waterjet pre-cut discs, and specialized surface polishing grades.

A: While 316L performs well in mild conditions, it is vulnerable to chloride stress corrosion cracking, severe pitting, and crevice attack in acidic API reaction media. Hastelloy C22 contains high chromium (~22%), molybdenum (~13%), and tungsten (~3%), creating an impervious passive oxide layer that resists localized corrosion, halide attack, and prevents harmful heavy-metal ion leaching into sterile pharmaceutical batches.

A: Our 6mm C22 plates undergo precision cold-rolling, continuous bright annealing/descaling, and specialized mechanical-chemical surface polishing, achieving surface roughness values of Ra ≤ 0.4 μm (or custom Ra ≤ 0.2 μm upon request). This ultra-smooth finish minimizes microbial adhesion, reduces product residue during discharge, and ensures compliant sanitary operation.

A: The 6mm plate thickness provides an ideal balance between high mechanical load resistance (tensile strength ≥ 690 MPa) and cold-forming workability. It allows vessel fabricators to roll cylindrical shells and dish reactor heads efficiently while satisfying stringent internal pressure design parameters without excessive tare weight.

A: We provide dynamic commercial MOQ structures tailored to project requirements, accommodating prototype evaluations as well as multi-ton container shipments. All plates are interleaved with protective scratch-resistant film, edge-protected, and securely crated in moisture-barrier wooden export cases to guarantee pristine surface conditions upon arrival.
