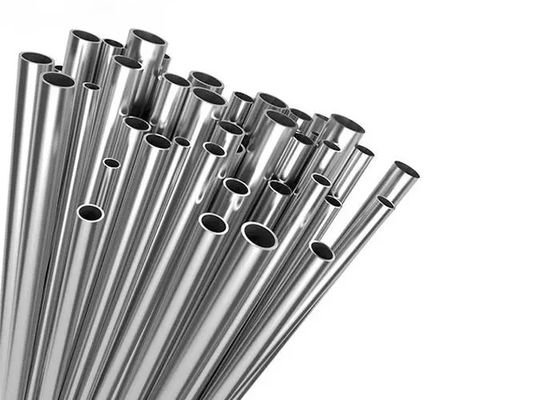

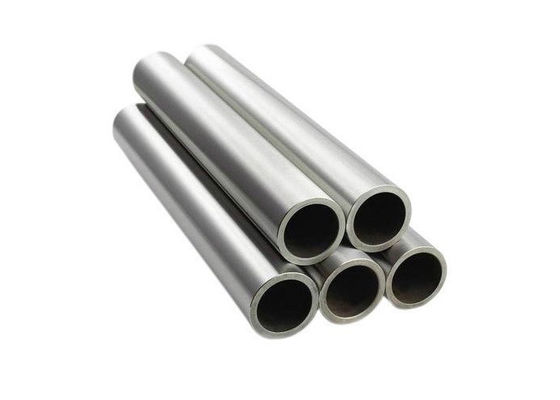

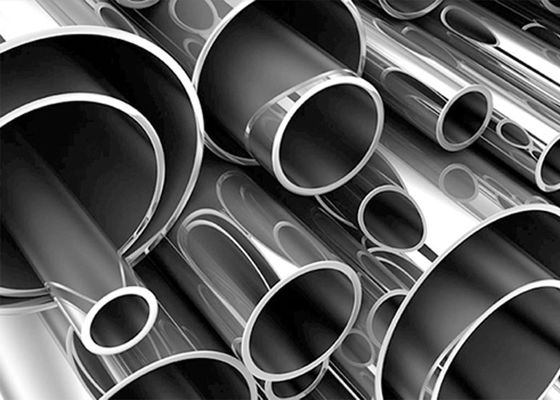

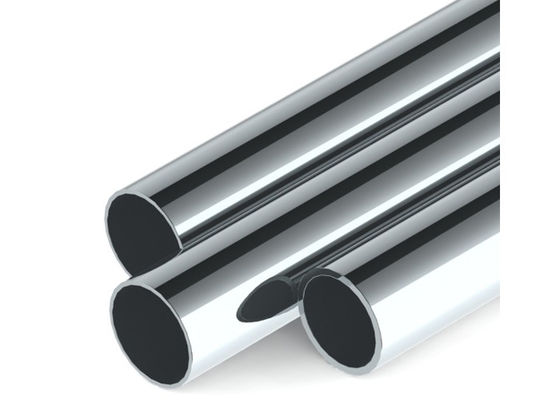

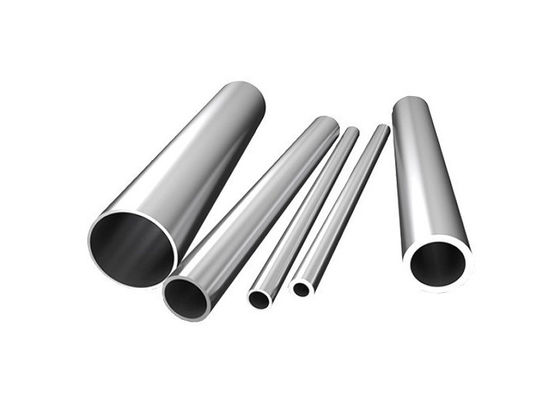

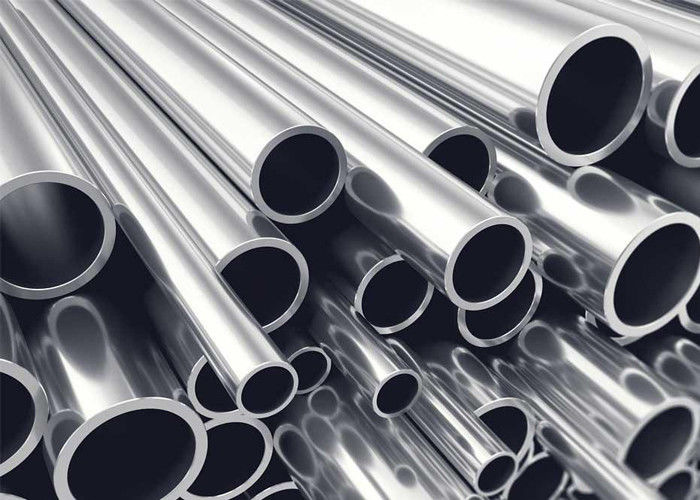

345MPA Hastelloy C4 ASTM B622 N06455 Seamless Tubing

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Ni Cr Mo | Elongation | 30 % |
---|---|---|---|
Brinell Hardness HB | ≤220 | Density | 8.89 G/cm3 |
Tensile Strength Rm N/mm² | 760MPA | Yieldstrength R P0. 2 N/mm² | 345MPA |
Electrical Resistivity(24℃)) | 1.30 Microhm-m | Thermal Conductivity(32℃) | 9.4 W/m-K |
Model Number | Hot Selling Nickel Based Alloy Hastelloy C-4 Alloy Seamless Tubing With Good Price | ||
Highlight | Hastelloy C4 Seamless Tubing,ASTM B622 Nickel Chromium,N06455 Seamless Tubing |
- Nickel Based corrosion resistance Alloy
HASTELLOY® C-4 alloy (UNS N06455) is the most (microstructurally) stable of the widely used nickel-chromium-molybdenum materials, which are well known for their resistance to many aggressive chemicals, in particular hydrochloric acid, sulfuric acid, and chlorides. This stability means that the alloy can be welded without fear of sensitization, i.e. the nucleation and growth of deleterious, second phase precipitates in the grain boundaries of the weld heat-affected zone (HAZ).
Like other nickel alloys, it is ductile, easy to form and weld, and possesses exceptional resistance to stress corrosion cracking in chloride-bearing solutions (a form of degradation to which the austenitic stainless steels are prone). With its high chromium and molybdenum contents, it is able to withstand both oxidizing and non-oxidizing acids, and is resistant to pitting and crevice attack in the presence of chlorides and other halides.
-
Chemical Properties of Hastelloy C-4 Tubing
Hastelloy Alloy | Ni | Cr | Co | Mo | FE | W | Mn | C | V | P | S | Si |
C-4 | Balance | 14-18 | 2 Max | 14-17 | 3.0 Max | 1.0 Max | 0.015 Max | 0.04 Max | 0.03 Max | 0.08 Max |
- Application
Some typical applications are:
- Strong oxidizers (such as ferric and cupric chlorides)
- Hot contaminated media (organic and inorganic)
- Chlorine
- Formic and acetic acids
- Acetic anhydride
- Seawater and brine solutions
- Type we could offer
ASTM | Alloy | Type | UNS | Misc./Shape | |
ASTM B574 Bar |
Hastelloy C-4 | Nickel | N06455 | Bar | ![]() |
ASTM B575 Plate |
Hastelloy C-4 | Nickel | N06455 | Plate | ![]() |
ASTM B575 Strip |
Hastelloy C-4 | Nickel | N06455 | Strip | ![]() |
ASTM B575 Sheet |
Hastelloy C-4 | Nickel | N06455 | Sheet | ![]() |
ASTM B619 Welded Pipe |
Hastelloy C-4 | Nickel | N06455 | Welded Pipe | ![]() |
ASTM B622 Seamless Tubing |
Hastelloy C-4 | Nickel | N06455 | Seamless Tubing | ![]() ![]() |
ASTM B366 Fittings |
Hastelloy C-4 | Nickel | N06455 | Fittings | ![]() |
ASTM B574 Wire |
Hastelloy C-4 | Nickel | N06455 | Wire |
