Product Details
Place of Origin: China
Brand Name: DLX
Model Number: Hastelloy B-3
Payment & Shipping Terms
Minimum Order Quantity: 5

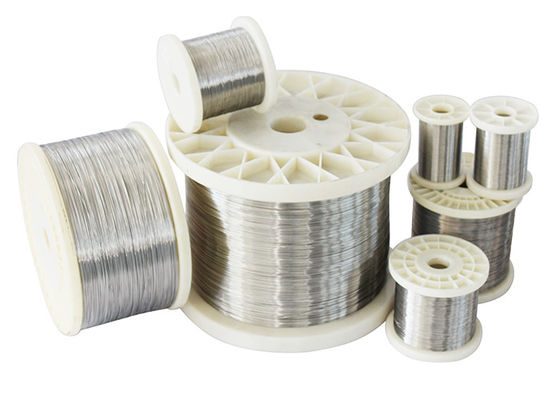

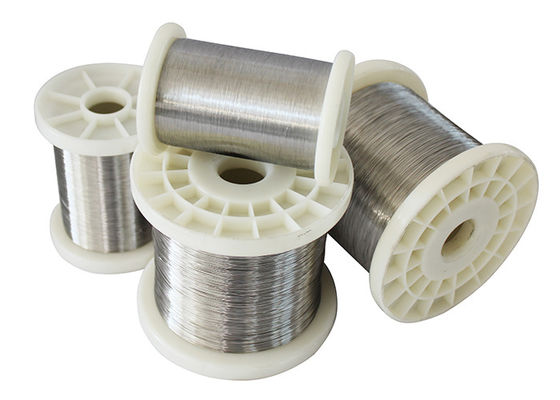

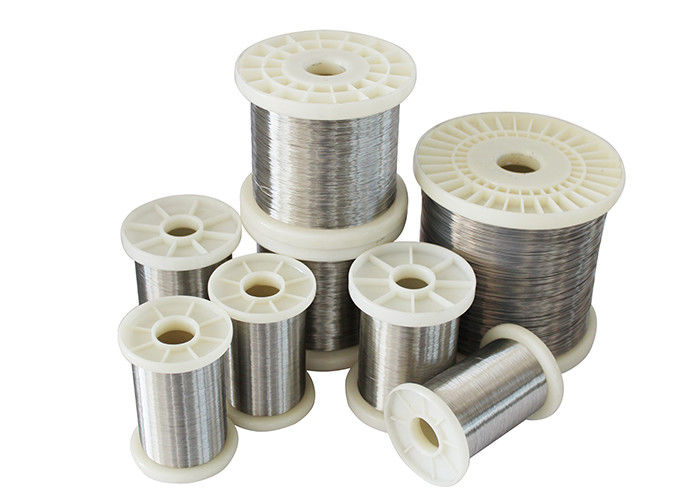

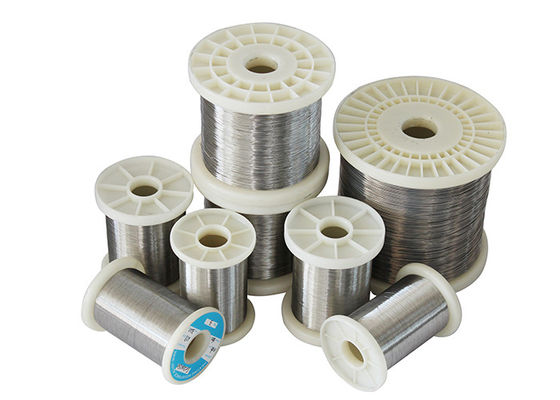

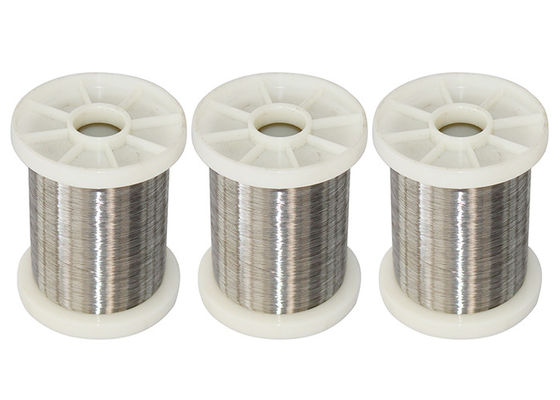

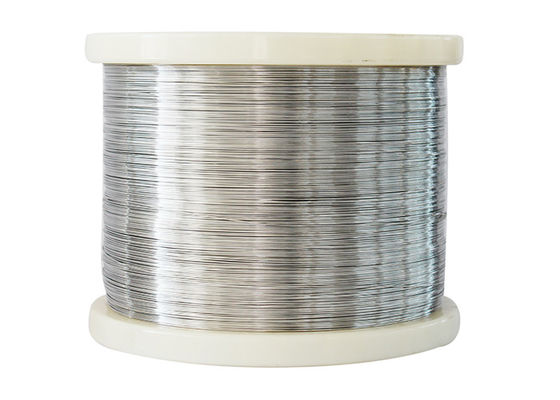

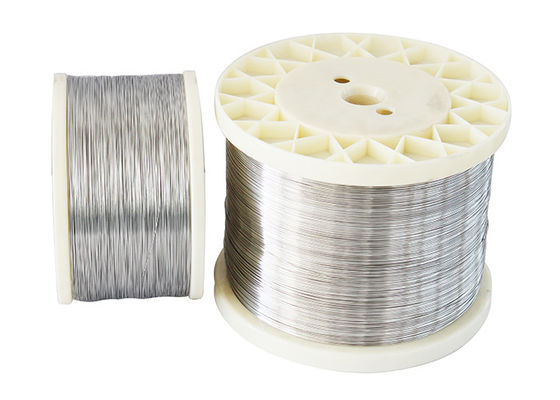

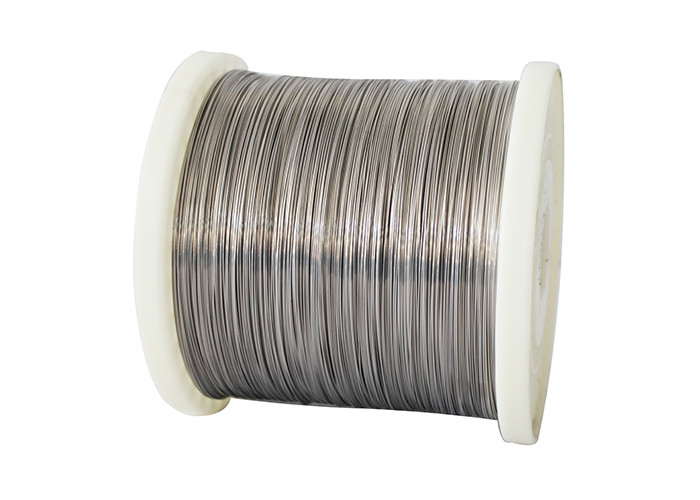

Packaging Details: Hastelloy B-3 Wire packed in spool,in coil then in carton,in woodencase
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Material: |
Ni Cr Mo |
Elongation: |
30 % |
Brinell Hardness HB: |
≤220 |
Density: |
8.89 G/cm3 |
Tensile Strength Rm N/mm²: |
760MPA |
Yieldstrength R P0. 2 N/mm²: |
345MPA |
Electrical Resistivity（24℃））: |
1.30 Microhm-m |
Thermal Conductivity（32℃）: |
9.4 W/m-K |
Model Number: |
Hot Selling Nickel Based Alloy Bright Soft Hastelloy B-3 Alloy Wire |
Material: |
Ni Cr Mo |
Elongation: |
30 % |
Brinell Hardness HB: |
≤220 |
Density: |
8.89 G/cm3 |
Tensile Strength Rm N/mm²: |
760MPA |
Yieldstrength R P0. 2 N/mm²: |
345MPA |
Electrical Resistivity（24℃））: |
1.30 Microhm-m |
Thermal Conductivity（32℃）: |
9.4 W/m-K |
Model Number: |
Hot Selling Nickel Based Alloy Bright Soft Hastelloy B-3 Alloy Wire |
HASTELLOY® B-3® alloy (UNS N10675) exhibits extremely high resistance to pure hydrochloric, hydrobromic, and sulfuric acids. Furthermore, it has greatly improved structural stability compared with previous B-type alloys, leading to fewer concerns during welding, fabrication, and service.
Like other nickel alloys (in the mill annealed condition), it is ductile, can be formed and welded, and resists stress corrosion cracking in chloride-bearing solutions. Also, it is able to withstand fluoride-bearing media and concentrated sulfuric acid, both of which result in damage to zirconium alloys.
HASTELLOY® B-3® alloy is available in the form of plates, sheets, strips, billets, bars, wires, pipes, tubes, and coated electrodes. It is used in numerous chemical process industry (CPI) applications, especially in the construction of reaction vessels for pure, reducing acid service.
| Hastelloy Alloy | Ni | Cr | Co | Mo | FE | W | Mn | C | V | P | S | Si |
| B-3 | ≥65 | 1Max | 3Max | ≤28.5 | 1.5 Max | ≤3 | 1.0 Max | 0.01 Max | - | 0.1Max |
Some typical applications are:
| ASTM | Alloy | Type | UNS | Misc./Shape | |
| ASTM B574 Bar |
Hastelloy B-3 | Nickel | N10675 | Bar | |
| ASTM B575 Plate |
Hastelloy B-3 | Nickel | N10675 | Plate | |
| ASTM B575 Strip |
Hastelloy B-3 | Nickel | N10675 | Strip | |
| ASTM B575 Sheet |
Hastelloy B-3 | Nickel | N10675 | Sheet | |
| ASTM B619 Welded Pipe |
Hastelloy B-3 | Nickel | N10675 | Welded Pipe | |
| ASTM B622 Seamless Tubing |
Hastelloy B-3 | Nickel | N10675 | Seamless Tubing | |
| ASTM B366 Fittings |
Hastelloy B-3 | Nickel | N10675 | Fittings | |
| ASTM B574 Wire |
Hastelloy B-3 | Nickel | N10675 | Wire |
