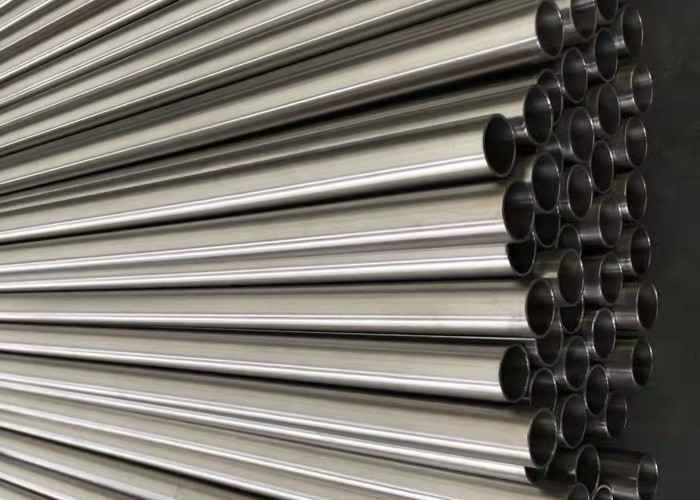

Hastelloy C276 Welded Seamless Pipe ASTM B619 B622 B474 B626 N10276 2.4819

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: Hastelloy C276 Tube

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: Hastelloy C276 Tube packed in wooden case for Hastelloy C276 Tube

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Hastelloy C276 Welded Seamless Pipe, ASTM B619 Welded Seamless Pipe, N10276 Alloy C276 Tube


Material:	Ni Cr Mo	Elongation:	30 %
Brinell Hardness HB:	≤220	Density:	8.89 G/cm3
Tensile Strength Rm N/mm²:	760MPA	Yieldstrength R P0. 2 N/mm²:	345MPA
Electrical Resistivity（24℃））:	1.30 Microhm-m	Thermal Conductivity（32℃）:	9.4 W/m-K
Product Name:	Hastelloy C276 Tube

Material:	Ni Cr Mo
Elongation:	30 %
Brinell Hardness HB:	≤220
Density:	8.89 G/cm3
Tensile Strength Rm N/mm²:	760MPA
Yieldstrength R P0. 2 N/mm²:	345MPA
Electrical Resistivity（24℃））:	1.30 Microhm-m
Thermal Conductivity（32℃）:	9.4 W/m-K
Product Name:	Hastelloy C276 Tube

Description

Hastelloy C276 Welded Seamless Pipe ASTM B619 B622 B474 B626 N10276 2.4819

Hastelloy C276 Welded Seamless Pipe ASTM B619 B622 B474 B626 N10276 2.4819 0

Hot Sale ASTM B619 B622 B474 B626 N10276 2.4819 Alloy C-276 Hastelloy C276 Welded Seamless Pipe Tube Price Per Kg

Hastelloy C276 tube alloy is a kind of nickel - chromium - molybdenum containing tungsten alloys, low carbon content of silicon, i s regarded as a universal corrosion resistant alloy mainly wet chlorine various oxidation resistance chloride chlorate solution of sulfuric acid and oxidizing salt, in low temperature and temperature in the hydrochloric acid have good corrosion resistance as a result, nearly thirty years in harsh corrosive environments, such as chemical petrochemical flue gas desulfurization pulp and paper is widely applied to the environmental protection industry.

Application:

Petrochemical equipment, heat exchanger, flue gas desulfurization equipment, fluid chemical pump, fluorine chemical, etc

Has the following properties:

● It has excellent corrosion resistance to most corrosive media in oxidation and reduction atmosphere

●Good crevice corrosion pitting corrosion and stress corrosion resistance high Mo content of Cr alloy can resistance to chlorine ion corrosion, W elements to further improve the corrosion resistance at the same time, hartz C - 276 alloy is one of the several kinds of wet chlorine and chlorine dioxide hypochlorite solution corrosion resistant materials, one of the high concentration of chlorate solution such as ferric chloride and copper chloride have significant corrosion resistance, suitable for all kinds of the concentration of sulfuric acid solution is one of the few can be applied to one of the hot material of the sulfuric acid solution.

Mechanical properties:

Tensile strength: σb≥730Mpa, elongation:δ≥40%, hardness :HRB≤100.

Hastelloy C-276 alloy thermoforming is immediately annealed and quenched with water at 1150℃. Cold deformation of Hastelloy C-276 alloy will increase its strength.

Hastelloy C - 276 alloy and the formability of common austenitic stainless steel has a similar but because of its is bigger than the strength of the common austenitic stainless steel, so there will be greater in the process of cold forming stress and work hardening rate of this kind of material much faster than ordinary stainless steel, cold forming process, so in has extensive take midway annealing treatment

Chemical Properties of Hastelloy C276 Tube

Hastelloy Alloy

C276

Balance

14.5-16.5

2.5 Max

15.0-17.0

4.0-7.0

3.0-4.5

1.0 Max

0.01 Max

0.35 Max

0.04 Max

0.03 Max

0.08 Max

Application

Some typical applications are:

Strong oxidizers (such as ferric and cupric chlorides)
Hot contaminated media (organic and inorganic)
Chlorine
Formic and acetic acids
Acetic anhydride
Seawater and brine solutions

Type we could offer

ASTM	Alloy	Type	UNS	Misc./Shape
ASTM B574 Bar	Hastelloy C276	Nickel	N10276	Bar
ASTM B575 Plate	Hastelloy C276	Nickel	N10276	Plate
ASTM B575 Strip	Hastelloy C276	Nickel	N10276	Strip
ASTM B575 Sheet	Hastelloy C276	Nickel	N10276	Sheet
ASTM B619 Welded Pipe	Hastelloy C276	Nickel	N10276	Welded Pipe
ASTM B622 Seamless Tubing	Hastelloy C276	Nickel	N10276	Seamless Tubing
ASTM B366 Fittings	Hastelloy C276	Nickel	N10276	Fittings
ASTM B574 Wire	Hastelloy C276	Nickel	N10276	Wire
