Forged Round Bar Hastelloy C276 Dia 50mm for Offshore Valve Shaft

Subsea manifolds, marine drilling risers, and offshore production Christmas trees operate under punishing hydrostatic pressures, dynamic torque spikes, and high-velocity sour crude containing concentrated chlorides and hydrogen sulfide (H2S). The forged round bar Hastelloy C276 Dia 50mm addresses these critical operational demands by integrating an optimized molybdenum and tungsten ratio into an austenitic nickel matrix, ensuring zero embrittlement, minimal rotational friction, and sustained fatigue endurance under deepwater pressure differentials.

Unlike conventional continuous-cast stock, our forged round bar Hastelloy C276 Dia 50mm undergoes intense multi-axis open-die forging followed by rapid solution annealing and precision water quenching. This intensive thermo-mechanical processing crushes coarse as-cast dendritic segregation, eliminates central porosity, and refines carbide distributions. The resulting isotropic microstructure provides uniform transverse and longitudinal tensile properties, allowing precision machining of valve stem keyways, splines, and sealing journals without internal micro-void exposure.

With a balanced formulation containing 15.0%–17.0% molybdenum, 14.5%–16.5% chromium, and 3.0%–4.5% tungsten, the forged round bar Hastelloy C276 Dia 50mm delivers a Pitting Resistance Equivalent Number exceeding 68. It maintains complete surface passivity in stagnant marine environments, aerated splash zones, and hot acidic chloride media, eliminating localized pitting on critical valve sealing diameters.

High-tonnage hydraulic forging delivers uniform grain refinement across the entire 50mm cross-section, ensuring balanced mechanical properties in both radial and axial orientations. This high structural consistency allows valve stems to transmit extreme actuation torque without plastic deformation, shaft twisting, or galling against packing rings.

By strictly restricting carbon to ≤ 0.010% and silicon to ≤ 0.08%, the alloy matrix suppresses the formation of grain-boundary precipitates and intermetallic secondary phases during thermal processing. This chemical purity ensures superior toughness down to cryogenic temperatures and guarantees corrosion resistance equal to the base metal across welded or heat-affected transitions.

Supplied with a concentric bright-turned surface and controlled straightness, each bar minimizes runout during high-speed CNC turning, thread milling, and deep hole drilling. The uniform hardness distribution ensures predictable chip breaking, extended tooling lifespan, and mirror-grade surface finishes on critical shaft gland packings.

Serves as the primary drive shaft and stem material for subsea gate valves, ball valves, and non-return check valves operating in high-pressure, high-temperature (HPHT) subsea production manifolds and marine wellheads.

Applied in high-pressure rotating drive shafts, dynamic impeller spindles, and high-salinity brine circulation shafts exposed to continuous cavitation, turbulence, and corrosive seawater erosion.

Utilized for actuator drive rods, damper shafts, and control valve spindles in exhaust gas cleaning systems (EGCS), sour natural gas sweetening towers, and wet chlorine recovery units.

Deployed in high-load downhole safety valve actuators, logging tool connector shafts, and high-integrity pressure retaining fasteners where sulfide stress cracking and mechanical fatigue pose severe failure risks.

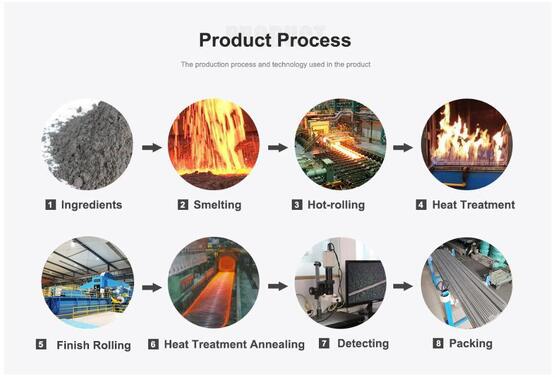

DLX executes full-process internal manufacturing comprising vacuum induction melting, electroslag refining, high-capacity hydraulic press forging, and automated continuous solution annealing furnaces. This fully integrated metallurgical chain guarantees ultra-clean chemistries, minimized trace element contamination, and full heat-to-heat repeatability.

Equipped with heavy-duty centerless grinding machines, high-precision peeling lathes, and multi-roller rotary straighteners, DLX provides forged round bar Hastelloy C276 Dia 50mm with tight diametrical tolerances down to h9, surface roughness down to Ra ≤ 0.8 μm, and minimal runout ready for immediate spindle machining.

Operating with a unified production capacity of 1,200 tons per month across advanced nickel-base and high-temperature corrosion-resistant alloy lines, DLX accommodates dynamic minimum order quantities (MOQ) tailored to specific component geometries, custom lengths, or full container project demands with strict delivery schedules.

Every batch of forged round bar Hastelloy C276 Dia 50mm undergoes 100% volumetric non-destructive ultrasonic testing, positive material identification (PMI), microstructure grain size evaluation, intergranular corrosion testing, and full mechanical tensile verification to ensure compliance with critical engineering standards.

While duplex stainless steels offer high mechanical yield strength, they remain vulnerable to localized pitting and stress-corrosion cracking in severe sour media containing elevated hydrogen sulfide and high temperatures. Forged round bar Hastelloy C276 Dia 50mm contains significantly higher levels of molybdenum (15.0%–17.0%) and tungsten (3.0%–4.5%), providing a PREN ≥ 68 that prevents pitting and catastrophic sulfide stress cracking during long-term subsea service.

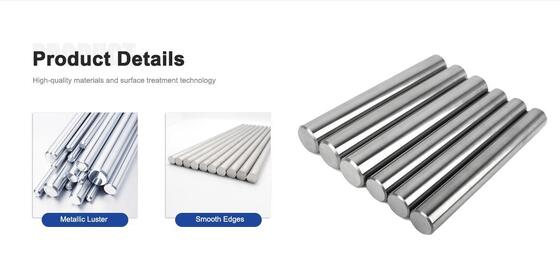

The bars are supplied in bright peeled, smooth turned, or centerless ground finishes with surface roughness controlled to Ra ≤ 0.8 μm. Straightness is maintained within ≤ 0.5 mm per meter, and diametrical tolerances are held to h9–h10, allowing machine shops to perform finish-turning and threading with minimal stock removal and zero tool chatter.

Every forged bar undergoes 100% volumetric ultrasonic testing to detect and reject any micro-voids, center shrinkage, or non-metallic inclusions. In addition, chemical composition is verified via optical emission spectroscopy, and mechanical tensile and hardness testing are performed on solution-annealed test coupons from each forging lot.

Yes. DLX provides precision band-saw cutting services to supply pre-cut shaft blanks, drive pin billets, or fixed lengths (from 500 mm to 6,000 mm) tailored to your valve assembly schedule, significantly reducing customer machining time and raw material waste.

Each forged round bar Hastelloy C276 Dia 50mm is coated with protective rust-preventative film, capped on both ends, and packed in reinforced, moisture-resistant solid wooden cases lined with waterproof plastic sheeting to prevent mechanical impact, surface scratching, and saltwater contamination during international transit.
