Fine wire fails in three ways: fatigue fracture from repeated flexing, corrosion attack at surface defects, and dimensional drift that breaks circuit tolerances. At 0.025 mm, every imperfection is magnified — a surface flaw that is invisible on 1 mm wire can end the life of a micro-wire in weeks. This high-purity nickel wire is drawn to ±0.003 mm and annealed for ≥35% elongation, so it survives the flexing, heat and corrosive atmospheres of industrial service instead of merely surviving the drawing die.

Wire Diameter & Tolerances

Diameter verified by laser gauge across every spool; tolerance on diameters above 0.05 mm is confirmed per drawing before production.

Key Advantages

• 0.025 mm ultra-fine diameter with ±0.003 mm control — circuit and sensor tolerances hold from spool to spool.
• ≥99.5% nickel purity (N6) — corrosion attack sites minimized, stable passive film in industrial atmospheres.
• Annealed ≥35% elongation — survives repeated flexing and winding without work-hardening fracture.
• Stable resistivity 0.096 μΩ·m (20 °C) — predictable electrical behaviour for heating, sensing and fuse elements.
• Free 0.5 kg sample & MOQ 5 kg — qualify the wire on your own machine before committing to volume.

Technical Deep Dive

1. Unit Length Data — What a Spool Really Buys You (Calculated)

Based on density 8.908 g/cm³ and a 0.025 mm round section, the supply economics of ultra-fine wire are:

One kilogram of 0.025 mm wire spans roughly 229 metres — a single spool can carry a full production run of miniature heating or sensing elements without a splice.

2. Drawing Precision and Diameter Control

Ultra-fine wire is drawn from larger rod through multiple passes with intermediate annealing. The 0.025 mm line is held to ±0.003 mm and 100% laser-gauged, because a diameter error that is trivial on thick wire becomes a resistance error of several percent on micro-wire.

3. Electrical Performance and Temperature Behaviour

Pure nickel's resistivity of 0.096 μΩ·m at 20 °C makes 0.025 mm wire a predictable element for miniature heaters, sensors and fuse links. Annealing stabilises the microstructure so resistivity stays consistent along the length — the property that matters when a 1 Ω change in a micro-wire changes a circuit's behaviour.

4. Durability in Industrial Service

Industrial failure of fine wire is dominated by mechanical fatigue and corrosion, not static load. Annealed nickel delivers ≥35% elongation and 90–120 HB hardness, letting the wire flex without work-hardening to fracture, while its stable passive film resists industrial atmospheres, condensation and mild chemical exposure.

Grade & Price Guide

FOB China port, subject to spool size and quantity. Final quotation per drawing.

Chemical Composition

Source: DLX product catalogue, pure nickel family (grades N4 / N6 / Ni200 / Ni201).

Mechanical & Physical Properties (Annealed)

Product Specification

Quality Assurance

At 0.025 mm, measurement is the product. Every spool is laser-gauged for diameter and ovality, and surface condition is checked after annealing; batches are sampled for tensile, elongation and hardness. Chemical composition is locked per heat, and an EN 10204 3.1 MTC is issued on request.

Packaging & Delivery

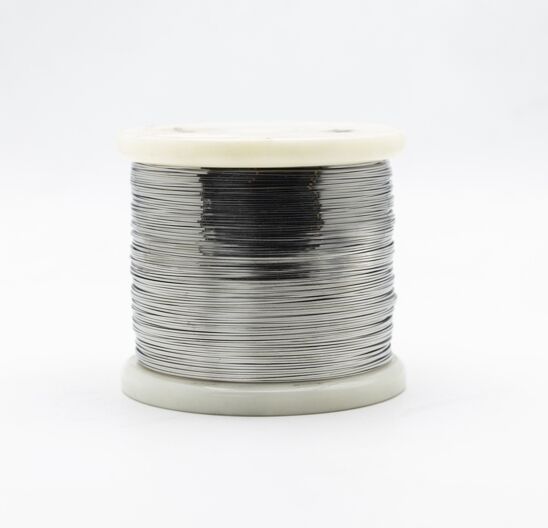

Wire is wound on plastic spools with controlled tension to prevent tangling, wrapped in moisture barrier film and packed in export cartons; spool IDs and lot numbers trace back to the heat. Standard diameters ship in 3–7 days from stock, custom drawing in 15–25 days. Free 0.5 kg samples are dispatched within 3–5 days.

About DLX Alloy

Drawing 0.025 mm wire is a discipline of patience: rod is reduced through pass after pass with intermediate annealing, and one inconsistent heat turns into meters of scrap. Changzhou DLX Alloy has refined this fine-wire process since 2002 inside a 12,000 m² nickel-only plant — melting, rolling, drawing and testing under one roof, so every spool of micro-wire carries the same chemistry, the same surface and the same tolerance as the one before it. ISO9001 and SGS certified, 1,200 tonnes of annual capacity.

FAQ

Q1. How much length do I get per kilogram of 0.025 mm wire?

Approximately 229 m/kg, calculated from the 0.025 mm section and nickel density 8.908 g/cm³ — a single spool can cover a full production run without splices.

Q2. What diameter tolerance can you hold on 0.025 mm wire?

±0.003 mm, verified by laser gauge on 100% of spools; ovality is held within the tolerance band.

Q3. What are the MOQ and sample terms?

MOQ is 5 kg. A free 0.5 kg sample is available for N6 and Ni200; N4 and Ni201 samples are charged and refunded with your first order above 50 kg.

Q4. Which industrial applications suit this wire?

Miniature heating elements, sensors, fuse links, wire-wound components and fine instrumentation — where corrosion resistance, flexing durability and stable resistivity are required.

Q5. Do you provide material certificates?

Yes. EN 10204 3.1 MTC with full chemical composition and mechanical test results is available per batch.
