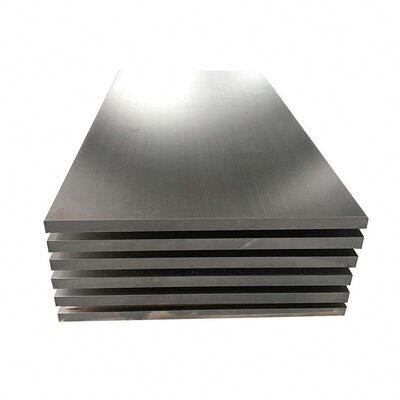

Pure Nickel Plate for Industrial Equipment & Fabrication

Industrial equipment is fabricated, not bought off a shelf: plates are cut, machined, welded and formed into components that must hold up under service. The material's fabricability and consistency decide how much rework the shop floor sees. High-purity pure nickel plates from DLX are supplied for that reality — four grades (N4, N6, Ni200, Ni201) matched to the environment, customized sizes from 0.05-30mm thick, M/1/4H/1/2H tempers, and an annealed baseline of ≥462 MPa, ≥35% elongation and 90-120 HB documented per heat. Every plate carries EN 10204 3.1 MTC with heat traceability, and production runs on an ISO9001 and SGS verified nickel-only line.

Size & Specification Overview

• Four grades matched to the environment — N4 purity to N6 industrial corrosion duty.
• Fabrication-ready — weldable, formable and machinable with M/1/4H/1/2H tempers.
• Documented mechanical baseline — ≥462 MPa, ≥35% elongation, 90-120 HB per heat.
• Customized sizes — 0.05-30mm thick, confirmed per drawing before production.
• EN 10204 3.1 MTC with heat traceability on every plate.

Technical Deep Dive

1. Industrial Equipment & Fabrication

Pure nickel plates are fabricated into industrial equipment components — machined parts, equipment structures, welded assemblies and replacement parts for processing machinery. Fabricability matters as much as material properties: the plate must cut, weld and form predictably, batch after batch.

2. Four-Grade Selection for Industrial Service

Industrial environments differ, and the grade follows the condition. N4 (NP1) serves strict purity requirements; Ni201 covers high-temperature service; Ni200 handles battery and chemical duty; N6 (NP2) is the economical choice for general industrial corrosion — all documented per the respective GB and ASTM systems.

3. Customized Size & Tolerance

Plate is made to order: thickness 0.05-30mm, width 20-1000mm and length 1200-2000mm, with surface finish and tolerance confirmed per drawing before production.

4. Mechanical & Fabrication Properties

The annealed baseline is documented per heat — ≥462 MPa tensile strength, ≥35% elongation and 90-120 HB hardness — so machined, welded and formed components behave predictably. Tempers M (soft), 1/4H and 1/2H match the fabrication step to the service requirement.

Grade & Price Guide

Indicative FOB China reference prices for plate; final quotation per grade, size, quantity and temper.

Chemical Composition

Source: DLX product catalog. N4/N6 per GB system; Ni200/Ni201 per ASTM system.

Physical & Mechanical Properties

Product Specification

The 5 kg minimum applies to pure nickel plate; other forms follow the grade-based schedule (wire 1/5 kg, strip 5 kg, bar/pipe 10 kg).

Quality Assurance

Quality control for plate follows the form, not a generic checklist:

• Incoming: raw nickel verified per heat before processing.
• In-process: thickness, width and surface checked; flatness inspected.
• Final: chemistry verified per heat; tensile and hardness sampled per heat.
• Documentation: EN 10204 3.1 MTC with heat number, test results and full traceability.

Ni200/Ni201 plate is manufactured and tested to ASTM B162; N4/N6 follow GB/T 2054-2023. Testing methods and acceptance criteria follow the drawing specification and applicable standards.

Applicable Standards

Packaging & Delivery

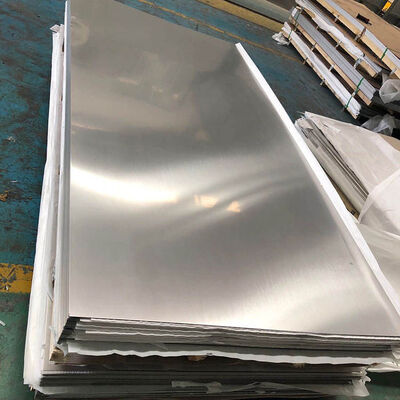

Plates are packed with protective sheets and shipped in wooden cases to prevent surface damage in transit. Production lead time is 7-15 days after drawing and grade confirmation. Every order ships with the complete export documentation set: packing list, commercial invoice and mill test certificate.

About Changzhou DLX Alloy Co., Ltd.

Industrial plate orders carry more than a spec: they carry drawings, delivery schedules and inspection expectations. Changzhou DLX Alloy Co., Ltd. has served industrial buyers since 2002 — from first samples to container volumes — with drawing-based production, EN 10204 3.1 MTC on every plate, and export packaging matched to the destination. That service experience is why industrial teams come back: the grade, size, temper and documentation are confirmed before production, so the plate arrives ready for fabrication.

FAQ

How are these plates used in industrial equipment?

They are fabricated into machined components, equipment structures, welded assemblies and replacement parts — where fabricability and documented consistency decide shop-floor performance.

Which grade should I choose?

N4 (NP1) for strict purity, Ni201 for high-temperature service, Ni200 for battery and chemical duty, and N6 (NP2) as the economical choice for industrial corrosion.

What sizes are available?

Thickness 0.05-30mm, width 20-1000mm and length 1200-2000mm, customized per drawing before production.

What is the MOQ for plate?

5 kg for pure nickel plate; other forms follow the grade-based schedule (wire 1/5 kg, strip 5 kg, bar/pipe 10 kg).

What certificates are provided?

Every delivery includes EN 10204 3.1 MTC with heat number and batch traceability, backed by ISO9001 and SGS certification. Plate meets ASTM B162 (Ni200/Ni201) and GB/T 2054-2023 (N4/N6).
