Pure Nickel Metal
Created with Pixso.

Precision Instrument Welding Alloy Pure Nickel Wire

Precision Instrument Welding Alloy Pure Nickel Wire

Brand Name: DLX
Model Number: pure nickel wire
MOQ: 2kg
Price: $20-$300/kg
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per month
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE,ROHS
Product Name:
Pure Nickel Wire
Grade:
200 201 N4 N6
Certificate:
ISO9001
Material:
Ni
Elongation (≥ %)::
35
Ni(min):
99.6%
Application::
Industry
Melting Point:
1435-1445℃
M.O.Q::
1KG
Delivery:
7-25 Days
Shape:
Wire
Size:
0.025-10mm

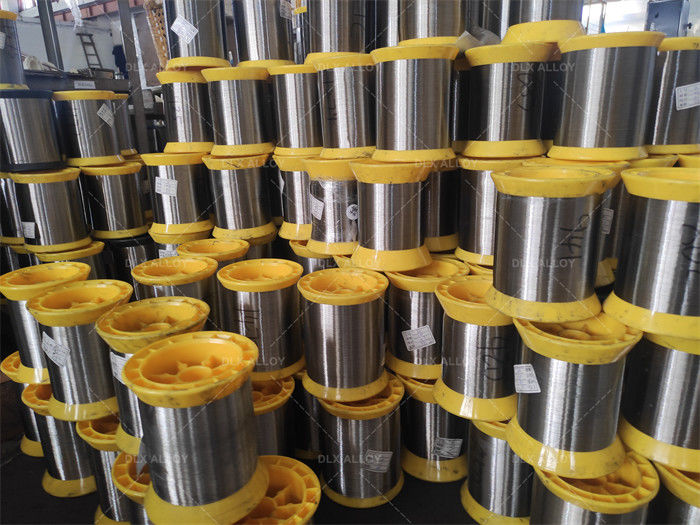

Packaging Details:
Spool package with Carton box, Coil package with polybag for pure nickel wire 0.025mm
Supply Ability:
500 tons per month
Highlight:

10mm Diameter Pure Nickel Wire

,

Welding Alloy Pure Nickel Wire

,

Precision Instrument Pure Nickel Wire

Product Description

Precision Instrument Welding Alloy Pure Nickel Wire


  • Pure nickel alloy

Elevate your projects with our high-quality pure nickel wire, crafted to the highest standards of precision and reliability. Whether used in automotive sensors, medical devices, or industrial machinery, this wire delivers exceptional conductivity and resistance to mechanical stress. Its smooth surface finish and uniform composition ensure consistent performance, while its ability to withstand extreme temperatures makes it a trusted choice for critical applications where reliability is paramount.

Grade Chemical Composition(%)
Ni+Co Cu Si Mn C Mg S P Fe
N4/201 99.9 ≤0.015 ≤0.03 ≤0.002 ≤0.01 ≤0.01 ≤0.001 ≤0.001 ≤0.04
N6/200 99.5 0.1 0.1 0.05 0.1 0.1 0.005 0.002 0.1

  • Physical Data
Size Range 0.025 to 8.0 mm Precision Instrument Welding Alloy Pure Nickel Wire 0
Density 8.89g/cm3
Specific Heat 0.109(456 J/kg.℃)
Electrical Resistivity 0.096×10-6ohm.m
Melting Point 1435-1446℃
Thermal Conductivity 70.2 W/m-K
Mean Coeff Thermal Expansion 13.3×10-6m/m.℃
Tensile Strength 462 Mpa
Yield Strength 148 Mpa
Elongation 47%
  • Production Process

1. Nickel ore extraction: Nickel is extracted from nickel ore through mining and processing.

2. Nickel refining: The extracted nickel is refined to remove impurities and achieve high purity.

3. Nickel melting: The refined nickel is melted in a furnace to form a molten nickel alloy.

4. Wire drawing: The molten nickel alloy is then drawn through a series of dies to reduce its diameter and form a continuous wire.

5. Annealing: The nickel wire is annealed to relieve internal stresses and improve its ductility.

6. Surface treatment: The nickel wire may undergo surface treatment processes such as cleaning, coating, or plating to enhance its properties or appearance.

7. Quality control: The final nickel wire product is inspected and tested to ensure it meets the required specifications before packaging and distribution.
