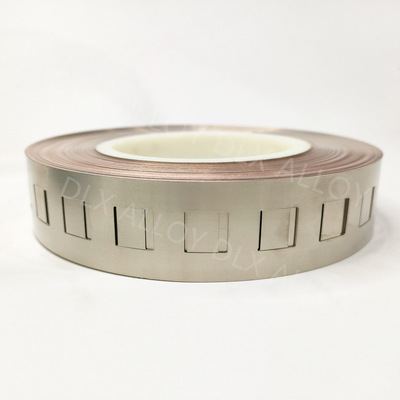

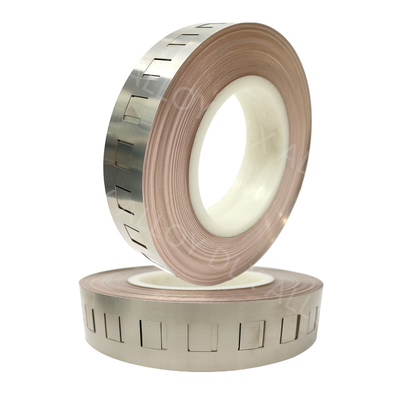

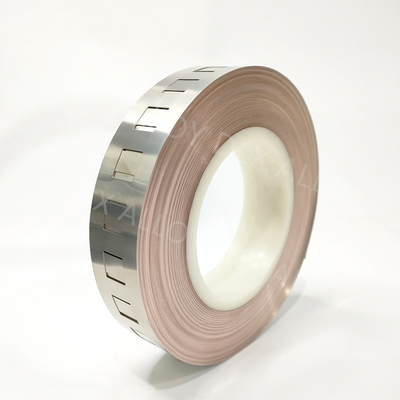

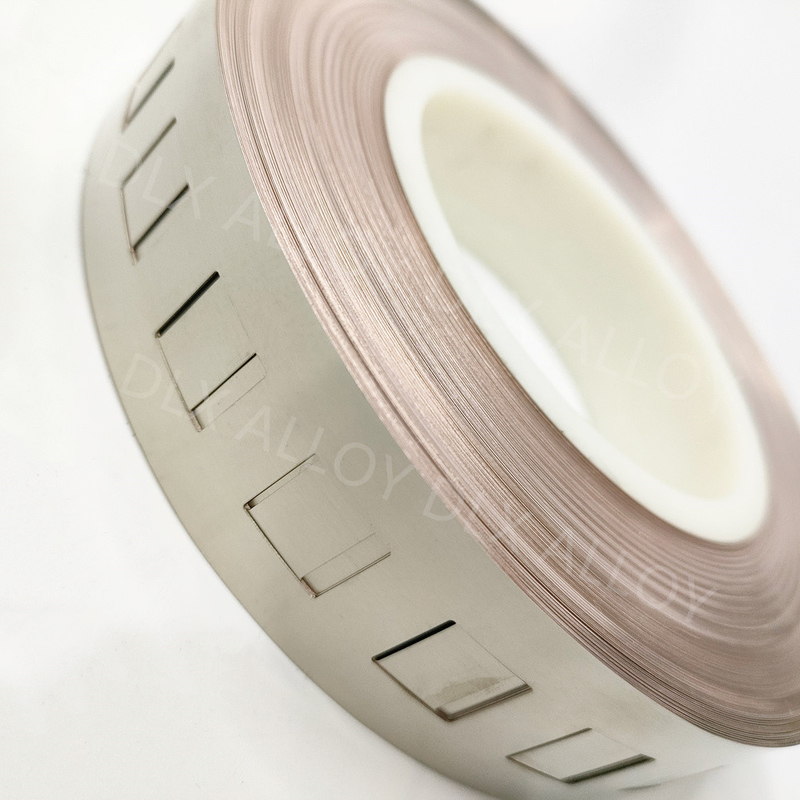

DLX Copper Nickel Strips With High Conductivity & Low Vapor Pressure
| Place of Origin | China |
|---|---|
| Brand Name | DLX |
| Certification | CE,ROHS |
| Model Number | Copper Nickel strip |
| Minimum Order Quantity | 2kg |
| Packaging Details | Spool package with Carton box, Coil package with polybag for pure nickel strip |
| Delivery Time | 5-21 days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Copper Nickel Strip | Certificate | ISO9001,ROHS |
|---|---|---|---|
| Application | Battery Pack, Industry | Size | Customized |
| Atomic Weight | 58.6934 G/mol | Block | D-block |
| Boiling Point | 2730 °C | Crystal Structure | Cubic |
| Density | 8.9 G/cm3 | Electron Configuration | [Ar] 3d8 4s2 |
| Form | Solid | Group Name | Transition Metals |
| Melting Point | 1455 °C | Product Name | Pure Nickel Metal |
| Highlight | Copper Nickel Strips,High Conductivity Copper Nickel Strips,Low Vapor Pressure Nickel Strips |
||
Product Description
DLX copper Nickel Strips with High Conductivity & Low Vapor Pressure
Copper nickel strip is a type of metal strip that is made from a combination of copper and nickel. It is commonly used in various industries due to its unique properties and characteristics.
In addition, copper nickel strip has high thermal conductivity, allowing it to effectively transfer heat. This property makes it useful in heat exchangers and cooling systems. It also has good mechanical strength and ductility, making it easy to shape and form into various components.
Dimension:
The thickness and dimensions can be met what customers required.
1. Material: pure nickel or nickel steel
2. Width: 2, 3, 4, 5, 6, 7, 8, 10, 15mm or customized width
3. Thickness: hot sale are 0.15mm/0.2mm, or customized thickness
4. Used for 18650, 26650, ,21700,32650, 32700 battery pack
4. Color: silver
5. 18650 nickel strip: 1P, 2P, 3P, 4P, 5P, 6P, 7P, 8P, 9P
26650 nickel strip: 1P, 2P, 3P, 4P, 5P, 6P, 7P, 8P, 9P
32650 nicekl strip: 1P, 2P, 3P, 4P, 5P
Physical properties
1.Spot welding is good
2.The resistance is lower
3. Battery discharge time longer
4. The battery spot welding is stronger.
Functions/Applications
1. manufacturing nickel-cadmium battery
2. nickel-hydrogen battery
3. lithium cell
4. assembled battery
5. industries of electric tool and special lights
6. Superconductor Applications
Dimension:
The thickness and dimensions can be met what customers required.
1. Material: pure nickel or nickel steel
2. Width: 2, 3, 4, 5, 6, 7, 8, 10, 15mm or customized width
3. Thickness: hot sale are 0.15mm/0.2mm, or customized thickness
4. Used for 18650, 26650, ,21700,32650, 32700 battery pack
4. Color: silver
5. 18650 nickel strip: 1P, 2P, 3P, 4P, 5P, 6P, 7P, 8P, 9P
26650 nickel strip: 1P, 2P, 3P, 4P, 5P, 6P, 7P, 8P, 9P
32650 nicekl strip: 1P, 2P, 3P, 4P, 5P
Physical properties
1.Spot welding is good
2.The resistance is lower
3. Battery discharge time longer
4. The battery spot welding is stronger.
Functions/Applications
1. manufacturing nickel-cadmium battery
2. nickel-hydrogen battery
3. lithium cell
4. assembled battery
5. industries of electric tool and special lights
6. Superconductor Applications
| Grade | Chemical Composition(%) | ||||||||
| Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe | |
| N4/201 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
| N6/200 | 99.5 | 0.1 | 0.1 | 0.05 | 0.1 | 0.1 | 0.005 | 0.002 | 0.1 |
Size range
Wire: 0.025 to 8.0 mm.
Strip:0.05-1mm * 5-240mm
The thickness and dimensions can be met what customers required.
Physical properties
1.Spot welding of pure nickel is good
2.The resistance of pure nickel is lower
3. Battery discharge time of pure nickel strip longer
4. The battery spot welding is stronger.
Pure nickel Functions/Applications
1. manufacturing nickel-cadmium battery
2. nickel-hydrogen battery
3. lithium cell
4. assembled battery
5. industries of electric tool and special lights
6. Superconductor Applications
