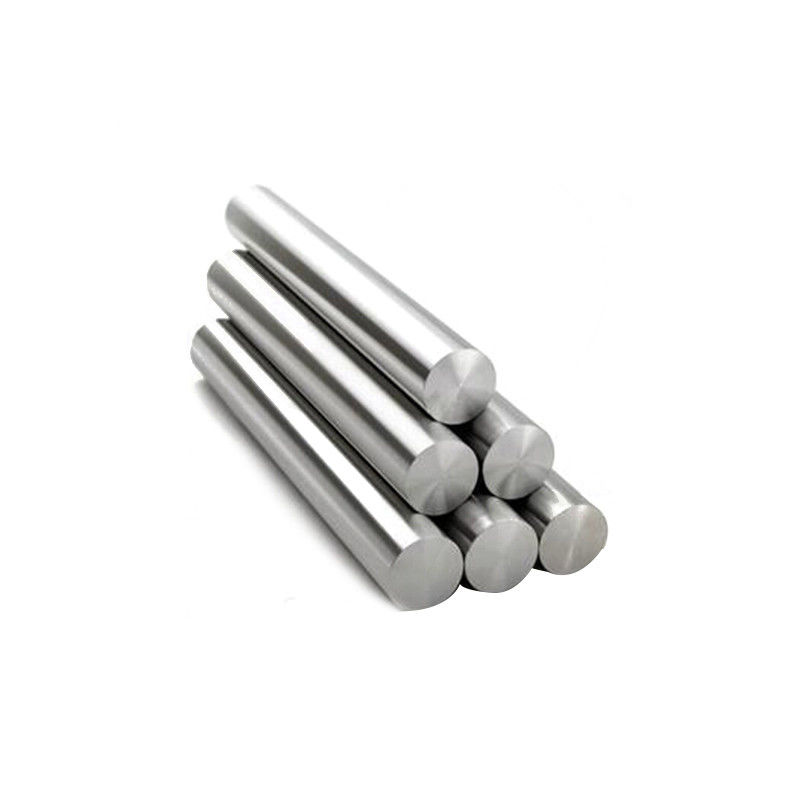

• Bright 420 MPA 50mm Soft CuNi44 Heating Nickel Copper Rod
Bright 420 MPA 50mm Soft CuNi44 Heating Nickel Copper Rod

Bright 420 MPA 50mm Soft CuNi44 Heating Nickel Copper Rod

Product Details:

Place of Origin: China
Brand Name: DLX
Model Number: CuNi44

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Material: Nickel Copper Nickel(Min): 44%
Resistivity: 0.5 Tensile Strength: 420 MPA
Density: 8.9 G/cm3 Application: Heating, Resistivity
Condition: Hard / Soft Sureface: Bright
Delivery Time: 7-20 Days Maximum Temperature: 420℃
Melting Point: 1100℃ Name: Resistance Heating Rod
High Light:

420 MPA Nickel Copper Rod

,

50mm Soft Cupro Nickel Alloy

,

CuNi44 Nickel Copper Rod

Product Description

Bright 420 MPA 50mm Soft CuNi44 Heating Nickel Copper Rod 0


Bright 420 MPA 50mm Soft CuNi44 Heating Nickel Copper Rod 1


  • CuNi Series

Copper nickel alloy has low electric resisitance, good heat-resistant and corrosion-resistant, easy to be processed and lead welded. It is used to make the key components in the thermal overload relay, low resistance thermal circuit breaker, and the electrical appliances. It is also an important material for electrical heating cable.





Common Name:Constantan Rod










  • Copper Nickel alloy performance tables
Properties/ Material Resistivity Max.working temperature Tensile strength Melting point Density TCR EMF vs Cu
( 200C μΩ.m) ( 0C ) ( Mpa ) ( 0C ) ( g/cm3 ) x10-6 / 0C (μV/ 0C)
          (20~600 0C) (0~100 0C)
NC003 0.03 200 210 1085 8.9 <100 -8
(CuNi1)
NC005 0.05 200 220 1090 8.9 <120 -12
(CuNi2)
NC010 0.1 220 250 1095 8.9 <60 -18
(CuNi6)
NC012 0.12 250 270 1097 8.9 <57 -22
(CuNi8)
NC015 0.15 250 290 1100 8.9 <50 -25
(CuNi10)
NC020 0.2 300 310 1115 8.9 <30 -28
(CuNi14)
NC025 0.25 300 340 1135 8.9 <25 -32
(CuNi19)
NC030 0.3 300 350 1150 8.9 <16 -34
(CuNi23)
NC035 0.35 350 400 1170 8.9 <10 -37
(CuNi30)
NC040 0.4 350 400 1180 8.9 0 -39
(CuNi34)
NC050 0.5 400 420 1200 8.9 <-6 -43
(CuNi44)

  • The Form we could offer
Size Range
Wire
dia 0.03-7.5mm
Bright 420 MPA 50mm Soft CuNi44 Heating Nickel Copper Rod 2
dia 8.0-12.0mm
Bright 420 MPA 50mm Soft CuNi44 Heating Nickel Copper Rod 3
Ribbon
(0.05-0.35)*(0.5-6.0)mm
Bright 420 MPA 50mm Soft CuNi44 Heating Nickel Copper Rod 4
Strip
(0.50-2.5)*(5-180)mm
Bright 420 MPA 50mm Soft CuNi44 Heating Nickel Copper Rod 5
Rod
8-50mm

Bright 420 MPA 50mm Soft CuNi44 Heating Nickel Copper Rod 6
