CuNi44 420 MPA Bright 2.5mmx180mm Resistance Strip CuNi Alloy

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: CuNi44

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: Spool package with Carton box, Coil package with polybag

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

CuNi44 CuNi Alloy

,

180mm Cupro Copper

,

Resistance Strip CuNi Alloy

Material:
Nickel Copper
Nickel(Min):
44%
Resistivity:
0.5
Tensile Strength:
420 MPA
Density:
8.9 G/cm3
Application:
Heating, Resistivity
Condition:
Hard / Soft
Sureface:
Bright
Delivery Time:
7-20 Days
Maximum Temperature:
420℃
Melting Point:
1100℃
Name:
Resistance Heating Strip
Material:
Nickel Copper
Nickel(Min):
44%
Resistivity:
0.5
Tensile Strength:
420 MPA
Density:
8.9 G/cm3
Application:
Heating, Resistivity
Condition:
Hard / Soft
Sureface:
Bright
Delivery Time:
7-20 Days
Maximum Temperature:
420℃
Melting Point:
1100℃
Name:
Resistance Heating Strip
Description
CuNi44 420 MPA Bright 2.5mmx180mm Resistance Strip CuNi Alloy

CuNi44 420 MPA Bright 2.5mmx180mm Resistance Strip CuNi Alloy 0


CuNi44 420 MPA Bright 2.5mmx180mm Resistance Strip CuNi Alloy 1


  • CuNi Series

Copper nickel alloy has low electric resisitance, good heat-resistant and corrosion-resistant, easy to be processed and lead welded. It is used to make the key components in the thermal overload relay, low resistance thermal circuit breaker, and the electrical appliances. It is also an important material for electrical heating cable.





Common Name:Constantan Strip










  • Copper Nickel alloy performance tables
Properties/ Material Resistivity Max.working temperature Tensile strength Melting point Density TCR EMF vs Cu
( 200C μΩ.m) ( 0C ) ( Mpa ) ( 0C ) ( g/cm3 ) x10-6 / 0C (μV/ 0C)
          (20~600 0C) (0~100 0C)
NC003 0.03 200 210 1085 8.9 <100 -8
(CuNi1)
NC005 0.05 200 220 1090 8.9 <120 -12
(CuNi2)
NC010 0.1 220 250 1095 8.9 <60 -18
(CuNi6)
NC012 0.12 250 270 1097 8.9 <57 -22
(CuNi8)
NC015 0.15 250 290 1100 8.9 <50 -25
(CuNi10)
NC020 0.2 300 310 1115 8.9 <30 -28
(CuNi14)
NC025 0.25 300 340 1135 8.9 <25 -32
(CuNi19)
NC030 0.3 300 350 1150 8.9 <16 -34
(CuNi23)
NC035 0.35 350 400 1170 8.9 <10 -37
(CuNi30)
NC040 0.4 350 400 1180 8.9 0 -39
(CuNi34)
NC050 0.5 400 420 1200 8.9 <-6 -43
(CuNi44)

  • The Form we could offer
Size Range
Wire
dia 0.03-7.5mm
CuNi44 420 MPA Bright 2.5mmx180mm Resistance Strip CuNi Alloy 2
dia 8.0-12.0mm
CuNi44 420 MPA Bright 2.5mmx180mm Resistance Strip CuNi Alloy 3

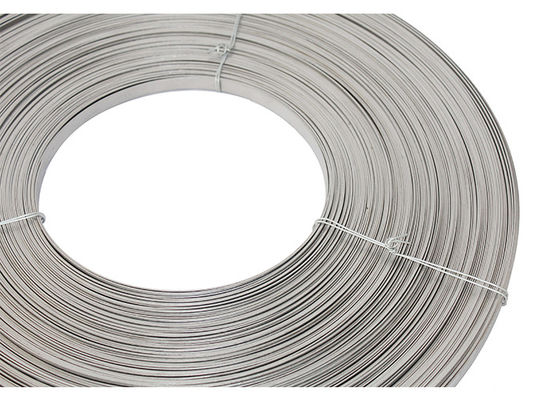

Ribbon
(0.05-0.35)*(0.5-6.0)mm
CuNi44 420 MPA Bright 2.5mmx180mm Resistance Strip CuNi Alloy 4

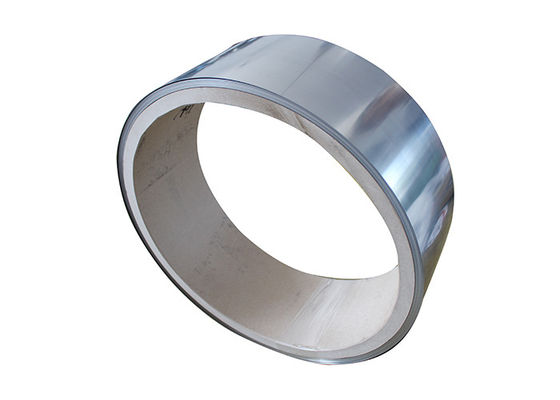

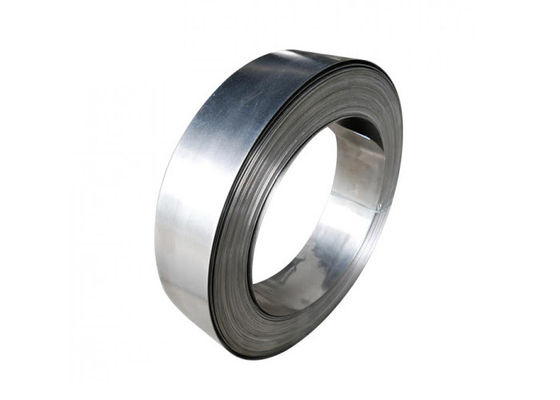

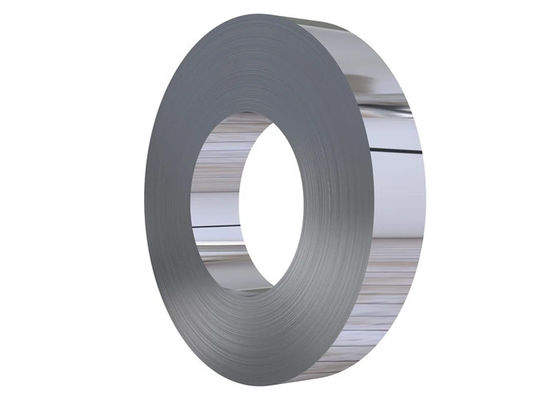

Strip
(0.50-2.5)*(5-180)mm
CuNi44 420 MPA Bright 2.5mmx180mm Resistance Strip CuNi Alloy 5
Rod
8-50mm

CuNi44 420 MPA Bright 2.5mmx180mm Resistance Strip CuNi Alloy 6
