Copper Nickel Alloy Wire CuNi1 CuNi2 CuNi10 CuNi14 CuNi19 CuNi23 CuNi30 CuNi44

Product Details

Place of Origin: China Jiangsu

Brand Name: DLX

Certification: CE,ROHS

Model Number: CuNi10

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: Spool package with Carton box, Coil package with polybag for CuNi10

Delivery Time: 5-20 Days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 500 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Copper Nickel Alloy Wire CuNi1

,

290MPA Copper Nickel Alloy Wire

,

CuNi2 Alloy Wire

Material:
Nickel Copper
Nickel(Min):
10%
Resistivity:
0.15
Tensile Strength:
290MPA
Density:
8.9 G/cm3
Application:
Heating, Resistivity
Condition:
Hard / Soft
Sureface:
Bright
Delivery Time:
7-20 Days
Maximum Temperature:
250℃
Melting Point:
1100℃
Material:
Nickel Copper
Nickel(Min):
10%
Resistivity:
0.15
Tensile Strength:
290MPA
Density:
8.9 G/cm3
Application:
Heating, Resistivity
Condition:
Hard / Soft
Sureface:
Bright
Delivery Time:
7-20 Days
Maximum Temperature:
250℃
Melting Point:
1100℃
Description
Copper Nickel Alloy Wire CuNi1 CuNi2 CuNi10 CuNi14 CuNi19 CuNi23 CuNi30 CuNi44

Copper Nickel Alloy Wire CuNi1 CuNi2 CuNi10 CuNi14 CuNi19 CuNi23 CuNi30 CuNi44 0



Copper Nickel Alloy Heating Resistance Wire CuNi1/CuNi2/CuNi6/CuNi8/CuNi10/CuNi14/CuNi19/CuNi23/CuNi30/CuNi44


Copper Nickel Alloy Wire CuNi1 CuNi2 CuNi10 CuNi14 CuNi19 CuNi23 CuNi30 CuNi44 1


  • CuNi Series

Copper-based heating resistance alloy CuNi 10 wire has lower electrical resistance, good echanical, excellent welding and anti-corrosion properties. It is used to make the key components in the thermal overload relay, low resistance thermal circuit breaker, and the electrical appliances. It is also an important material for electrical heating cable.
















  • Copper Nickel alloy performance tables
Properties/ Material Resistivity Max.working temperature Tensile strength Melting point Density TCR EMF vs Cu
( 200C μΩ.m) ( 0C ) ( Mpa ) ( 0C ) ( g/cm3 ) x10-6 / 0C (μV/ 0C)
          (20~600 0C) (0~100 0C)
NC003 0.03 200 210 1085 8.9 <100 -8
(CuNi1)
NC005 0.05 200 220 1090 8.9 <120 -12
(CuNi2)
NC010 0.1 220 250 1095 8.9 <60 -18
(CuNi6)
NC012 0.12 250 270 1097 8.9 <57 -22
(CuNi8)
NC015 0.15 250 290 1100 8.9 <50 -25
(CuNi10)
NC020 0.2 300 310 1115 8.9 <30 -28
(CuNi14)
NC025 0.25 300 340 1135 8.9 <25 -32
(CuNi19)
NC030 0.3 300 350 1150 8.9 <16 -34
(CuNi23)
NC035 0.35 350 400 1170 8.9 <10 -37
(CuNi30)
NC040 0.4 350 400 1180 8.9 0 -39
(CuNi34)
NC050 0.5 400 420 1200 8.9 <-6 -43
(CuNi44)

  • The Form we could offer
Size Range

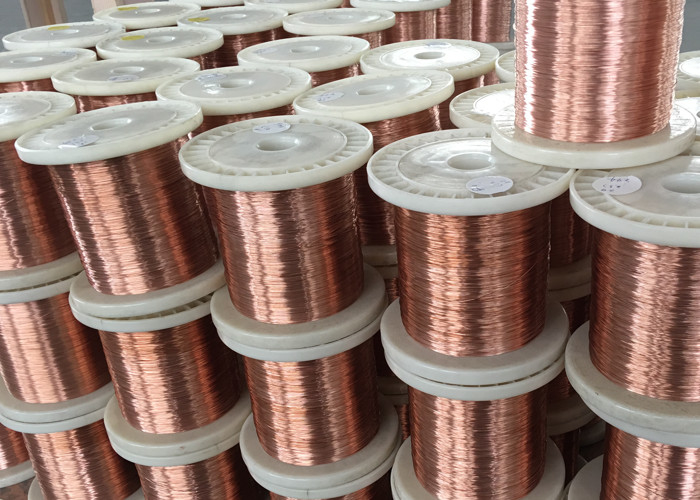

Wire
dia 0.03-7.5mm
Copper Nickel Alloy Wire CuNi1 CuNi2 CuNi10 CuNi14 CuNi19 CuNi23 CuNi30 CuNi44 2
dia 8.0-12.0mm
Copper Nickel Alloy Wire CuNi1 CuNi2 CuNi10 CuNi14 CuNi19 CuNi23 CuNi30 CuNi44 3
Ribbon
(0.05-0.35)*(0.5-6.0)mm
Copper Nickel Alloy Wire CuNi1 CuNi2 CuNi10 CuNi14 CuNi19 CuNi23 CuNi30 CuNi44 4
Strip
(0.50-2.5)*(5-180)mm
Copper Nickel Alloy Wire CuNi1 CuNi2 CuNi10 CuNi14 CuNi19 CuNi23 CuNi30 CuNi44 5
Rod
8-50mm

Copper Nickel Alloy Wire CuNi1 CuNi2 CuNi10 CuNi14 CuNi19 CuNi23 CuNi30 CuNi44 6
