| Brand Name: | DLX |
| Model Number: | Nickel wire |
| MOQ: | 2kg |
| Price: | $20-$300/kg |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 500 tons per month |
This 0.025mm Nickel 200 wire is built for industrial applications — 99.2% minimum nickel content, precision-drawn micro wire, formable and weldable. The purity claim is grade-accurate: Ni200 holds ≥99.2% nickel, tested per batch. Produced on our own nickel-alloy line, every spool is inspected per batch before packaging.
| Parameter | Value | Note |
|---|---|---|
| Diameter | 0.025 mm (micro wire) | 0.025-10 mm range available |
| Tolerance | Per drawing / ASTM B164 | exact values per drawing |
| Continuous length | Per order | dependent on diameter |
| Temper | Soft / hard / 1/2 hard | per drawing |
| Surface | Clean, oxide-free | per drawing |
MOQ: 1 kg for micro wire (≤0.05 mm).
Nickel 200 (UNS N02200) is commercially pure nickel with a minimum nickel content of 99.2% and a carbon limit of 0.15%. It is positioned for battery and chemical service, combining corrosion resistance with good electrical and thermal conductivity.
At 0.025 mm, drawing precision decides performance. Wire is drawn to the specified diameter with tolerances locked per drawing and inspected at final inspection, so the micro wire holds its dimension and surface across the spool.
Nickel 200 wire responds well to hot rolling, cold forming and machining, and is compatible with conventional welding, brazing and soldering processes — the combination that makes micro wire practical in industrial assemblies.
Produced on our own nickel-alloy line, every spool passes chemical composition analysis, diameter inspection and surface checks in our in-house inspection process before packaging.
Typical use: battery and chemical service, electronics, and industrial assemblies where purity, conductivity and formability matter. Diameter, temper and finish are confirmed against the application at order time.
| Grade | Ni Content | Best Application | Reference Price (FOB, USD/kg) |
|---|---|---|---|
| N4 (NP1) | ≥99.9% | Vacuum electronics | 420-480 |
| Ni201 | ≥99.0% | High-temp service | 350-390 |
| Ni200 | ≥99.2% | Battery, chemical | 340-380 |
| N6 (NP2) | ≥99.5% | Industrial corrosion | 300-340 |
Reference prices are FOB indicative ranges per grade; final quotation depends on size, quantity and delivery terms.
| Element (wt%) | N4 | N6 | Ni201 | Ni200 |
|---|---|---|---|---|
| Ni+Co | 99.9 | 99.5 | — | — |
| Ni | — | — | ≥99.0 | ≥99.2 |
| C | ≤0.01 | ≤0.10 | ≤0.02 | ≤0.15 |
| Cu | ≤0.015 | ≤0.10 | ≤0.25 | ≤0.25 |
| Si | ≤0.03 | ≤0.10 | ≤0.35 | ≤0.35 |
| Mn | ≤0.002 | ≤0.05 | ≤0.35 | ≤0.35 |
| Fe | ≤0.04 | ≤0.10 | ≤0.40 | ≤0.40 |
| S | ≤0.001 | ≤0.005 | ≤0.01 | ≤0.01 |
| P | ≤0.001 | ≤0.002 | — | — |
| Mg | ≤0.01 | ≤0.10 | — | — |
Source: DLX product catalogue; per-batch verification available on request.
| Density | 8.908 g/cm³ |
| Melting point | 1435-1446°C |
| Curie temperature | 358°C |
| Tensile strength (annealed) | ≥462 MPa |
| Elongation (annealed) | ≥35% |
| Hardness (annealed) | 90-120 HB |
| Shear modulus | ~76 GPa |
| Electrical resistivity | 0.096 μΩ·m (20°C) |
| Thermal conductivity (Ni200) | 70.2 W/m·K |
| Form | Pure nickel wire |
| Featured grade | Nickel 200 (UNS N02200) |
| Diameter | 0.025 mm micro wire (0.025-10 mm available) |
| Temper | Soft / hard / 1/2 hard per drawing |
| Surface | Clean, oxide-free per drawing |
| Packaging | Spool with carton box, or coil with polybag |
| Ni200 / Ni201 | ASTM B164 (Nickel Rod, Bar and Wire) |
| N4 (NP1) / N6 (NP2) | GB/T 21653 (Nickel and Nickel Alloy Wire and Drawn Wire Billet) |

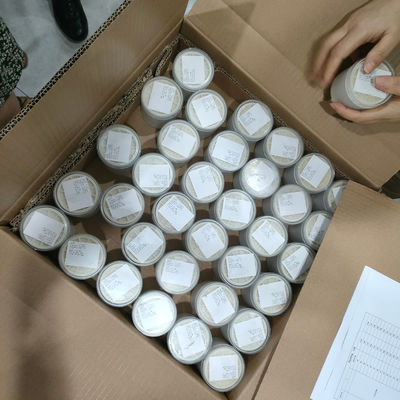

Wire is supplied on spools with carton boxes, or as coils with polybags, per order. Lead time: 7-15 days. Material certificates and inspection documents accompany each shipment.
A micro wire is only as good as its verification: 99.2% nickel claimed must be 99.2% nickel delivered, at 0.025 mm, spool after spool. Changzhou DLX Alloy Co., Ltd. — 12,000 m² nickel-only plant since 2002, 1,200 tonnes per year, ISO9001 with SGS support — verifies both: per-batch composition testing and diameter inspection in-house, with EN 10204 3.1 documentation on request.
A: Yes — Nickel 200 (UNS N02200) holds a minimum of 99.2% nickel, tested per batch with EN 10204 3.1 documentation on request.
A: 0.025 mm micro wire is featured, with the 0.025-10 mm range available per drawing.
A: Yes. It responds well to cold forming and machining, and is compatible with conventional welding, brazing and soldering.
A: Battery and chemical service, electronics, and industrial assemblies where purity, conductivity and formability matter.
A: MOQ 1 kg for micro wire; samples on request (shipping at customer's cost). Lead time: 7-15 days.
