Low Resistance Constantan Wire Copper Nickel Alloy Cuni44 Wire
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Nickel Copper | Nickel(Min) | 44% |
|---|---|---|---|
| Resistivity | 0.5 | Tensile Strength | 420 MPA |
| Density | 8.9 G/cm3 | Application | Heating, Resistivity |
| Condition | Hard / Soft | Sureface | Bright |
| Delivery Time | 7-20 Days | Maximum Temperature | 420℃ |
| Melting Point | 1100℃ | ||
| Highlight | Copper Nickel Alloy Cuni44 Wire,Low Resistance Constantan Cuni44 Wire,8.9 G/Cm3 Cuni Alloy |
||
Product Description

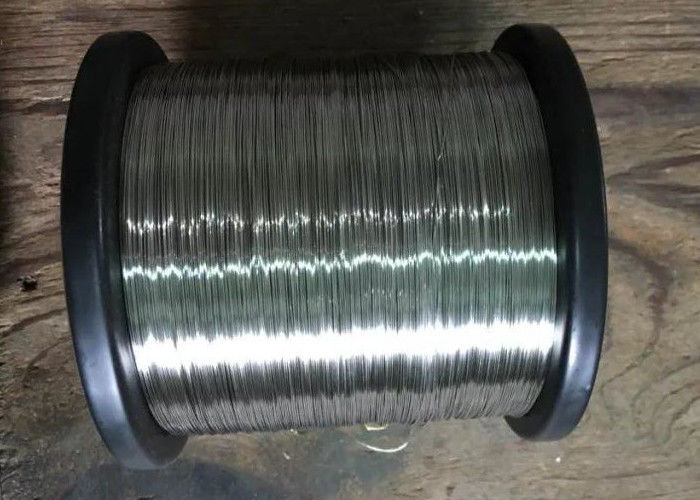

Low Resistance Constantan Wire Copper Nickel Alloy Cuni44 Wire
CuNi Series
Copper nickel CuNi44 alloy has low electric resistance,good heat-resistant and corrosion-resistant,easy to be processed and lead welded.
It is used to make the key components in the thermal overload relay,low resistance thermal circuit breaker, and the electrical
appliances. It is also an important material for electrical heating cable.
Size dimension range:
Wire: 0.05-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
CuNi series:CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23,CuNi30, CuNi34, CuNi44.
Also named NC003, NC005, NC010, NC012, NC015, NC020, NC025, NC030, NC035, NC040, NC050.
- Copper Nickel alloy performance tables
| Properties/ Material | Resistivity | Max.working temperature | Tensile strength | Melting point | Density | TCR | EMF vs Cu |
| ( 200C μΩ.m) | ( 0C ) | ( Mpa ) | ( 0C ) | ( g/cm3 ) | x10-6 / 0C | (μV/ 0C) | |
| (20~600 0C) | (0~100 0C) | ||||||
| NC003 | 0.03 | 200 | 210 | 1085 | 8.9 | <100 | -8 |
| (CuNi1) | |||||||
| NC005 | 0.05 | 200 | 220 | 1090 | 8.9 | <120 | -12 |
| (CuNi2) | |||||||
| NC010 | 0.1 | 220 | 250 | 1095 | 8.9 | <60 | -18 |
| (CuNi6) | |||||||
| NC012 | 0.12 | 250 | 270 | 1097 | 8.9 | <57 | -22 |
| (CuNi8) | |||||||
| NC015 | 0.15 | 250 | 290 | 1100 | 8.9 | <50 | -25 |
| (CuNi10) | |||||||
| NC020 | 0.2 | 300 | 310 | 1115 | 8.9 | <30 | -28 |
| (CuNi14) | |||||||
| NC025 | 0.25 | 300 | 340 | 1135 | 8.9 | <25 | -32 |
| (CuNi19) | |||||||
| NC030 | 0.3 | 300 | 350 | 1150 | 8.9 | <16 | -34 |
| (CuNi23) | |||||||
| NC035 | 0.35 | 350 | 400 | 1170 | 8.9 | <10 | -37 |
| (CuNi30) | |||||||
| NC040 | 0.4 | 350 | 400 | 1180 | 8.9 | 0 | -39 |
| (CuNi34) | |||||||
| NC050 | 0.5 | 400 | 420 | 1200 | 8.9 | <-6 | -43 |
| (CuNi44) |
- The Form we could offer
| Size Range | Wire | Ribbon | Strip | Rod | ||||
| dia 0.03-7.5mm | dia 8.0-12.0mm | (0.05-0.35)*(0.5-6.0)mm | (0.50-2.5)*(5-180)mm | 8-50mm |
||||
| Do you provide free samples? |
| Yes, we can provide a free sample for testing,buyer should bear all the shipping costs. |
| What is your payment terms? |
| T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal |
| We are doing the best to match your demand. |
| What is the lead time? |
| Usually sample lead time is 7 days after payment has been confirmed. |
| Normal order is 10-30days,it depends on customers' quantity. |
| Anyway,we try to offer good-quality products as soon as possible. |
