| Brand Name: | DLX |
| Model Number: | Pure Nickel |
| MOQ: | 5kg |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 1200 tons per month |
Changzhou DLX Alloy Co., Ltd. manufactures high-purity NP2 (N6) industrial nickel wire from its 20,000+ m² production facility with a stable capacity of 1,200 tons per month. Engineered with Ni+Co ≥ 99.5% (typical purity 99.6%), NP2 nickel wire provides exceptional resistance to caustic reducing media, alkaline solutions, and high-temperature oxidation.
Drawing from ultra-fine 0.025 mm micro wire up to 10.0 mm heavy-duty wire, DLX maintains rigorous dimensional tolerances and surface cleanliness required for SOEC hydrogen electrolysis meshes, vacuum electronic grids, precision wire-wound resistors, and chemical processing components. Each production batch is fully traceable with EN 10204 3.1 Material Test Certificates.
1. Corrosion Resistance & Chemical Stability
NP2 (N6) pure nickel wire offers superior resistance in hot concentrated caustic alkalis (NaOH, KOH) and non-oxidizing acid environments. The controlled low-carbon and low-impurity composition prevents intergranular embrittlement during thermal cycles, ensuring prolonged service life in chlor-alkali production, chemical synthesis reactors, and SOEC hydrogen cells.
2. Thermal and Physical Performance Parameters
Featuring a fixed melting point of 1435°C-1446°C and a Curie temperature of 358°C, NP2 wire preserves mechanical stability across extreme operational envelopes. In annealed state, the material exhibits a shear modulus of ~76 GPa, tensile strength ≥420 MPa, and hardness within 90-120 HB, preventing premature fatigue in continuous vibration or winding operations.
3. Electrical Conductivity & Micro-Wire Specifications
With electrical resistivity of 0.096 μΩ·m at 20°C, NP2 pure nickel wire ensures high thermal and electrical conduction efficiency. Below are reference calculated values for standard wire gauges:
| Grade | Ni Content | Best Application | Reference Price (FOB, USD/kg) |
|---|---|---|---|
| N4 (NP1) | ≥99.9% | Vacuum electronics | 420-480 |
| Ni201 | ≥99.0% | High-temp service | 350-390 |
| Ni200 | ≥99.2% | Battery, chemical | 340-380 |
| N6 (NP2) | ≥99.5% | Industrial corrosion | 300-340 |
Reference prices are FOB indicative ranges per grade; final quotation depends on size, quantity and delivery terms.
| Element (wt%) | N4 | N6 | Ni201 | Ni200 |
|---|---|---|---|---|
| Ni+Co | 99.9 | 99.5 | — | — |
| Ni | — | — | ≥99.0 | ≥99.2 |
| C | ≤0.01 | ≤0.10 | ≤0.02 | ≤0.15 |
| Cu | ≤0.015 | ≤0.10 | ≤0.25 | ≤0.25 |
| Si | ≤0.03 | ≤0.10 | ≤0.35 | ≤0.35 |
| Mn | ≤0.002 | ≤0.05 | ≤0.35 | ≤0.35 |
| Fe | ≤0.04 | ≤0.10 | ≤0.40 | ≤0.40 |
| S | ≤0.001 | ≤0.005 | ≤0.01 | ≤0.01 |
| P | ≤0.001 | ≤0.002 | — | — |
| Mg | ≤0.01 | ≤0.10 | — | — |
Source: DLX product catalogue; per-batch verification available on request.
| Density | 8.908 g/cm³ |
| Melting point | 1435-1446°C |
| Curie temperature | 358°C |
| Tensile strength (annealed) | ≥420 MPa |
| Elongation (annealed) | ≥35% |
| Hardness (annealed) | 90-120 HB |
| Shear modulus | ~76 GPa |
| Electrical resistivity | 0.096 μΩ·m (20°C) |
| Thermal conductivity (Ni200) | 70.2 W/m·K |
| Form | Pure nickel wire |
| Featured grade | NP2 (N6) |
| Diameter | 0.025-10 mm, per drawing |
| Temper | Soft / hard / 1/2 hard per drawing |
| Surface | Clean, oxide-free per drawing |
| Packaging | Spool with carton box, or coil with polybag |
| Ni200 / Ni201 | ASTM B164 (Nickel Rod, Bar and Wire) |
| N4 (NP1) / N6 (NP2) | GB/T 21653 (Nickel and Nickel Alloy Wire and Drawn Wire Billet) |

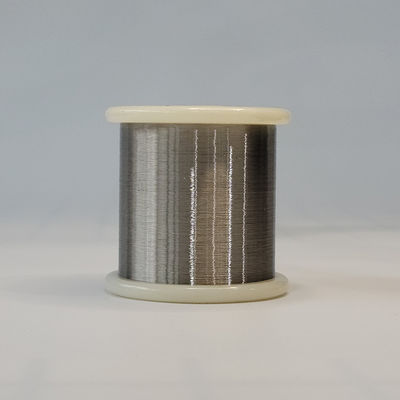

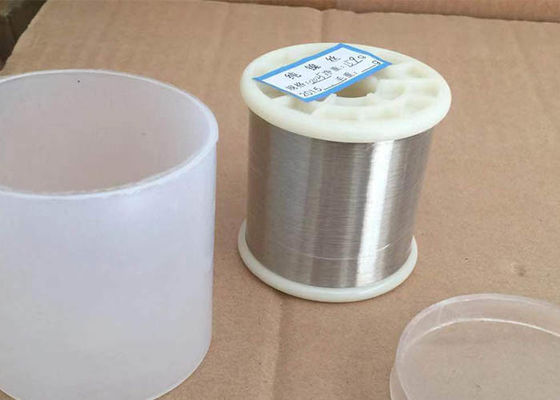

Wire is supplied on spools with carton boxes, or as coils with polybags, per order. Lead time: 7-15 days. Material certificates and inspection documents accompany each shipment.
Changzhou DLX Alloy Co., Ltd. has specialized in the R&D and production of high-performance nickel alloys and pure nickel wire since 2002. Operating a 20,000+ m² integrated manufacturing facility with a monthly capacity of 1,200 tons, DLX manages full-process production from vacuum induction melting (VIM), electroslag remelting (ESR), precision hot rolling to cold drawing of ultra-fine micro wire down to 0.025 mm. With complete in-house testing laboratories and strict adherence to ISO9001 standards, DLX supplies global OEM partners with verified materials and custom engineering support.
Q1: What are the primary industrial applications for 0.025mm NP2 pure nickel wire?
A: NP2 (N6) 0.025mm micro nickel wire is primarily utilized in precision knitted wire mesh for SOEC/PEM hydrogen electrolyzers, vacuum electronic components, precision sensor leads, chemical filtration fabric, and high-reliability battery current collection screens requiring high electrical conductivity and caustic corrosion resistance.
Q2: What is the melting point and thermal stability of NP2 nickel wire?
A: NP2 pure nickel wire has a melting point of 1435°C to 1446°C, a Curie temperature of 358°C, and an annealed tensile strength ≥420 MPa, providing reliable structural and thermal stability in high-temperature and alkaline working environments.
Q3: What quality documentation is provided with the shipment?
A: Every shipment includes an authentic EN 10204 3.1 Material Test Certificate detailing actual heat chemical composition, tensile strength, elongation, and dimensional inspection records. Third-party testing via SGS or BV is available upon request.
Q4: What is the MOQ and sample policy?
A: The standard minimum order quantity is 5 kg for all wire diameters. DLX provides 0.5 kg free trial samples for qualification testing, with standard dispatch within 3-5 business days.
Q5: What packaging methods are used to prevent wire deformation during transit?
A: Ultra-fine wire (0.025 mm to 0.5 mm) is precision-wound on DIN standard spools with sealed protective film and cushioned carton boxing. Heavier gauges are supplied in moisture-proof wrapped coils to guarantee zero oxidation and damage during international air or sea freight.
