0.2mm Pure Nickel Strip For 18650 Battery Pure Nickel 200 Strip

0.2mm Pure Nickel Strip for 18650 Battery (Ni200) — the workhorse gauge of battery nickel strip, with density of 8.908 g/cm³, melting point of 1435-1446 °C and low electrical resistivity of 0.096 μΩ·m (20 °C). Pure nickel offers good mechanical properties, high corrosion resistance in caustic and hydrofluoric environments, magnetic behaviour below the Curie temperature of 358 °C, high heat transfer and high electrical conductivity. Pure nickel also has good spot welding properties and high tensile strength (≥462 MPa annealed). Pure nickel strip is mainly used in lithium batteries, battery ears, metal stamping parts, electric vehicles, nickel batteries, telecommunications, electric vacuum and special bulbs.

1. Low resistance — low electrical resistivity (0.096 μΩ·m) keeps pack temperature down under load.
2. Pure nickel is easy to weld — stable connection with consistent spot weld quality.
3. Good tensile strength and easy assembly — annealing condition supports trouble-free operation.
4. Shaped design — 0.2 mm strip with 19.5 mm pitch for 18650 battery pack assembly.
5. High electrical conductivity.
6. Anti-corrosive and low resistance in service environments.

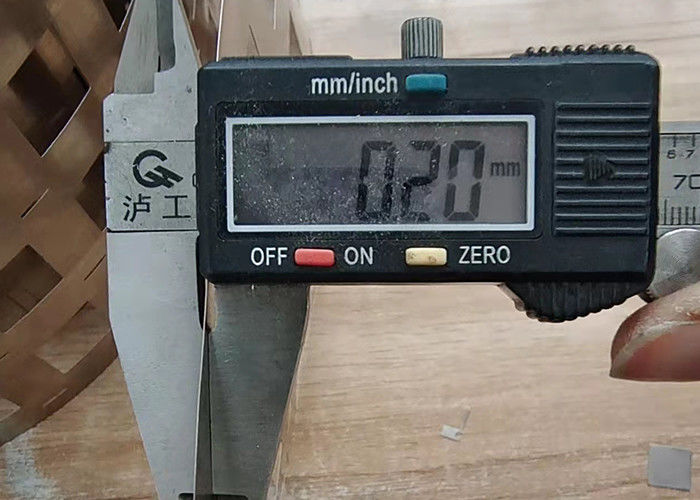

• Strip thickness: 0.1 / 0.15 / 0.2 mm (0.2 mm as specified)
• Width: 5-200 mm standard (per catalog); battery strip width series 2-15 mm; custom per drawing
• Pitch distance: 19.5 mm for 18650 pack assembly

• Density: 8.908 g/cm³
• Melting point: 1435-1446 °C
• Curie temperature: 358 °C
• Electrical resistivity: 0.096 μΩ·m (20 °C)
• Tensile strength: ≥462 MPa (annealed)
• Elongation: ≥35% (annealed)
• Hardness: 90-120 HB

• ASTM B162 — nickel and nickel alloy plate, sheet and strip
• GB/T 2072-2020 — nickel and nickel alloy strip
• EN 10204 3.1 mill test certificates accompany shipments

1. Manufacturing nickel-cadmium batteries
2. Nickel-hydrogen batteries
3. Lithium cells
4. Assembled battery packs
5. Industries of electric tools and special lights
6. Lithium battery pack spot welding

CHANGZHOU DLX ALLOY CO., LTD. was established in 2002 and holds the ISO9001 International Quality Management System Certificate and SGS Certificate. The factory owns a complete production line for nickel and nickel alloy products, including melting, casting, rolling, drawing, annealing and inspection, with a rated capacity of 1,200 t/yr. Every batch of battery strip is composition-analysed and dimensionally gauged before shipment, with EN 10204 3.1 mill test certificates accompanying the material.

What does 0.2 mm strip offer over thinner gauges? 0.2 mm carries more current per strip than 0.15/0.1 mm while staying thin enough for clean spot welds — the balance most 18650 pack lines order.

Can this strip be used for 18650 spot welding? Yes. 0.2 mm nickel strip with 19.5 mm pitch is set up for 18650 pack assembly; other pitch layouts per drawing.

How is purity guaranteed? Composition is verified against UNS N02200/N02201 per batch on our own line, and EN 10204 3.1 mill test certificates ship with the order.

Do you supply spools or cut lengths? Both. Spool package in carton box or coil package in polybag, per requirement.

What is the lead time for trial orders? 7-15 days from confirmed drawing; sample and trial quantities can be discussed per request.
