Product Details
Place of Origin: China
Brand Name: DLX
Model Number: ERNiCrMo-3
Payment & Shipping Terms
Minimum Order Quantity: 15
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Material: |
Ni, Mo, Cr |
Elongation: |
≥30% |
Density: |
8.40 G/cm3 |
Tensile Strength Rm N/mm²: |
114,000 Psi |
Yieldstrength R P0. 2 N/mm²: |
66,000 Psi |
Grade: |
AWS A5.14 ASME SFA 5.14 |
Melting Point: |
1250 |
Certificate: |
ISO 9001 |
Material: |
Ni, Mo, Cr |
Elongation: |
≥30% |
Density: |
8.40 G/cm3 |
Tensile Strength Rm N/mm²: |
114,000 Psi |
Yieldstrength R P0. 2 N/mm²: |
66,000 Psi |
Grade: |
AWS A5.14 ASME SFA 5.14 |
Melting Point: |
1250 |
Certificate: |
ISO 9001 |

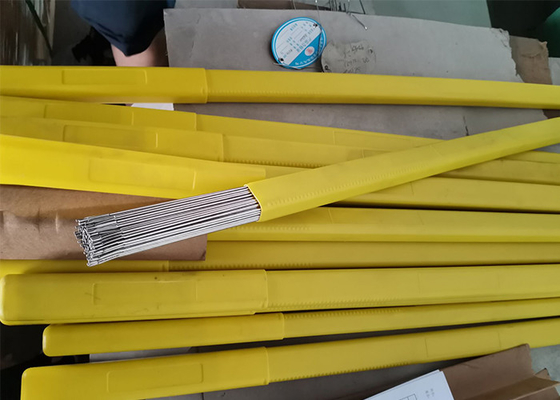

Nickel Based Welding Wire
ErNiCrMo-3 is a inconel 625 filling material. And ErNiCrMo-3 weldig rod is one of the most important item in the nickel welding material series. ERNiCrMo-3 is a nickel-chromium-molybdenum wire rod, it is primarily utilized for welding alloys 625, 601, 802, and 9% nickel using the gas arc metal and gas tungsten arc method of welding. Pinnacle Alloys ERNiCrMo-3 delivers moderate strengths, good fabricability, and superior corrosion resistance from cryogenic to elevated (up to 1800°F) temperatures. It also features good oxidation resistance. Pinnacle Alloys ERNiCrMo-3 is designed for welding NiCrMo to itself, to steel, to other nickel-base alloys, and for cladding steel with NiCrMo weld metal. This wire is well suited for welding piping systems and reactor components in the power generation industry and for high temperature service in a wide variety of other engineering applications including furnace equipment and petrochemical plants and in marine and offshore environments.
Nickel alloy Weling wire series:
ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCr-7,ERNiCu-7,ERNi-1, ER70S-6.
Standard: Conforms to Certification AWS A5.14 ASME SFA A5.14
Size: 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM
Form: MIG(15kgs/spool), TIG(5kgs/box),Strip
Nickel welding wire Nickel welding wire Nickel welding wire Nickel welding wire Nickel welding wire
| ErNiCrMo-3 Deposited Chemical Composition % (Typical) | ||
| C = 0.09 | Si = 0.12 | Ni = Balance |
| Mn = 0.05 | Cr = 21.9 | Nb/Ta = 3.65 |
| Fe = 0.62 | Mo = 8.70 | |
elding Wire Nickel Welding Wire Nickel Welding Wire
Size we could offer
| MIG | (15kg/spool), | Size |
| 0.8 1.2 2.4 3.2mm | ||
| TIG | (5kg/box),Strip |
Application
ERNiCrMo-3 (NA625) is used primarily for gas tungsten and gas metal arc and matching composition base metals. It is also used for welding Inconel 601 and Incoloy 800. It can be used to weld dissimilar metal combinations such as steel, stainless steel, Inconel and Incoloy alloys.
| Deposited All Weld Metal Properties % (AW) | |
| Tensile Strength | 114,000 psi |
| Yield Strength | 66,000 psi |
| Elongation | 35% |
