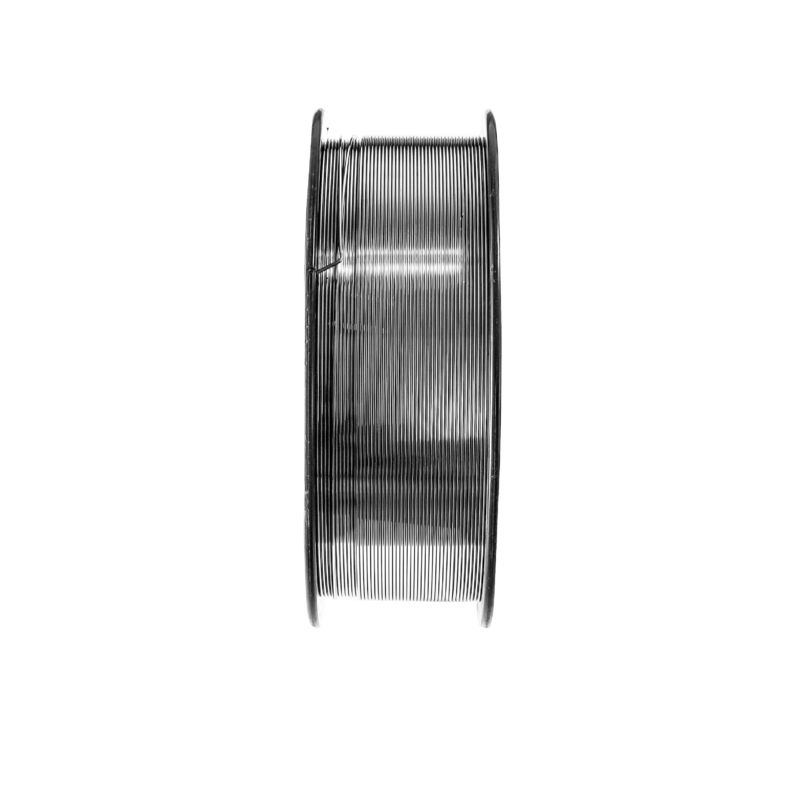

Inconel 625 Filling Wire AWS A5.14 ASME SFA 5.14 ERNiCrMo-3 1.6mm Nickel Welding Wire

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: ERNiCrMo-3

Payment & Shipping Terms

Minimum Order Quantity: 15

Packaging Details: Spool package with Carton box, Coil package with polybag

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Inconel 625 Filling Wire

,

ASME SFA 5.14 Nickel Welding Wire

,

ERNiCrMo-3 Nickel Welding Wire

Material:
Ni, Mo, Cr
Elongation:
≥30%
Density:
8.40 G/cm3
Tensile Strength Rm N/mm²:
114,000 Psi
Yieldstrength R P0. 2 N/mm²:
66,000 Psi
Certificates:
AWS A5.14 ASME SFA 5.14
Material:
Ni, Mo, Cr
Elongation:
≥30%
Density:
8.40 G/cm3
Tensile Strength Rm N/mm²:
114,000 Psi
Yieldstrength R P0. 2 N/mm²:
66,000 Psi
Certificates:
AWS A5.14 ASME SFA 5.14
Description
Inconel 625 Filling Wire AWS A5.14 ASME SFA 5.14 ERNiCrMo-3 1.6mm Nickel Welding Wire

Inconel 625 Filling Wire AWS A5.14 ASME SFA 5.14 ERNiCrMo-3 1.6mm Nickel Welding Wire 0

Inconel 625 Filling Wire AWS A5.14 ASME SFA 5.14 ERNiCrMo-3 1.6mm Nickel Welding Wire


Nickel Based Welding Wire



DLX alloy produce nickel based welding wire. And ErNiCrMo-3 which is inconel 625 filling wire, is one of the most important item in the serise. ERNiCrMo-3 is a nickel-chromium-molybdenum wire primarily utilized for welding alloys 625, 601, 802, and 9% nickel using the gas arc metal and gas tungsten arc method of welding. Pinnacle Alloys ERNiCrMo-3 delivers moderate strengths, good fabricability, and superior corrosion resistance from cryogenic to elevated (up to 1800°F) temperatures. It also features good oxidation resistance. Pinnacle Alloys ERNiCrMo-3 is designed for welding NiCrMo to itself, to steel, to other nickel-base alloys, and for cladding steel with NiCrMo weld metal. This wire is well suited for welding piping systems and reactor components in the power generation industry and for high temperature service in a wide variety of other engineering applications including furnace equipment and petrochemical plants and in marine and offshore environments.


Nickel alloy Weling wire series:


ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCr-7,ERNiCu-7,ERNi-1, ER70S-6.

Standard: Conforms to Certification AWS A5.14 ASME SFA A5.14

Size: 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM

Form: MIG(15kgs/spool), TIG(5kgs/box),Strip

Nickel welding wire    Nickel welding wire    Nickel welding wire   Nickel welding wire   Nickel welding wire


Chemical Properties of Nickel welding wire ERNiCrMo-3



el Welding Wire    Nickel W

ErNiCrMo-3 Deposited Chemical Composition % (Typical)
C = 0.09 Si = 0.12 Ni = Balance
Mn = 0.05 Cr = 21.9 Nb/Ta = 3.65
Fe = 0.62 Mo = 8.70

elding Wire    Nickel Welding Wire   Nickel Welding Wire


Size we could offer



MIG (15kg/spool), Size
    0.8 1.2 2.4 3.2mm
TIG (5kg/box),Strip





Application



ERNiCrMo-3 (NA625) is used primarily for gas tungsten and gas metal arc and matching composition base metals. It is also used for welding Inconel 601 and Incoloy 800. It can be used to weld dissimilar metal combinations such as steel, stainless steel, Inconel and Incoloy alloys.





Deposited All Weld Metal Properties % (AW)
Tensile Strength 114,000 psi
Yield Strength 66,000 psi
Elongation 35%

Inconel 625 Filling Wire AWS A5.14 ASME SFA 5.14 ERNiCrMo-3 1.6mm Nickel Welding Wire 1
