Electrical Heating Flat Wire CuNi44 CuNi Alloy Ribbon 420 Degree 0.1*3mm
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Nickel Copper | Nickel(Min) | 44% |
|---|---|---|---|
| Resistivity | 0.5 | Tensile Strength | 420 MPA |
| Density | 8.9 G/cm3 | Application | Heating, Resistivity |
| Condition | Hard / Soft | Sureface | Bright |
| Delivery Time | 7-20 Days | Maximum Temperature | 420℃ |
| Melting Point | 1100℃ | ||
| Highlight | 420 Degree CuNi Alloy Ribbon,Heating CuNi Alloy Ribbon,CuNi44 Electrical Heating Flat Wire |
||
Product Description

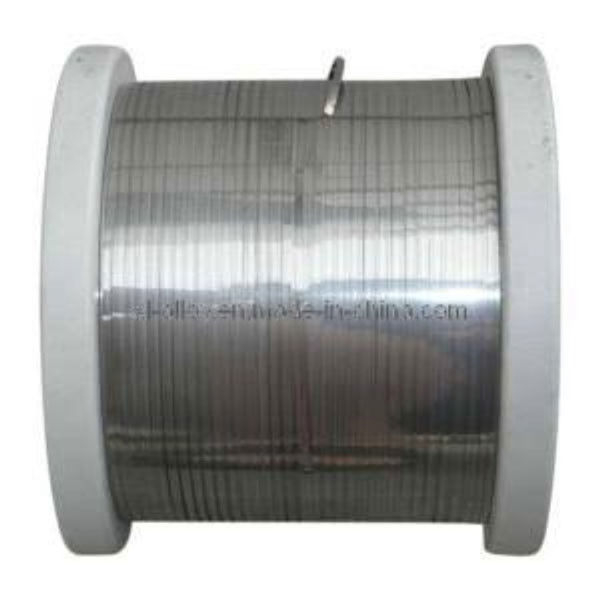

0.1*3mm Electrical Heating Flatg Wire 420 Degree CuNi44 CuNi Alloy Ribbon
CuNi Series
CuNi44 flat wire offers high electrical resistivity and very low temperature coefficient of resistance (TCR). Changzhou DLX alloy offer CuNi44 flat wire. CuNi44 flat wire was founded used in wire-wound precision resistors that can operate up to 400°C (750°F). This alloy is also capable of developing a high and constant electromotive force when coupled with copper. This property allows it to be used for thermocouple, thermocouple extension and compensating leads. It is easily soldered, welded, and offers good corrosion resistance against atmospheric conditions
Copper nickel alloy has low electric resisitance, good heat-resistant and corrosion-resistant, easy to be processed and lead welded. It is used to make the key components in the thermal overload relay, low resistance thermal circuit breaker, and the electrical appliances. It is also an important material for electrical heating cable.
- Copper Nickel alloy performance tables
| Properties/ Material | Resistivity | Max.working temperature | Tensile strength | Melting point | Density | TCR | EMF vs Cu |
| ( 200C μΩ.m) | ( 0C ) | ( Mpa ) | ( 0C ) | ( g/cm3 ) | x10-6 / 0C | (μV/ 0C) | |
| (20~600 0C) | (0~100 0C) | ||||||
| NC003 | 0.03 | 200 | 210 | 1085 | 8.9 | <100 | -8 |
| (CuNi1) | |||||||
| NC005 | 0.05 | 200 | 220 | 1090 | 8.9 | <120 | -12 |
| (CuNi2) | |||||||
| NC010 | 0.1 | 220 | 250 | 1095 | 8.9 | <60 | -18 |
| (CuNi6) | |||||||
| NC012 | 0.12 | 250 | 270 | 1097 | 8.9 | <57 | -22 |
| (CuNi8) | |||||||
| NC015 | 0.15 | 250 | 290 | 1100 | 8.9 | <50 | -25 |
| (CuNi10) | |||||||
| NC020 | 0.2 | 300 | 310 | 1115 | 8.9 | <30 | -28 |
| (CuNi14) | |||||||
| NC025 | 0.25 | 300 | 340 | 1135 | 8.9 | <25 | -32 |
| (CuNi19) | |||||||
| NC030 | 0.3 | 300 | 350 | 1150 | 8.9 | <16 | -34 |
| (CuNi23) | |||||||
| NC035 | 0.35 | 350 | 400 | 1170 | 8.9 | <10 | -37 |
| (CuNi30) | |||||||
| NC040 | 0.4 | 350 | 400 | 1180 | 8.9 | 0 | -39 |
| (CuNi34) | |||||||
| NC050 | 0.5 | 400 | 420 | 1200 | 8.9 | <-6 | -43 |
| (CuNi44) |
- The Form we could offer
| Size Range | Wire | Ribbon | Strip | Rod | ||||
| dia 0.03-7.5mm | dia 8.0-12.0mm | (0.05-0.35)*(0.5-6.0)mm | (0.50-2.5)*(5-180)mm | 8-50mm |
||||
| Do you provide free samples? |
| Yes, we can provide a free sample for testing,buyer should bear all the shipping costs. |
| What is your payment terms? |
| T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal |
| We are doing the best to match your demand. |
| What is the lead time? |
| Usually sample lead time is 7 days after payment has been confirmed. |
| Normal order is 10-30days,it depends on customers' quantity. |
| Anyway,we try to offer good-quality products as soon as possible. |
