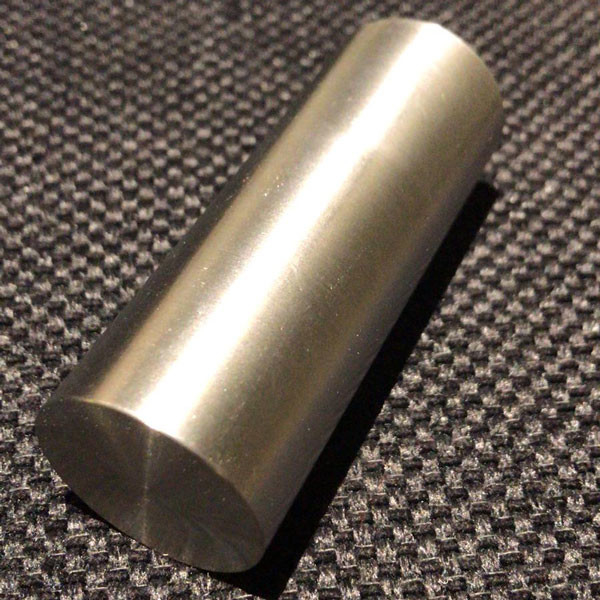

Nickel Copper Rod CuNi34 Nickel Copper Alloy 400 MPA From Factory
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Nickel Copper | Nickel(Min) | 34% |
|---|---|---|---|
| Resistivity | 0.4 | Tensile Strength | 400MPA |
| Density | 8.9 G/cm3 | Application | Heating, Resistivity |
| Condition | Hard / Soft | Sureface | Bright |
| Delivery Time | 7-20 Days | Maximum Temperature | 350℃ |
| Melting Point | 1180℃ | Name | Resistance Heating Strip |
| Highlight | CuNi34 Nickel Copper Alloy,40MPA Strength Nickel Copper Alloy,CuNi34 Nickel Copper Rod |
||
Product Description
Nickel Copper rod CuNi34 Nickel Copper Alloy 400 from factory.
- CuNi Series
CuNi34 resistance alloy is a kind of copper nickel binary alloy, which is of low temperature coefficient of resistance. And it is applied to manufacture rheostat, shunt, controller and other low voltage electrical components with a maximum operating temperature of 300°C. Due to its good heat coefficient, this alloy is widely used in low temperature heating cable of automobile heating cushion, railway snow melting, etc.
Copper nickel CuNi34 alloy has low electric resisitance, which have 34% nickel and balance is copper, it is good heat-resistant and corrosion-resistant, easy to be processed and lead welded. It is used to make the key components in the thermal overload relay, low resistance thermal circuit breaker, and the electrical appliances. It is also an important material for electrical heating cable.
CuNi34 Copper Nickel alloy resistance heating strip.
- Copper Nickel alloy performance tables
| Properties/ Material | Resistivity | Max.working temperature | Tensile strength | Melting point | Density | TCR | EMF vs Cu |
| ( 200C μΩ.m) | ( 0C ) | ( Mpa ) | ( 0C ) | ( g/cm3 ) | x10-6 / 0C | (μV/ 0C) | |
| (20~600 0C) | (0~100 0C) | ||||||
| NC003 | 0.03 | 200 | 210 | 1085 | 8.9 | <100 | -8 |
| (CuNi1) | |||||||
| NC005 | 0.05 | 200 | 220 | 1090 | 8.9 | <120 | -12 |
| (CuNi2) | |||||||
| NC010 | 0.1 | 220 | 250 | 1095 | 8.9 | <60 | -18 |
| (CuNi6) | |||||||
| NC012 | 0.12 | 250 | 270 | 1097 | 8.9 | <57 | -22 |
| (CuNi8) | |||||||
| NC015 | 0.15 | 250 | 290 | 1100 | 8.9 | <50 | -25 |
| (CuNi10) | |||||||
| NC020 | 0.2 | 300 | 310 | 1115 | 8.9 | <30 | -28 |
| (CuNi14) | |||||||
| NC025 | 0.25 | 300 | 340 | 1135 | 8.9 | <25 | -32 |
| (CuNi19) | |||||||
| NC030 | 0.3 | 300 | 350 | 1150 | 8.9 | <16 | -34 |
| (CuNi23) | |||||||
| NC035 | 0.35 | 350 | 400 | 1170 | 8.9 | <10 | -37 |
| (CuNi30) | |||||||
| NC040 | 0.4 | 350 | 400 | 1180 | 8.9 | 0 | -39 |
| (CuNi34) | |||||||
| NC050 | 0.5 | 400 | 420 | 1200 | 8.9 | <-6 | -43 |
| (CuNi44) |
- The Form we could offer
| Size Range | Wire | Ribbon | Strip | Rod | ||||
| dia 0.03-7.5mm | dia 8.0-12.0mm | (0.05-0.35)*(0.5-6.0)mm | (0.50-2.5)*(5-180)mm | 8-50mm |
||||
| Do you provide free samples? |
| Yes, we can provide a free sample for testing,buyer should bear all the shipping costs. |
| What is your payment terms? |
| T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal |
| We are doing the best to match your demand. |
| What is the lead time? |
| Usually sample lead time is 7 days after payment has been confirmed. |
| Normal order is 10-30days,it depends on customers' quantity. |
| Anyway,we try to offer good-quality products as soon as possible. |
