Product Details
Place of Origin: China
Brand Name: DLX
Model Number: CuNi10
Payment & Shipping Terms
Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Material: |
Nickel Copper |
Nickel(Min): |
10% |
Resistivity: |
0.15 |
Tensile Strength: |
290MPA |
Density: |
8.9 G/cm3 |
Application: |
Heating, Resistivity |
Condition: |
Hard / Soft |
Sureface: |
Bright |
Delivery Time: |
7-20 Days |
Maximum Temperature: |
250℃ |
Melting Point: |
1100℃ |
Material: |
Nickel Copper |
Nickel(Min): |
10% |
Resistivity: |
0.15 |
Tensile Strength: |
290MPA |
Density: |
8.9 G/cm3 |
Application: |
Heating, Resistivity |
Condition: |
Hard / Soft |
Sureface: |
Bright |
Delivery Time: |
7-20 Days |
Maximum Temperature: |
250℃ |
Melting Point: |
1100℃ |

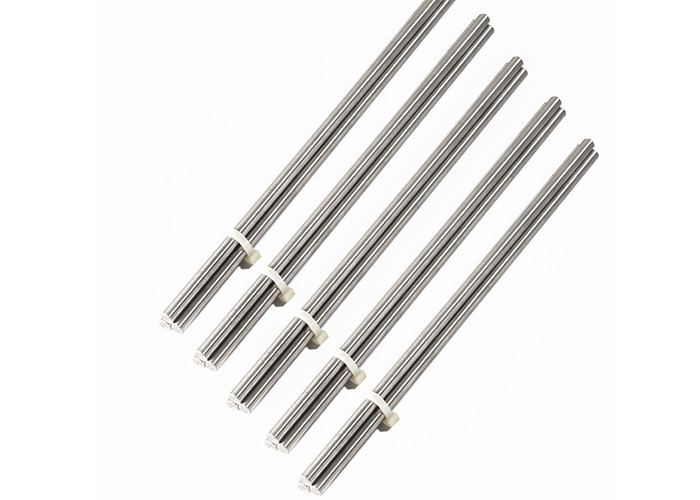

CuNi10 C70700 copper-nickel rod is a copper-nickel alloy formulated for primary forming into wrought products. Cited properties are appropriate for the annealed condition. CuNi10 is the EN chemical designation for this material. C70700 is the UNS number.
It has a moderately low tensile strength among the wrought copper-nickels in the database.
The graph bars on the material properties cards below compare C70700 copper-nickel to: wrought copper-nickels (top), all copper alloys (middle), and the entire database (bottom). A full bar means this is the highest value in the relevant set. A half-full bar means it's 50% of the highest, and so on.
| Properties/ Material | Resistivity | Max.working temperature | Tensile strength | Melting point | Density | TCR | EMF vs Cu |
| ( 200C μΩ.m) | ( 0C ) | ( Mpa ) | ( 0C ) | ( g/cm3 ) | x10-6 / 0C | (μV/ 0C) | |
| (20~600 0C) | (0~100 0C) | ||||||
| NC003 | 0.03 | 200 | 210 | 1085 | 8.9 | <100 | -8 |
| (CuNi1) | |||||||
| NC005 | 0.05 | 200 | 220 | 1090 | 8.9 | <120 | -12 |
| (CuNi2) | |||||||
| NC010 | 0.1 | 220 | 250 | 1095 | 8.9 | <60 | -18 |
| (CuNi6) | |||||||
| NC012 | 0.12 | 250 | 270 | 1097 | 8.9 | <57 | -22 |
| (CuNi8) | |||||||
| NC015 | 0.15 | 250 | 290 | 1100 | 8.9 | <50 | -25 |
| (CuNi10) | |||||||
| NC020 | 0.2 | 300 | 310 | 1115 | 8.9 | <30 | -28 |
| (CuNi14) | |||||||
| NC025 | 0.25 | 300 | 340 | 1135 | 8.9 | <25 | -32 |
| (CuNi19) | |||||||
| NC030 | 0.3 | 300 | 350 | 1150 | 8.9 | <16 | -34 |
| (CuNi23) | |||||||
| NC035 | 0.35 | 350 | 400 | 1170 | 8.9 | <10 | -37 |
| (CuNi30) | |||||||
| NC040 | 0.4 | 350 | 400 | 1180 | 8.9 | 0 | -39 |
| (CuNi34) | |||||||
| NC050 | 0.5 | 400 | 420 | 1200 | 8.9 | <-6 | -43 |
| (CuNi44) |
| Size Range | Wire | Ribbon | Strip | Rod | ||||
| dia 0.03-7.5mm | dia 8.0-12.0mm | (0.05-0.35)*(0.5-6.0)mm | (0.50-2.5)*(5-180)mm | 8-50mm |
||||
CHANGZHOU DLX ALLOY COMPANY was establish in 2016,our factory established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate.Our factory is becoming a high-tech company,We are professional in researching and producing special alloy material.The production process include melting,drawing,heat treatment,finishing and testing.We offer super alloy,welding wire,corrosion resistance alloy,precision alloy,FeCrAl alloy,NiCr alloy,CuNi alloy,in the form of wire,strip,ribbon,bar,tube,plate and etc.The administrative principle of our company is "intensifying inner supervision, complying with technical process and quality control, continuously adopting new technology to ensure the product quality". We employ some senior engineers to instruct technology, apply new technology and research new products. Our operation principle is "Quality first, Customer first". All the staff of our company would like to provide high quality and reasonably priced products for clients at home and abroad, and to make your products more competitive.
