Type E Thermocouple Bare Wire

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: Type E Thermocouple Wire

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: Spool package with Carton box, Coil package with polybag

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

EP Thermocouple Bare Wire

,

0.1mm Thermocouple Wire Types

,

Type E Thermocouple Bare Wire

Product Name:
Thermocouple Bare Wire
Color:
Bright
Certificate:
ISO9001
Temperature Range:
-454 To 1600F (-270 To 870C)
EMF Tolerance:
+/- 1.7C Or +/- 0.5%
Grade:
IEC854-1/3
Positive:
Ni-Cr
Negative:
Cu-Ni
Special Limits Of Error:
+/- 1.0C Or 0.4%
Product Name:
Thermocouple Bare Wire
Color:
Bright
Certificate:
ISO9001
Temperature Range:
-454 To 1600F (-270 To 870C)
EMF Tolerance:
+/- 1.7C Or +/- 0.5%
Grade:
IEC854-1/3
Positive:
Ni-Cr
Negative:
Cu-Ni
Special Limits Of Error:
+/- 1.0C Or 0.4%
Description

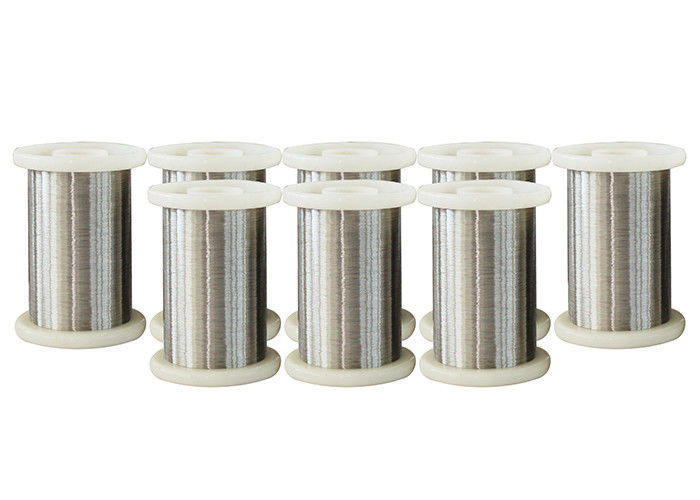

Type E Thermocouple Bare Wire



Type E Thermocouple Bare Wire 0





  • Thermocouple Wire

NiCr- CuNi thermocouple wire (type E) is also named NiCr-Constantan thermocouple wire. It has a stronger signal & higher accuracy than the Type K or Type J at moderate temperature ranges of 1,000F and lower. The type E is also more stable than the type K, which adds to its accuracy.

Type E thermocouple has the largest EMF output and highest sensitivity, so it is ideal for measuring small temperature change. It also has good stability in the low temperature range up to 300ºC, and good property of anti-corrosion in humidity atmosphere. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in reducing atmosphere and atmosphere with sulphur gases.

Thermocouple ribbon wire, rods, strips can be supplied according to your request.

  • Type E chemical composition:

Positive leg NiCr (EP) is Ni: Cr≈90:10; negative leg Constantan (EN) isCu: Ni≈ 55%: 45%



  • Type E Accuracy (whichever is greater):
  • Standard: +/- 1.7C or +/- 0.5%
  • Special Limits of Error: +/- 1.0C or 0.4%



  • Type E Temperature Range:
  • Thermocouple grade wire, -454 to 1600F (-270 to 870C)
  • Extension wire, 32 to 392F (0 to 200C)

Consideration for bare wire type E thermocouple applications:



  • In oxiding or inert atmospheres the operating range is roughly –418F to 1,652F (–250C to 900C).
  • Heating - Gas burners for ovens
  • Cooling - Freezers
  • Engine protection - Temperatures and surface temperatures
  • High temperature control - Iron casting

  • Thermocouple Wire
Code Wires component of the thermocouple
  +Positive leg -Negative leg
N Ni-cr-si (NP) Ni-si-magnesium (NN)
K Ni-Cr (KP) Ni-Al(Si) (KN)
E Ni-Cr (EP) Cu-Ni<constantan> (EN)
J Iron (JP) Cu-Ni<constantan> (JN)
T Copper (TP) Cu-Ni<constantan> (TN)
B Platinum  Rhodium-30% Platinum Rhodium-6%
R Platinum Rhodium-13% Platinum
S Platinum Rhodium-10% Platinum



  • ​Standards
ASTM ANSI IEC DIN BS NF JIS GOST
(American Society for Testing and Materials) E 230 (American National Standard Institute) MC 96.1 (European Standard by the International Electrotechnical Commission 584)-1/2/3 (Deutsche Industrie Normen) EN 60584 -1/2 (British Standards) 4937.1041, EN 60584 - 1/2 (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 (Japanese Industrial Standards) C 1602 - C 1610 (Unification of the Russian Specifications) 3044






  • Size range

Wire: 0.1 to 8.0 mm.



  • Working temperature:



Diameter/mm Long time Working Short period Working
temperature/°C temperature/°C
0.3,0.5 350 450
0.8,1.0,1.2 450 550
1.6,2.0 550 650
2.5 650 750
3.2 750 900

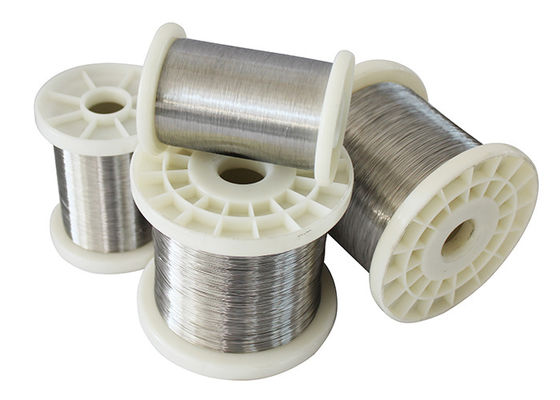

Type E Thermocouple Bare Wire 1Type E Thermocouple Bare Wire 2Type E Thermocouple Bare Wire 3Type E Thermocouple Bare Wire 4



contact us:

email:sales7@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Product Available Size:
Wires: Diameter0.5~7.5mm

Rods:Diameter8.0~200mm
Strip:Thickness0.5~2.5mm, Width5~180mm
Plate: Customized
Tube: Customized
