345 MPA Hastelloy B3 Seamless tube N10675 Hastelloy Material pipe

Product Details

Place of Origin: China

Brand Name: DLX

Certification: CE,ROHS

Model Number: Hastelloy B-3

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: Hastelloy B-3 Tubing packed in woodencase

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

345 MPA Hastelloy Material

,

Hastelloy B3 Nickel Base Alloy

,

N10675 Hastelloy Material

Material:
Ni Cr Mo
Elongation:
30 %
Brinell Hardness HB:
≤220
Density:
8.89 G/cm3
Tensile Strength Rm N/mm²:
760MPA
Yieldstrength R P0. 2 N/mm²:
345MPA
Electrical Resistivity(24℃)):
1.30 Microhm-m
Thermal Conductivity(32℃):
9.4 W/m-K
Model Number:
Hot Selling Nickel Based Alloy Hastelloy B-3 Alloy Seamless Tubing With Good Price
Material:
Ni Cr Mo
Elongation:
30 %
Brinell Hardness HB:
≤220
Density:
8.89 G/cm3
Tensile Strength Rm N/mm²:
760MPA
Yieldstrength R P0. 2 N/mm²:
345MPA
Electrical Resistivity(24℃)):
1.30 Microhm-m
Thermal Conductivity(32℃):
9.4 W/m-K
Model Number:
Hot Selling Nickel Based Alloy Hastelloy B-3 Alloy Seamless Tubing With Good Price
Description

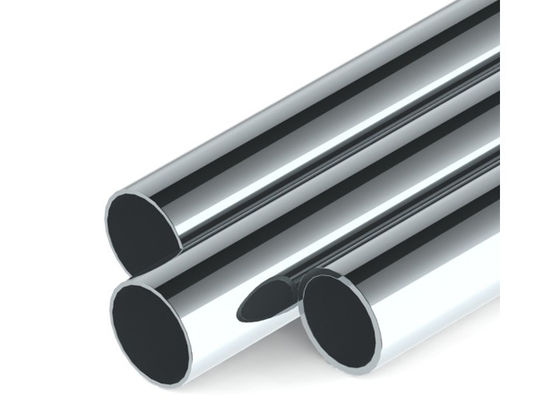

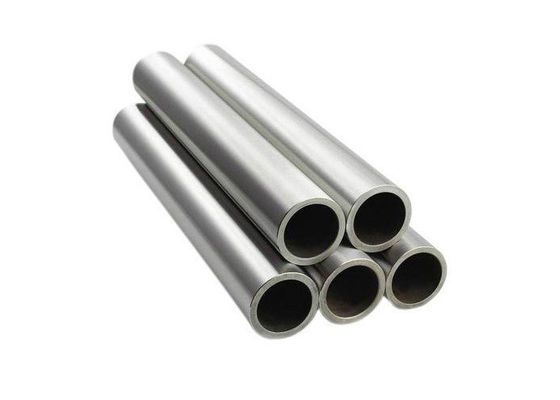

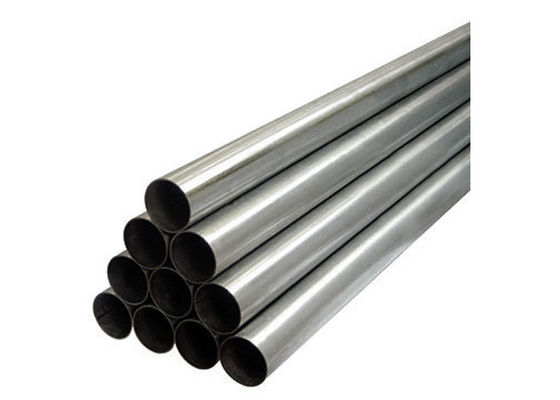

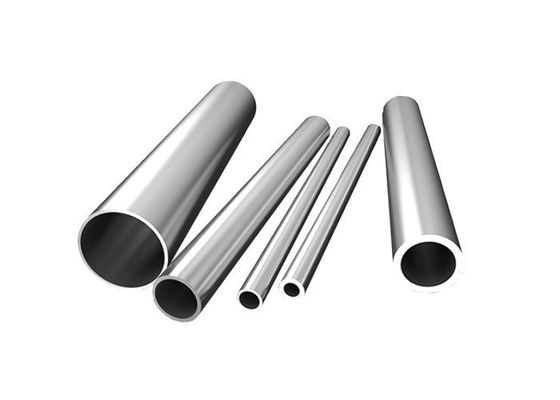

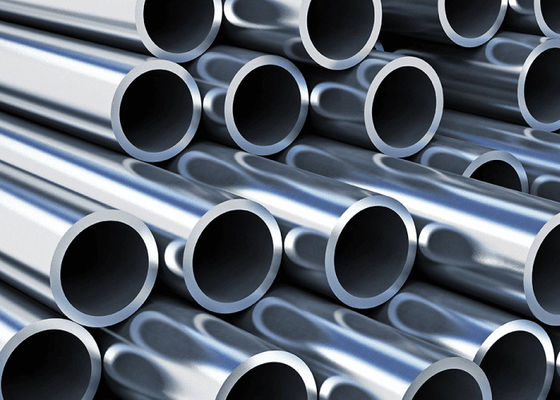

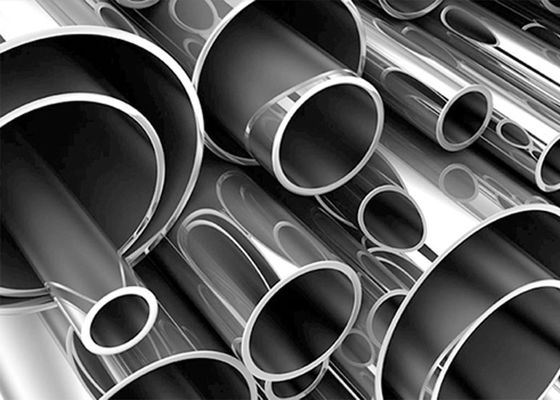

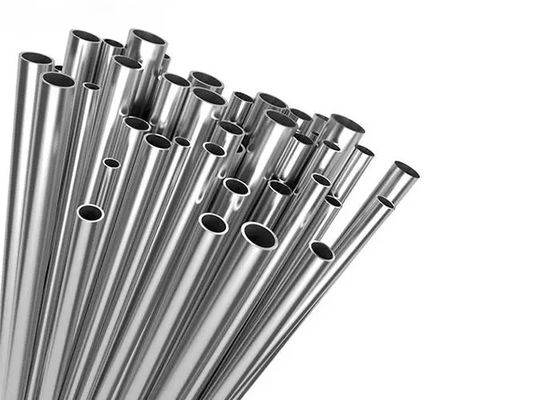

345 MPA Hastelloy B3 Seamless tube N10675 Hastelloy Material pipe

345 MPA Hastelloy B3 Seamless tube N10675 Hastelloy Material pipe 0

345 MPA Hastelloy B3 Seamless tube N10675 Hastelloy Material pipe 1


  • Nickel Based corrosion resistance Alloy

HASTELLOY® B-3® alloy (UNS N10675) exhibits extremely high resistance to pure hydrochloric, hydrobromic, and sulfuric acids. Furthermore, it has greatly improved structural stability compared with previous B-type alloys, leading to fewer concerns during welding, fabrication, and service.

Like other nickel alloys (in the mill annealed condition), it is ductile, can be formed and welded, and resists stress corrosion cracking in chloride-bearing solutions. Also, it is able to withstand fluoride-bearing media and concentrated sulfuric acid, both of which result in damage to zirconium alloys.

HASTELLOY® B-3® alloy is available in the form of plates, sheets, strips, billets, bars, wires, pipes, tubes, and coated electrodes. It is used in numerous chemical process industry (CPI) applications, especially in the construction of reaction vessels for pure, reducing acid service.






  • Chemical Properties of Hastelloy B-3 Tubing

Hastelloy Alloy Ni Cr Co Mo FE W Mn C V P S Si
B-3 ≥65 1Max 3Max ≤28.5 1.5 Max ≤3 1.0 Max 0.01 Max   -   0.1Max



Hastelloy Grade
Hastelloy B
Hastelloy C-276
Hastelloy C-4
Hastelloy C-22
Hastelloy C-59
Hastelloy G
Hastelloy X
Corresponding brand
N10001/ NS321/ ONl65Mo28Fe5/ VN12MV
N10276 / 2.4819/ NS334 / CW12MW
N06455 / 2.4610I 00Cr16Ni65Mo16Ti / NS335
N06022 / 2.4602/ NS3308
N06059 / 2.4605/ NS3311 / Alloy59
N06007 / 2.4618/ NS3402
N06002 / 2.4665/ GH3536 / GH32
Chemical composition%
C≤
0.05
0.01
0.015
0.015
0.01
0.050
0.05-0.15
Mn≤
1
1
1
0.5
0.5
1.0-2.0
1.00
P≤
0.04
0.04
0.04
0.02
0.015
0.040
0.04
S≤
0.03
0.03
0.03
0.02
0.01
0.030
0.03
Si≤
1
0.08
0.08
0.08
0.01
1.00
1.00
Cr≤
≤1
14.5-16.5
14.0-18.0
14.0-18.0
22.0-24.0
21.0-23.5
20.5-23.0
Ni≤
the base
the base
the base
the base
the base
the base
the base
Mo
26.0-30.0
15.0-17.0
14.0-17.0
12.5-14.5
15.0-16.5
5.5-7.5
8.0-10.0
Cu




≤0.50
1.5-2.5

N

W:3.0-4.5

W:2.5-3.5

W:≤1.0
W:0.2-1.0
Nb





1.75-2.50

Other
V:0.20-0.40 Co:≤2.50 Fe:4.0-60.
V:≤0.35 Co:≤2.50 Fe:4.0-7.0
Ti:≤0.70 Co:≤2.0 Fe:≤3.0
V:≤0.35 Co:≤2.5 Fe:2.0-6.0
AI:0.10-0.40 Co:≤0.30 Fe:≤1.50
Co:≤2.5 Fe:≤18.0-21.0
Co:≤0.5-2.5 Fe:≤17.0-20.0



  • Application


Some typical applications are:

  • Strong oxidizers (such as ferric and cupric chlorides)
  • Hot contaminated media (organic and inorganic)
  • Chlorine
  • Formic and acetic acids
  • Acetic anhydride
  • Seawater and brine solutions

contact us:

email:sales7@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Product Available Size:
Wires: Diameter0.5~7.5mm

Rods:Diameter8.0~200mm
Strip:Thickness0.5~2.5mm, Width5~180mm
Plate: Customized
Tube: Customized



After sale service:
24 hours on for after sale service
