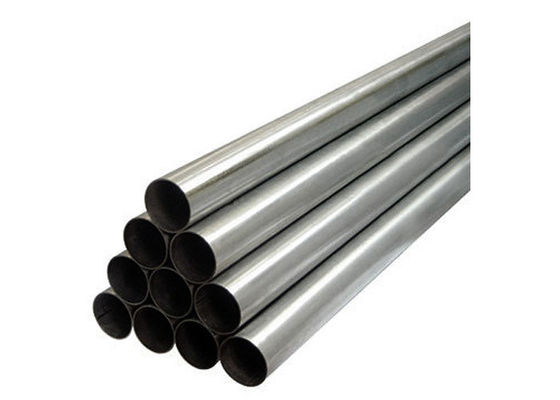

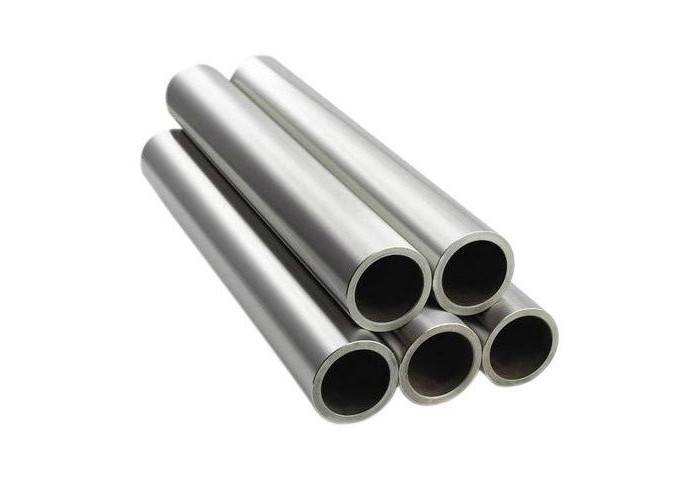

345 MPA Hastelloy B3 Seamless tube N10675 Hastelloy Material pipe

  • 345 MPA Hastelloy B3 Seamless tube N10675 Hastelloy Material pipe
  • 345 MPA Hastelloy B3 Seamless tube N10675 Hastelloy Material pipe
  • 345 MPA Hastelloy B3 Seamless tube N10675 Hastelloy Material pipe
  • 345 MPA Hastelloy B3 Seamless tube N10675 Hastelloy Material pipe
  • 345 MPA Hastelloy B3 Seamless tube N10675 Hastelloy Material pipe
  • 345 MPA Hastelloy B3 Seamless tube N10675 Hastelloy Material pipe
  • 345 MPA Hastelloy B3 Seamless tube N10675 Hastelloy Material pipe
  • 345 MPA Hastelloy B3 Seamless tube N10675 Hastelloy Material pipe
Place of Origin China
Brand Name DLX
Certification CE,ROHS
Minimum Order Quantity 5
Packaging Details Hastelloy B-3 Tubing packed in woodencase
Delivery Time 5-21 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number Hot Selling Nickel Based Alloy Hastelloy B-3 Alloy Seamless Tubing With Good Price Material Ni Cr Mo
Elongation 30 % Brinell Hardness HB ≤220
Density 8.89 G/cm3 Tensile Strength Rm N/mm² 760MPA
Yieldstrength R P0. 2 N/mm² 345MPA Electrical Resistivity（24℃）） 1.30 Microhm-m
Thermal Conductivity（32℃） 9.4 W/m-K
Highlight

345 MPA Hastelloy Material

,

Hastelloy B3 Nickel Base Alloy

,

N10675 Hastelloy Material
Leave a Message
Product Description

345 MPA Hastelloy B3 Seamless tube N10675 Hastelloy Material pipe 0

345 MPA Hastelloy B3 Seamless tube N10675 Hastelloy Material pipe 1

  • Nickel Based corrosion resistance Alloy

HASTELLOY® B-3® alloy (UNS N10675) exhibits extremely high resistance to pure hydrochloric, hydrobromic, and sulfuric acids. Furthermore, it has greatly improved structural stability compared with previous B-type alloys, leading to fewer concerns during welding, fabrication, and service.

Like other nickel alloys (in the mill annealed condition), it is ductile, can be formed and welded, and resists stress corrosion cracking in chloride-bearing solutions. Also, it is able to withstand fluoride-bearing media and concentrated sulfuric acid, both of which result in damage to zirconium alloys.

HASTELLOY® B-3® alloy is available in the form of plates, sheets, strips, billets, bars, wires, pipes, tubes, and coated electrodes. It is used in numerous chemical process industry (CPI) applications, especially in the construction of reaction vessels for pure, reducing acid service.





  • Chemical Properties of Hastelloy B-3 Tubing

​

Hastelloy Alloy Ni Cr Co Mo FE W Mn C V P S Si
B-3 ≥65 1Max 3Max ≤28.5 1.5 Max ≤3 1.0 Max 0.01 Max   -   0.1Max



Hastelloy Grade
Hastelloy B
Hastelloy C-276
Hastelloy C-4
Hastelloy C-22
Hastelloy C-59
Hastelloy G
Hastelloy X
Corresponding brand
N10001/ NS321/ ONl65Mo28Fe5/ VN12MV
N10276 / 2.4819/ NS334 / CW12MW
N06455 / 2.4610I 00Cr16Ni65Mo16Ti / NS335
N06022 / 2.4602/ NS3308
N06059 / 2.4605/ NS3311 / Alloy59
N06007 / 2.4618/ NS3402
N06002 / 2.4665/ GH3536 / GH32
Chemical composition%
C≤
0.05
0.01
0.015
0.015
0.01
0.050
0.05-0.15
Mn≤
1
1
1
0.5
0.5
1.0-2.0
1.00
P≤
0.04
0.04
0.04
0.02
0.015
0.040
0.04
S≤
0.03
0.03
0.03
0.02
0.01
0.030
0.03
Si≤
1
0.08
0.08
0.08
0.01
1.00
1.00
Cr≤
≤1
14.5-16.5
14.0-18.0
14.0-18.0
22.0-24.0
21.0-23.5
20.5-23.0
Ni≤
the base
the base
the base
the base
the base
the base
the base
Mo
26.0-30.0
15.0-17.0
14.0-17.0
12.5-14.5
15.0-16.5
5.5-7.5
8.0-10.0
Cu




≤0.50
1.5-2.5

N

W:3.0-4.5

W:2.5-3.5

W:≤1.0
W:0.2-1.0
Nb





1.75-2.50

Other
V:0.20-0.40 Co:≤2.50 Fe:4.0-60.
V:≤0.35 Co:≤2.50 Fe:4.0-7.0
Ti:≤0.70 Co:≤2.0 Fe:≤3.0
V:≤0.35 Co:≤2.5 Fe:2.0-6.0
AI:0.10-0.40 Co:≤0.30 Fe:≤1.50
Co:≤2.5 Fe:≤18.0-21.0
Co:≤0.5-2.5 Fe:≤17.0-20.0



  • ​Application


Some typical applications are:

  • Strong oxidizers (such as ferric and cupric chlorides)
  • Hot contaminated media (organic and inorganic)
  • Chlorine
  • Formic and acetic acids
  • Acetic anhydride
  • Seawater and brine solutions

contact us:

email:sales7@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Product Available Size:
Wires: Diameter0.5~7.5mm

Rods:Diameter8.0~200mm
Strip:Thickness0.5~2.5mm, Width5~180mm
Plate: Customized
Tube: Customized


After sale service:
24 hours on alibaba for after sale service
Alibaba trade assurance
